7.22. For the PKE and PKE CO2 condensers, install the anti-vibration device and the silencer on the delivery line
between the compressor and the condenser.
7.23. For installations at height use lifting platforms, portable or fixed scaffolding.
7.24. To protect against indirect contacts, the installer must provide a differential switch upstream of the machine
panel with adequate electrical characteristics (value in A referring to the electrical data of the installed fans, see
point 0 or label on the fan).
7.25. On request, the models can be supplied with exchangers and fan motors other than the standard.

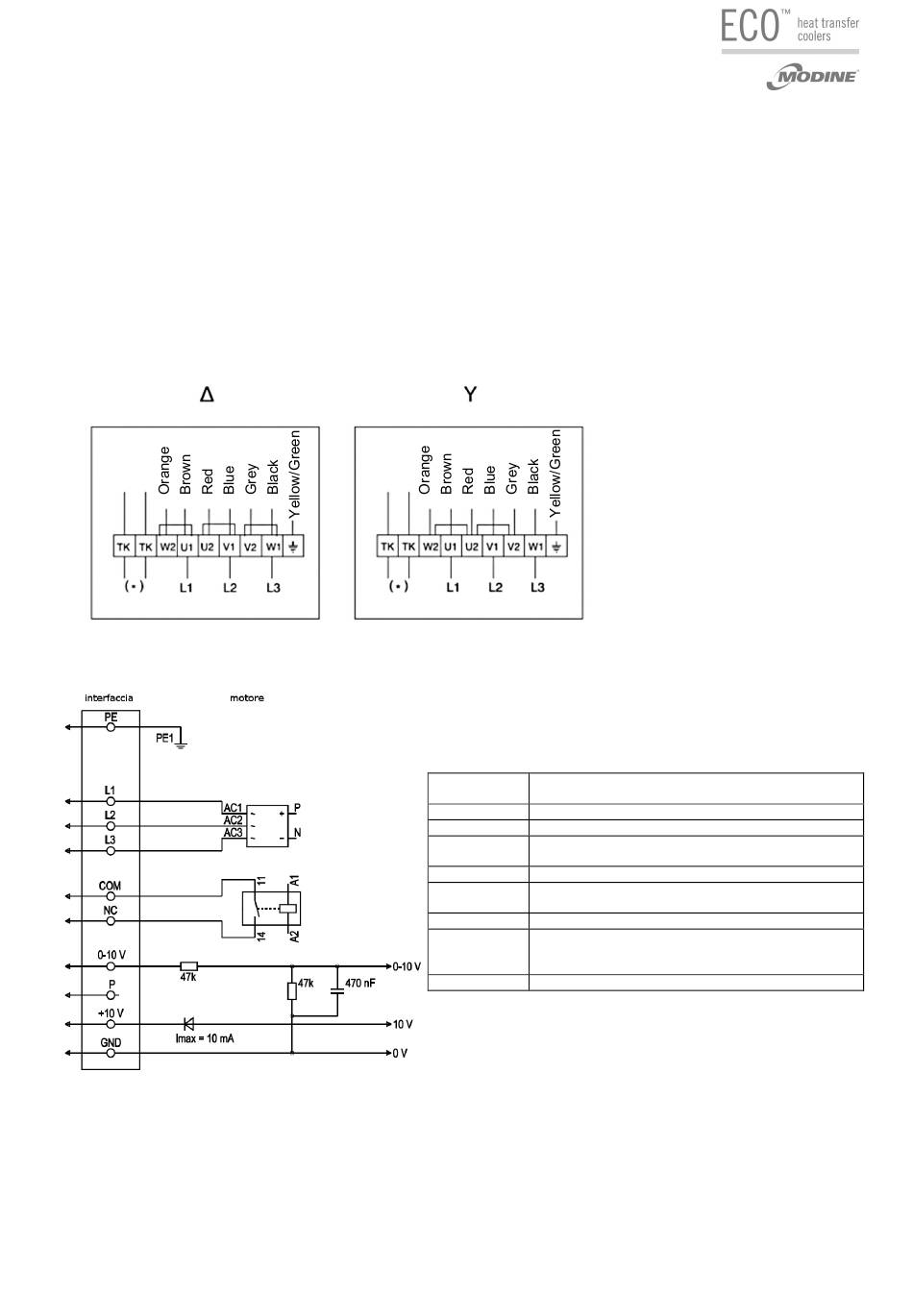

8. Wiring diagrams

8.1. Power supply: 400V/3/50 Hz – standard motor
(Set)
8.2. Power supply: 400V/3/50 Hz – EC motor
www.modine.com
(To set)
Symbol on Function
fan motor
PE Earthing
L1, L2, L3 Power supply, phase, 50 Hz
COM Floating state contact, fault opening (2A, max 250
VAC, min. 10 mA, AC1)
NC Floating status contact, fault opening
0...10 V Control input / value of the input current sensor 0-10
VDC, impedance 100 kΩ, SELV
P Do not use
+10 V Fixed voltage output 10 VDC (±3%), max. 10 mA,
power supply for external devices (e.g. potentiometer),
SELV
GND Earth interface control reference, SELV
29
