7. Installation conditions

7.1. The model described in this manual is a component of a system and must only be installed by authorised
personnel.
7.2. Accessibility to the model, for any type of intervention, must only be performed by personnel qualified to
operate the system, according to current regulations.
7.3. The place of installation must comply with any requirements of local legislation.
7.4. The support structure must be adapted to the weight of the model when it is operational (see 17 Caratteristiche
dimensionali).
7.5. This unit must not be installed in an atmosphere that is explosive, acidic or not compatible with its component
materials (copper, aluminium, steel, polymers).
7.6. The unit is not designed to support other machines or structures.
7.7. Installation must be carried out preferably outside. Where the model is to be installed inside, it is essential to
provide an air intake that excludes any additional static pressure.
7.8. The unit must be firmly anchored to the support base, use all the fixing points. To prevent the transmission of
noise, use shock absorbers if necessary.
7.9. Provide adequate space for air circulation and maintenance. Avoid conveying the air flow directly onto surfaces
with reflective power or that in any case could raise the noise level.
7.10. The minimum space between models can be reduced depending on the positioning height with the use of a
support platform or other means. For installations that are different from what is indicated, contact the
Manufacturer. On the side of the technical compartment, provide sufficient space for complete opening of the

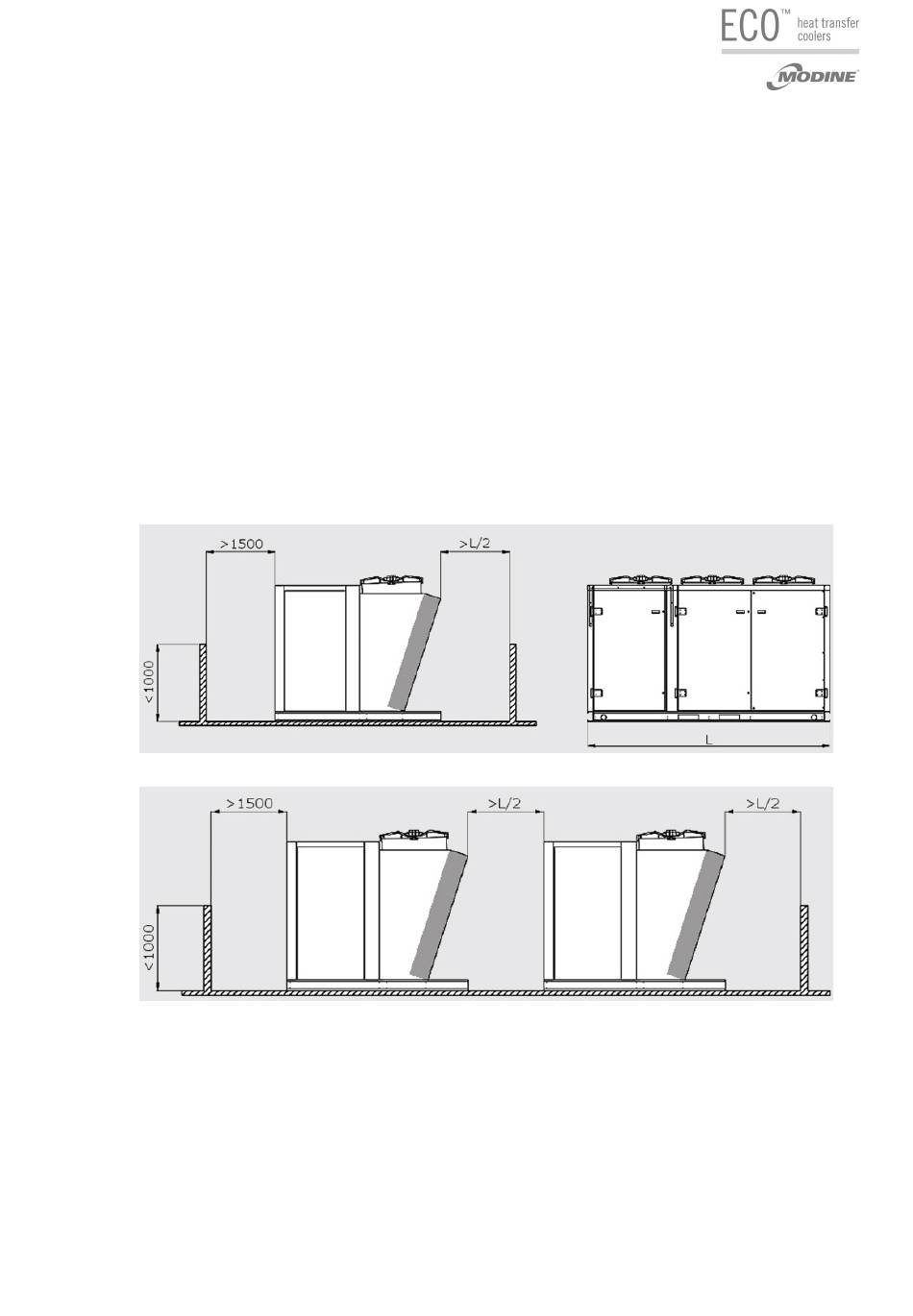

doors. Ref. the following figures:
