Mounting the Device / Montage de l'Appareil

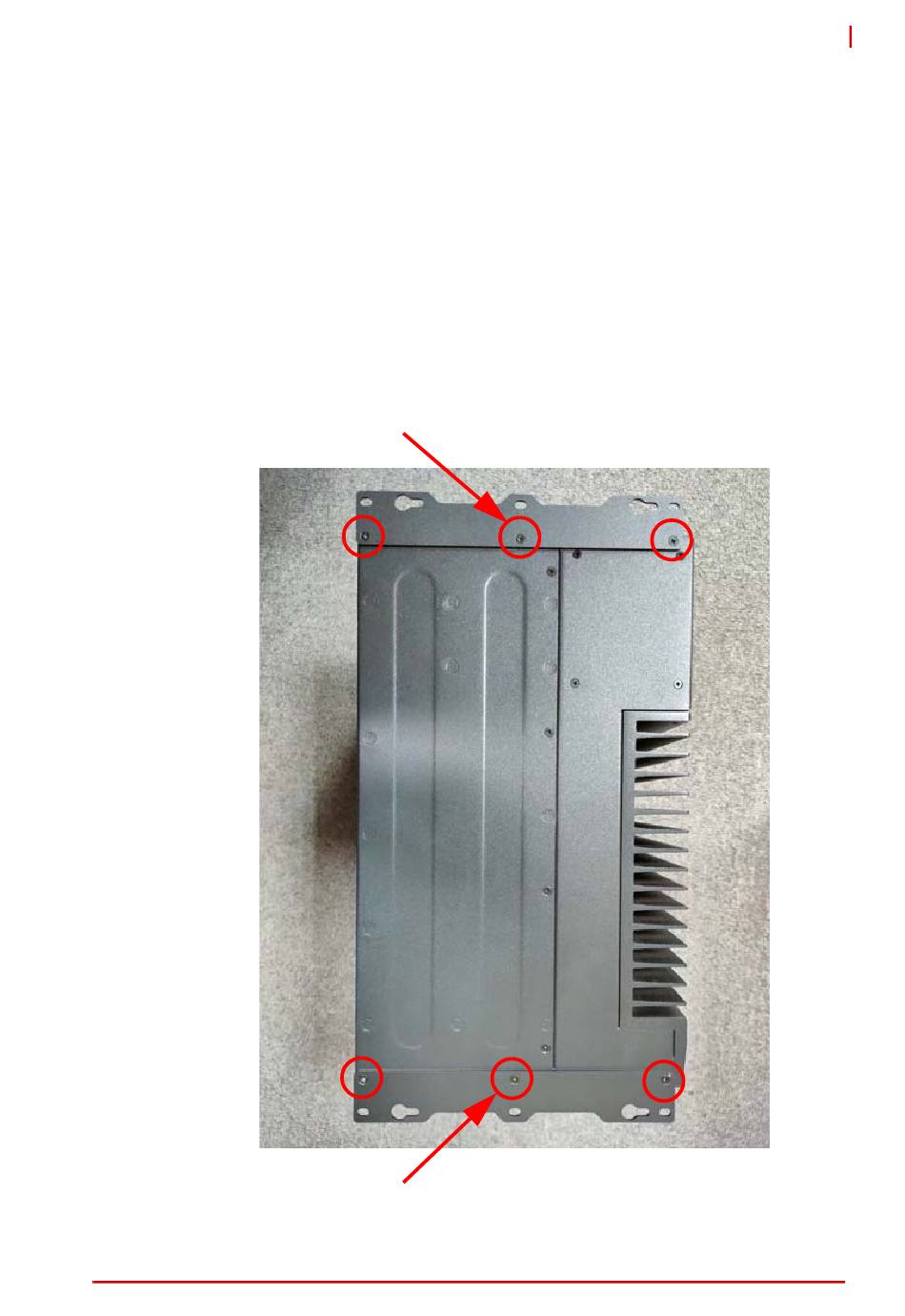

Mount the device to a wall using the 4 keyhole openings indicated
or the 6 mounting holes circled in red, according to the spacing
dimensions of the holes in the bracket as shown in Figure 2-1
DLAP-8000 Front View (including wall-mount brackets).
Montez l'appareil sur un mur à l'aide des 4 ouvertures de trou de
serrure en fonction des dimensions d'espacement des trous dans
le support, comme indiqué dans Figure 2-1 DLAP-8000 Front
View (including wall-mount brackets).
keyhole opening
keyhole opening
