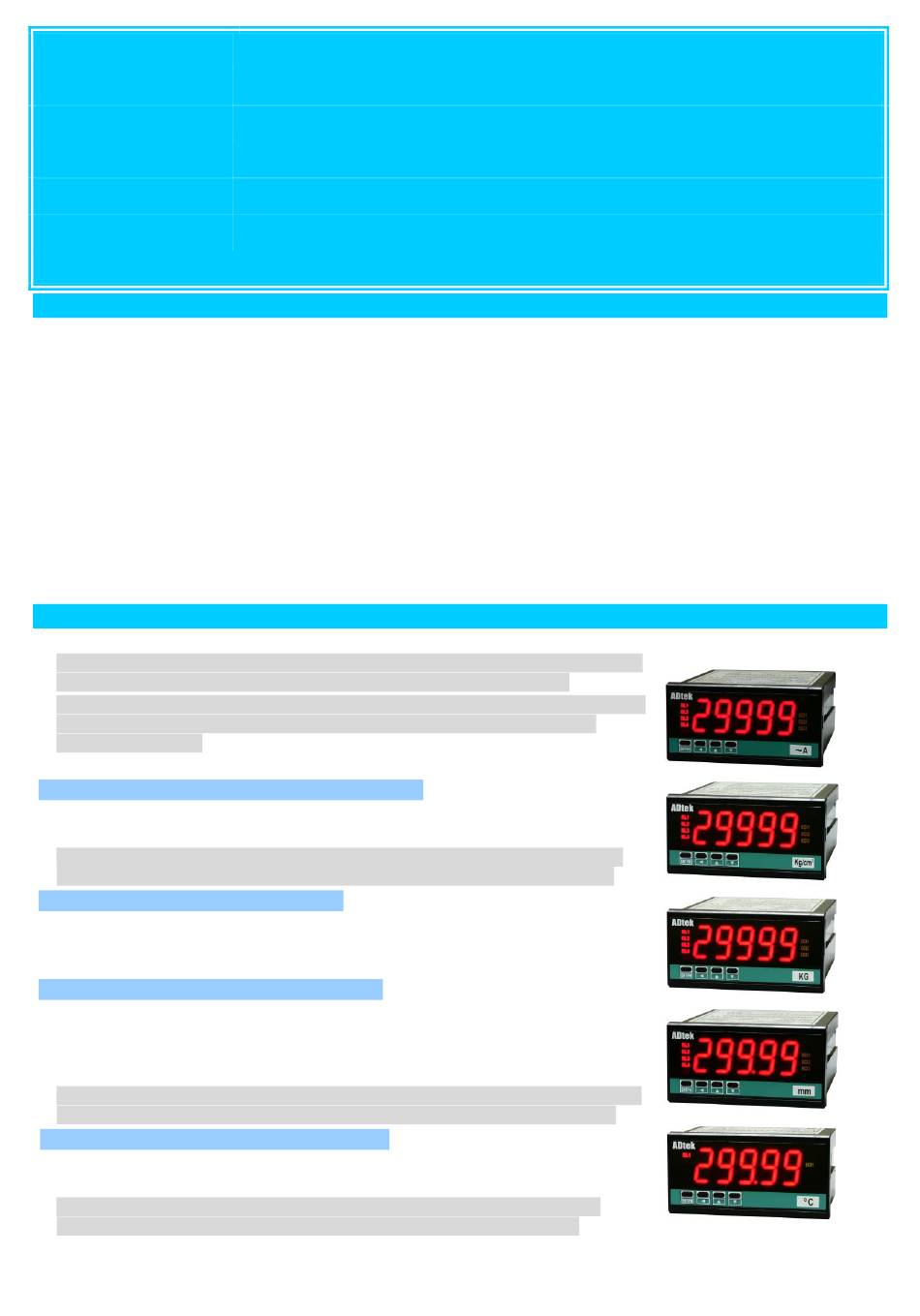

DESCRIPTIONS
■
For the various measuring requirement, the CS2 series' R&D is destined with high accuracy
measurement, display, control and communication (Modbus RTU mode) such as AC
voltage/Current, DC process signal 0~10V/4~20mA(with square root function), Strain
Gauge/Load Cell, Potentiometer, Resistance, Temperature and so on.
The CS2 series designed with 3 external control input (ECI) in standard version and the extra
optional with 4 Relay, 1 Analogue and 1 RS485 port which it's available all-in-one together with
the display functions, beside above it still available extra the programmable such as max/mini
hold, PV hold, relative PV.....etc that it's more flexible & more useful in the testing equipment
field & others' territories.
In applications, they are not only indicators but also the I/O interfaces which it's compatible
with any systems. ADtek built-in the innovation concept for External Control input(ECI) and
Relay output similar as I/O module of PLC. It's very simply & easily to achieve remote monitoring
and control simultaneously.
■

FEATURES

●
User friendly, easily programmable operated smoothly by the front panel
●
3 external control inputs in standard for Relative PV(∆PV or Tare) / PV Hold /
Maximum or Minimum Hold / DI / Reset for Relay Energized Hold....
●
4 relay in option for Hi / Lo / Hi Latch / Lo Latch / Go / DO energized with Start
Delay / Hysteresis / Energized & De-energized Delay / Relay Energized
Hold..... functions
●
Analogue output and RS 485 communication port are optional.
[ CS2-VA VOLT / CURRENT METER RELAY ]
●
Measuring Voltage 0~600V or Current 0~10A ; DC / AC / TRMS
●
Accuracy: AC:  0.1% f.s.; DC:  0.04% f.s.; Display Range: -19999~+29999
●
4 banks pre-set in option for all relay functions are relative to 4 difference
scaling, and be selectable by 3 External Control Inputs (ECI) or front key.
[ CS2-PR DC SIGNAL INDICATOR ]
●
Measuring DC 0~10V or 0(4)~20 mA
indicator(input code: AV)
●
Accuracy:  0.04% f.s.; Display Range: -19999~+29999
[ CS2-SG STRAIN GAUGE INDICATOR ]
●
Measuring ranges of Load Cell or Strain Gauge from 0~1.0/~2.0/~4.0 mV/V or
0~10.0/~20.0/~40.0 mV/V and specified with excitation supply DC 5V or 10V,
40mA.
●
Accuracy:  0.04% f.s. ; Display Range: -19999~+29999
●
Field calibration of load cell or strain gauge to meet the system requirement
with high/low calibrations which it saved the test time and keep accuracy
[ CS2-PM POTENTIOMETER INDICATOR ]
●
Measuring Potentiometer 0~50Ω/~2.0KΩ; 0~2.0KΩ/~100.0KΩ (3 wires)
●
Accuracy:  0.04% f.s. ; Display Range: -19999~+29999
●
Field calibration of potentiometer to meet the system requirement with
high/low calibrations which it saved the test time and keep accuracy
VOLTAGE / CURRENT METER RELAY
DC SIGNAL (20mA/10V) INDICATORS
STRAIN GAUGE / LOAD CELL INDICATORS
POTENTIOMETER INDICATORS
RESISTANCE (2 W) INDICATORS
TEMPERATURE INDICATORS
