Applications; Function Define & Description; Character Symbol; Input & Scaling - ADTEK CS2-VA Operation Manual

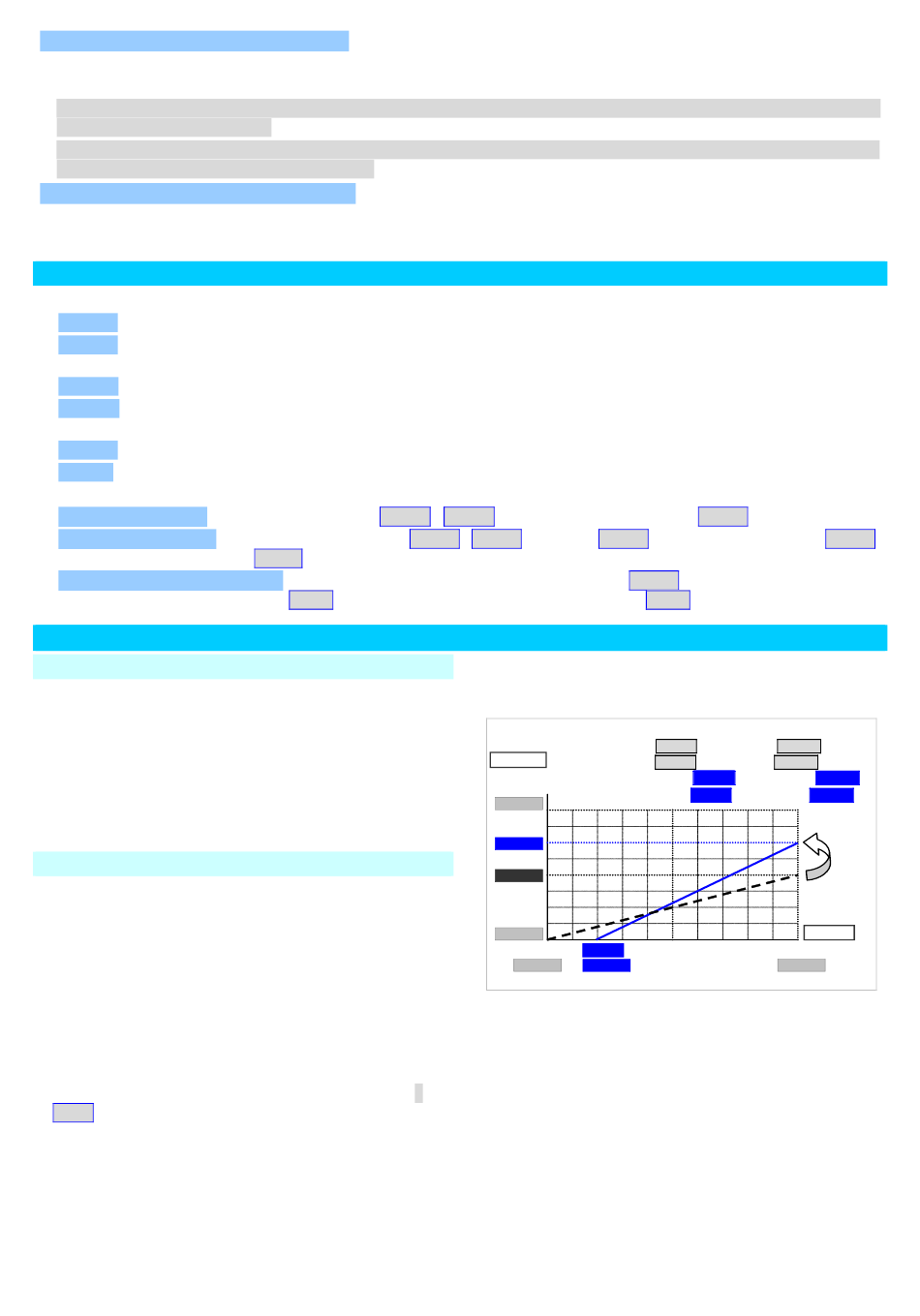

[ CS2-RS RESISTANCE INDICATOR ]
●
Measuring Resistance 0~200.00Ω/2000.0Ω/20.000KΩ/200.00KΩ (2 wires)
●
Accuracy:  0.04% f.s. ; Display Range: -19999~+99999
●
Field calibration of resistance to meet the system requirement with high/low calibrations which it saved the
test time and keep accuracy
●
4 banks pre-set in option for all relay functions are relative with 4 difference scaling, and be selectable by 3
External Control Inputs (ECI) or front key.
[ CS2-T TEMPERATURE INDICATOR ]
●
Measuring Pt100Ω; T/C: K,J,E,T(the range will be fix, pleases specified the exactly input type in ordering)
●
Accuracy: Pt100:  0.1%
■

APPLICATIONS


Models
●
CS2-VA Switch Boards / Motor Control / Machinery / Testing Equipments
●
CS2-PR Machinery Control / Process Control Systems for pressure, level,........sensing transducers
Automation System / Testing Equipments
●
CS2-SG Weighting indication, control and Alarm / Machinery Control / Tension and others test equipment
●
CS2-PM Position indication, control and Alarm / Machinery Control / Angle of Value Control / Tap of
transformer indication
●
CS2-RS Resistance test as like as coil of transformer or motor indication
●
CS2-T Temperature measuring

Functions
●
Safety & Protection Hi/Lo alarm and latch(hIhld / lOhld), Analogue output limited(aOlmt)
●
Testing & Measuring Maximum/Minimum hold(maXhd / miNhd), PV hold(pVhld), Relative PV/Tare/∆PV(reLpv),
Banks(bnk-_), Field calibration with sensor
●
Remote Monitoring & Control RS485 communication port, Remote display(rs485), Remote
monitoring(
FUNCTION DEFINE
■
■

Character Symbol

A b C d E F G H i J K L M
a b c d e f g h i j k l m
n o P q r S t U v W X y Z
n o p q r s t u v w x y z
1 2 3 4 5 6 7 8 9 0 / .
1 2 3 4 5 6 7 8 9 0 / .
■ Input & Scaling

Input Range
Programming range: 0.00~100.00% of input range
The meters had been set the input range as per
order code (ex. 0~10V or 4(0)~20mA) in factory. If the
meters requested to convert into difference inputs
ranges, the meters can be switched function [ aIlo]
and [ aIhi] in [input group] to meet the input signal.
For example:
The meter is 0~10Vdc input, and the signal from
sensor is 2~10Vdc. Please enter into the [input
group] to set [ aIlo] (Analogue input Low) to be
2)00% (10V x 20.00% = 2V), then the meter has been
converted the input range into 2~10Vdc and the all
relative parameters be processed by 2~10V.

Input type [aItyp] for CS2-PR
Programming range: Voltage:0~10V/0~5V/1~5V;
Current: 4~20mA/0~20mA/0~10mA
It supports dual type input 0~10V and 0(4)~20mA
between 3 terminals in one meter. Please specify the
2 / 41
; T/C:  0.2% f.s.; Display Range: -19999~+29999
f.s.
di) and Remote control for Relay energized(
CS2 SERIES –OPERATION MANUAL(EN)-A-2017-11-16
ordering code AV for input range. And, programming
the function [aItyp] to co-ordinate with the input range
and wiring terminals.
Default Input:
[ aIlo]:
[ lOsc]:
SCALE
Change to [ aIlo]:
[ lOsc]:
19(99
[ hIsc]
15)00
[ hIsc]
10)00
[ lOsc]
)00
2V
0V
%
)00 2)00 %
[ aIlo] [ aIlo]
*Lower resolution display may be caused by the setting
the less decimal point such as "100". If requested high
resolution must with more decimal point such as
"100.00" .

Scaling Function [ lOsc] & [ hIsc]
Programming range: -19999~+29999counts
Setting the [ lOsc](Low scale) and [ hIsc] (High
scale) in [input group] which are relative to input
signal. Reverse scaling will be set too. Please refer to
the below figures as following,
do)
)00%, [ aIhi]: 10)00%
[ hIsc]: 10)00
)00,
2)00%, [ aIhi]: 10)00%
[ hIsc]:
)00, 15)00
INPUT
5V 10V
%
50.00% 10)00
[ aIhi]
