Chapter 3 Meter display and operation
This chapter describes how to use the operation buttons to access the required power
measurement information and how to set the relevant parameters correctly.

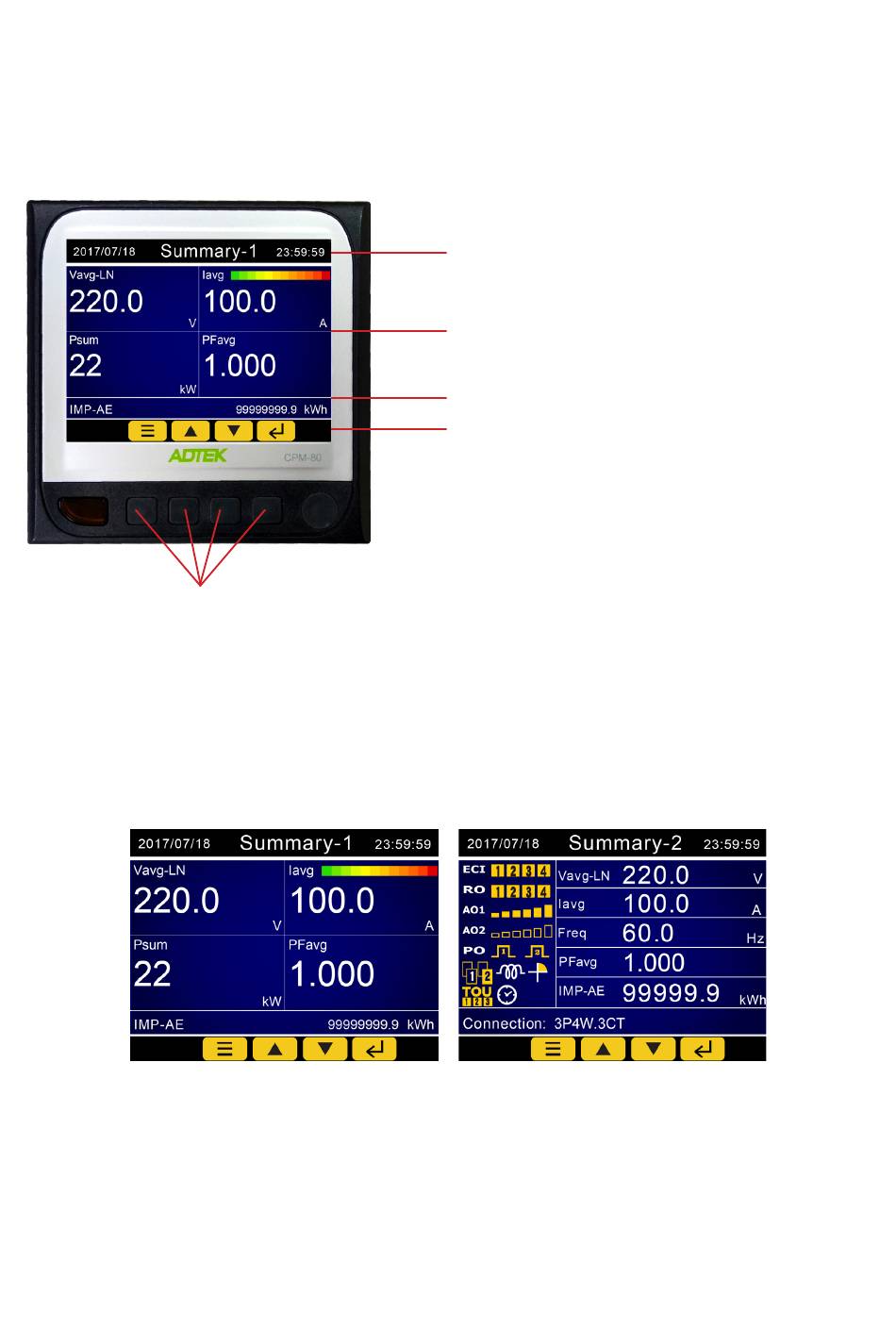

3.1 Meter panel
⑤
3.2 Display screen and operation buttons description
CPM-80 series display panel is a 3.5 inch TFT-LCD, the resolution is 320 * 240 pixels.The
display content and the way will be flexible according to the actual needs. There are four
physical buttons at the bottom of the panel.
1. Screen title
2. Main display area
①
3. Notification area
4. Buttons symbols
5. Operation buttons
②
③
④
8
