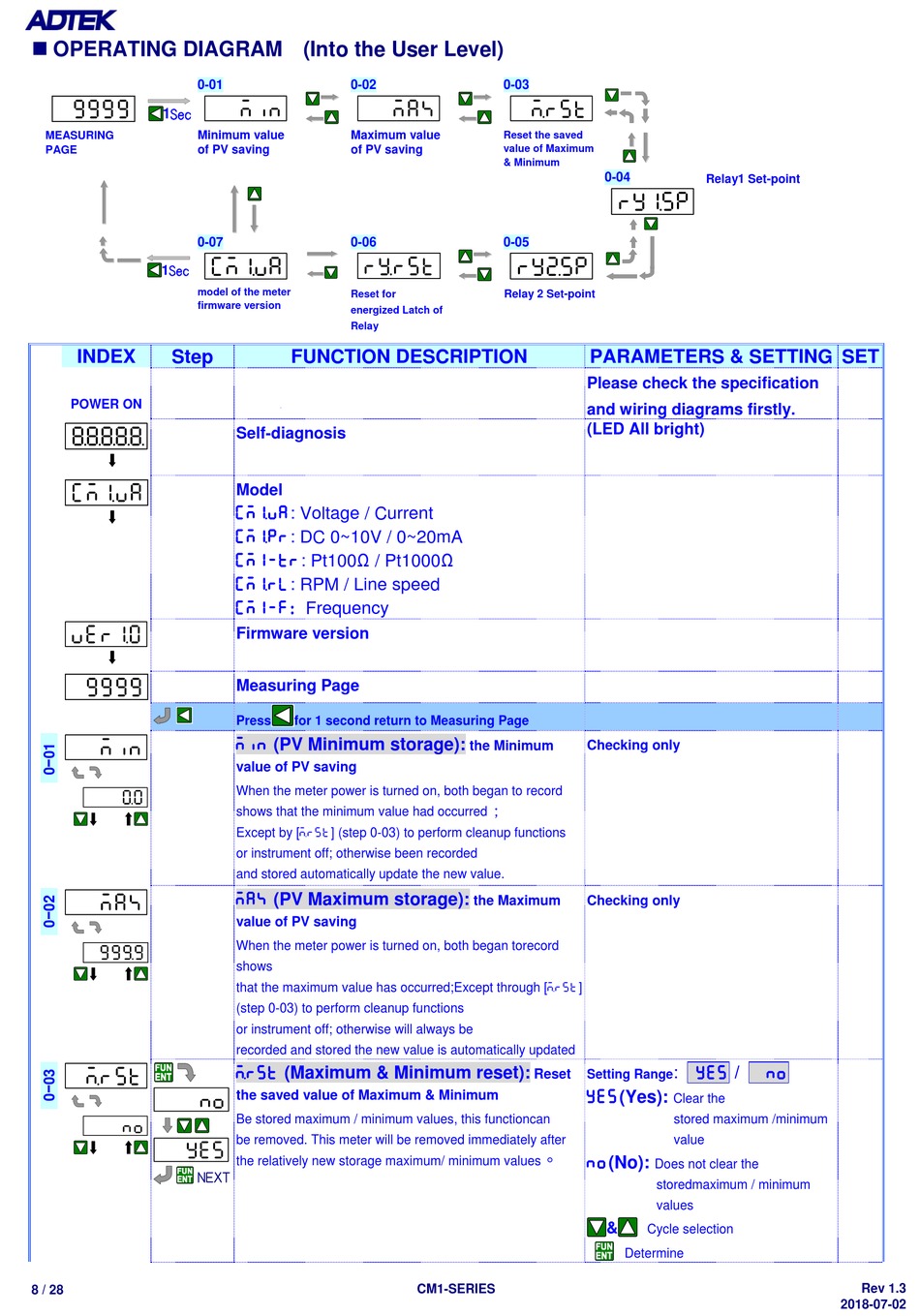

Function Description - ADTEK CM1 Series User Manual


OPERATING DIAGRAM (Into the User Level)
0-01
9999
MEASURING Minimum value
PAGE of PV saving
0-07
model of the meter
firmware version
INDEX Step
POWER ON
cm!va
Mrst
no
no
yes
8 / 28
0-02
Maximum value
of PV saving
0-06
Reset for
energized Latch of
Relay

FUNCTION DESCRIPTION

Self-diagnosis
Model
cm!va: Voltage / Current
cm!pr: DC 0~10V / 0~20mA
cm1-tr: Pt100Ω / Pt1000Ω
cm!rl: RPM / Line speed
cm1-f: Frequency
Firmware version
Measuring Page
Press for 1 second return to Measuring Page
min (PV Minimum storage):
value of PV saving
When the meter power is turned on, both began to record
shows that the minimum value had occurred
Except by [Mrst] (step 0-03) to perform cleanup functions
or instrument off; otherwise been recorded
and stored automatically update the new value.
max (PV Maximum storage):
value of PV saving
When the meter power is turned on, both began torecord
shows
that the maximum value has occurred;Except through [Mrst]
(step 0-03) to perform cleanup functions
or instrument off; otherwise will always be
recorded and stored the new value is automatically updated
Mrst (Maximum & Minimum reset):
the saved value of Maximum & Minimum
Be stored maximum / minimum values, this functioncan
be removed. This meter will be removed immediately after
the relatively new storage maximum/ minimum values
0-03
Reset the saved
value of Maximum
& Minimum
0-05
Relay 2 Set-point
PARAMETERS & SETTING SET
Please check the specification
and wiring diagrams firstly.
(LED All bright)
the Minimum Checking only
；
the Maximum Checking only
Reset
Setting Range
yes(Yes):
。
no(No):
CM1-SERIES
0-04
Relay1 Set-point
ry!sp
yes / no
:
Clear the
stored maximum /minimum
value
Does not clear the
storedmaximum / minimum
values
&
Cycle selection
Determine
Rev 1.3
2018-07-02
