5.4. Wiring instructions for ADT-8969G1 with

ADT-9170 terminal block

5.4.1. 25-pin DB port definition
Refer to 3.1.1 25-pin DB port definition
DB port.

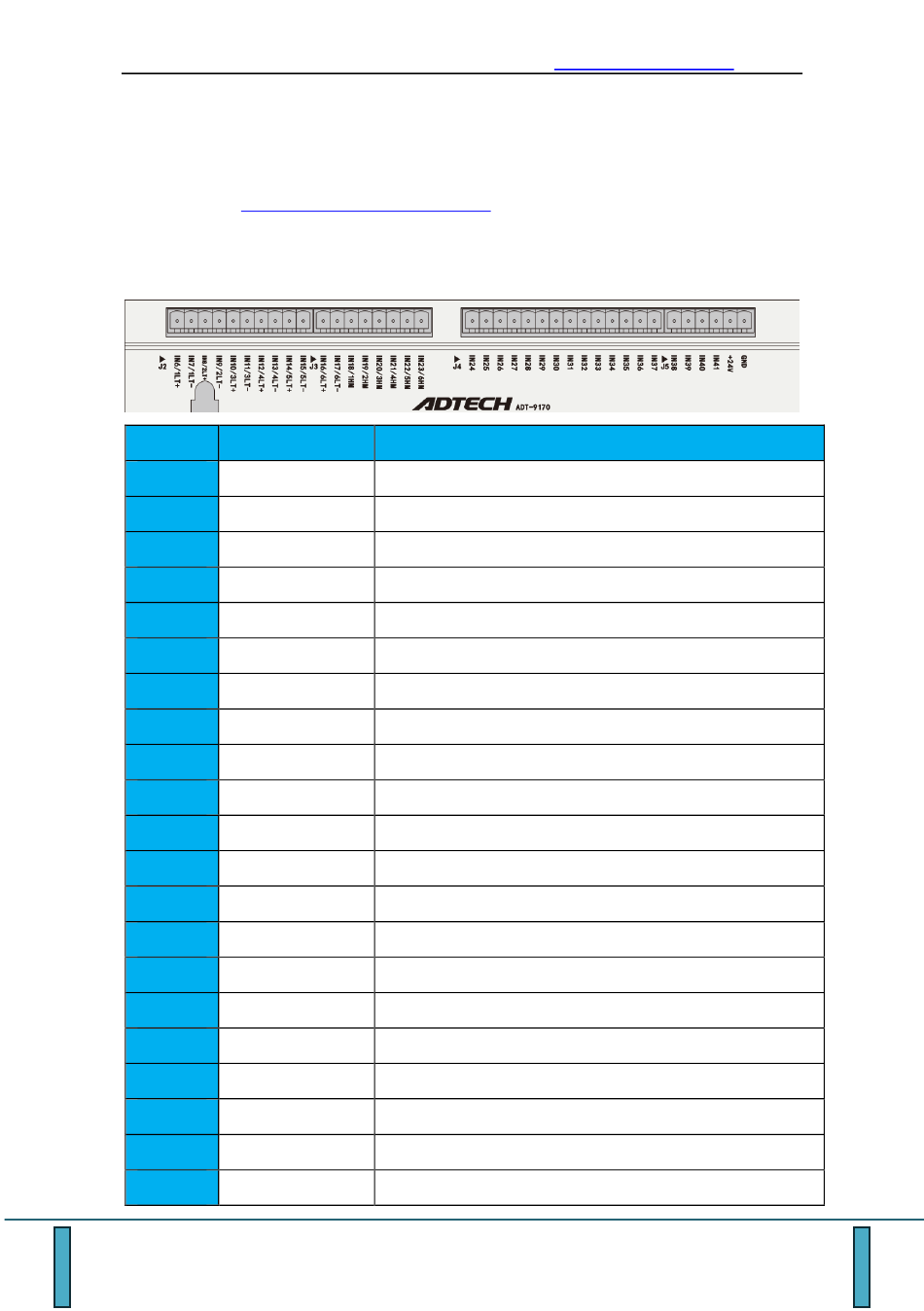

5.4.2. Definitions of J2/J3/J4/J5 input ports
Pin No. Pin definitions
1 IN6/XLT+
2 IN7/XLT-
3 IN8/YLT+
4 IN9/YLT-
5 IN10/ZLT+
6 IN11/ZLT-
7 IN12/ALT+
8 IN13/ALT-
9 IN14/BLT+
10 IN15/BLT-
11 IN16/CLT+
12 IN17/CLT-
13 IN18/XHM
14 IN19/YHM
15 IN20/ZHM
16 IN21/AHM
17 IN22/BHM
18 IN23/CHM
19 IN24/EMGN
20 IN25
21 IN26
http://www.adtechcn.com
for the definition of ADT-9170 25-pin
X positive limit signal, can be used as general input
X negative limit signal, can be used as general input
Y positive limit signal, can be used as general input
Y negative limit signal, can be used as general input
Z positive limit signal, can be used as general input
Z negative limit signal, can be used as general input
A positive limit signal, can be used as general input
A negative limit signal, can be used as general input
B positive limit signal, can be used as general input
B negative limit signal, can be used as general input
C positive limit signal, can be used as general input
C negative limit signal, can be used as general input
X home signal (STOP0), can be used as general input
Y home signal (STOP0), can be used as general input
Z home signal (STOP0), can be used as general input
A home signal (STOP0), can be used as general input
B home signal (STOP0), can be used as general input
C home signal (STOP0), can be used as general input
Emergency stop signal, can be used as general input
General input
General input
