ADT-09 Series Motion Control Card

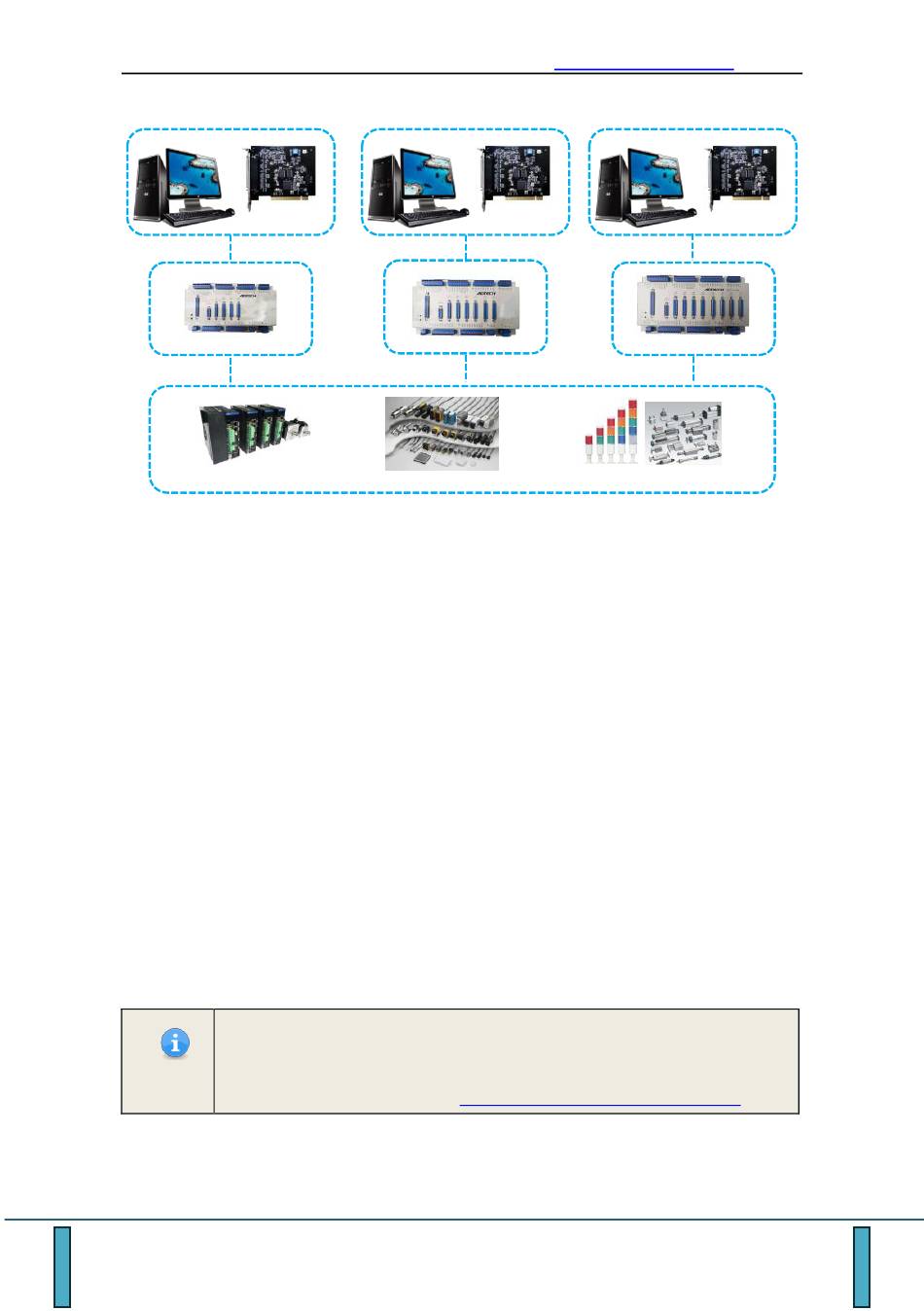

2.3. System structure diagram

ADT-8949C1/H1
ADT-9140 Terminal board
Servo/Stepper + motor

2.4. Steps to install control card

2.4.1.

Board installation

1) Power off the computer (Note: turn off the main power of ATX);
2) Open the back cover of the computer case;
3) Select an unoccupied PCI slot and insert the motion control board;
4) Make sure the gold finger of the motion control board is completely
inserted into the PCI slot, and tighten the screws.
When the 09 Series Motion Control Card is properly installed, the green LED
on the back of the board will light up, which means that the FPGA chip is running
normally. When the red LED on the front will light up, it means that the board is
powered normally. If the above LED indicators do not work, there may be a hardware
failure occurred in the board. Please return it to the factory for repair or replacement
timely.
2.4.2.

One-click setup of driver

Most users choose to install the control card driver by "one-click
setup of driver". When the driver cannot be installed by one-click
Tips
setup, you can consider the
The "One-click setup of driver" of 09 Series Motion Control Card is as follows:
Open the computer case, insert the control card, then power on and enter the
1.
windows system;
http://www.adtechcn.com
ADT-8969C1/H1
ADT-9160 Terminal board
Input devices
2.4.3 Manual Installation of Driver.
ADT-8989C1/H1
ADT-9180 Terminal board
Output devices
9
