ADT-09 Series Motion Control Card
3.1.5.

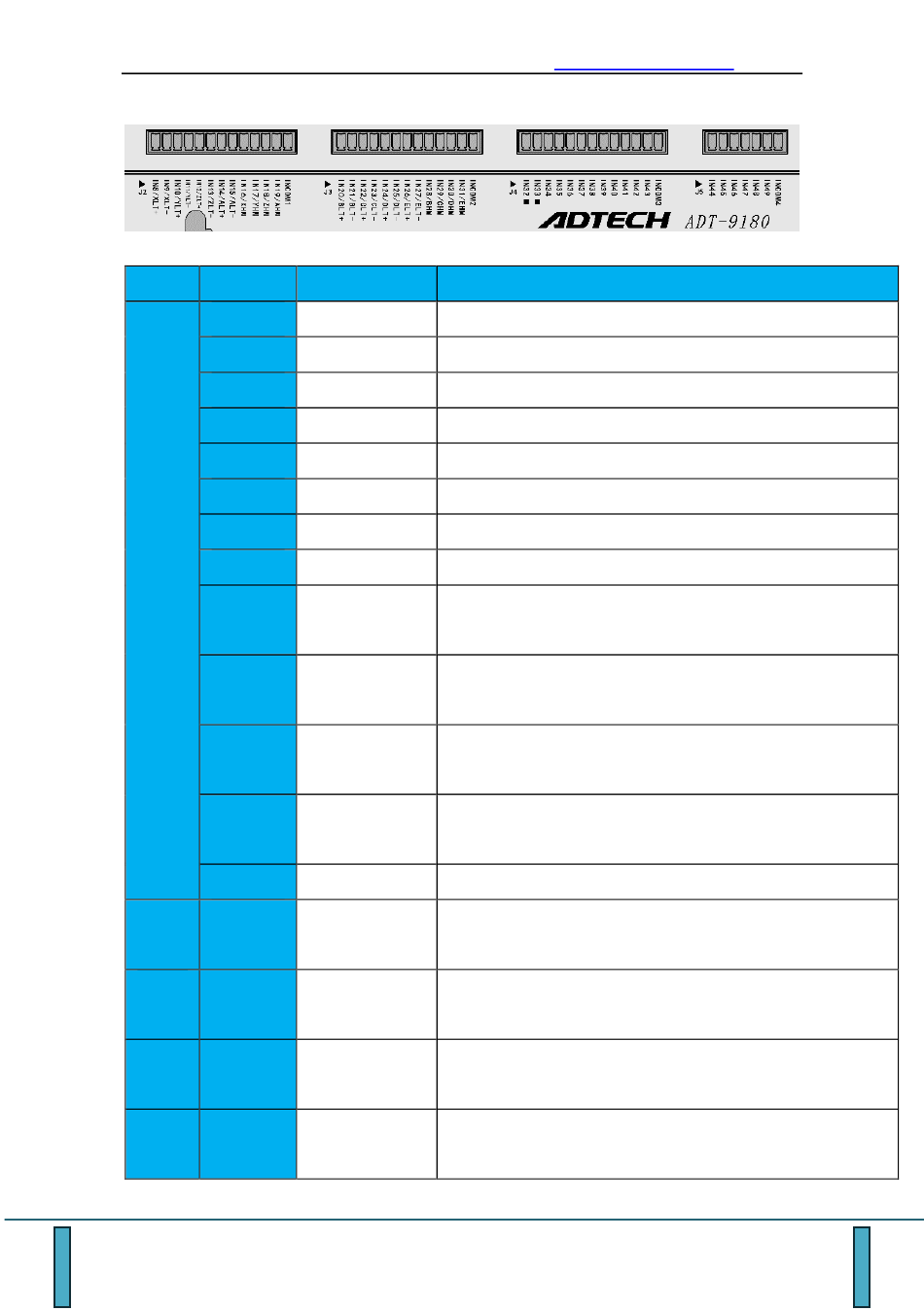

ADT-9180Input Port Definition ofADT-8989 Terminal Board

3.1.6.

ADT-9140\60\80 Input Port Definition

Port Pin No.
1
2
3
4
5
6
7
8
J2
9
10
11
12
13
J3 1
2
3
4
Pin Definitions
IN8/XLT+ X positive limit signal, can be used as general input
IN9/XLT- X negative limit signal, can be used as general input
IN10/YLT+ Y positive limit signal, can be used as general input
IN11/YLT- Y negative limit signal, can be used as general input
IN12/ZLT+ Z positive limit signal, can be used as general input
IN13/ZLT- Z negative limit signal, can be used as general input
IN14/ALT+ A positive limit signal, can be used as general input
IN15/ALT- A negative limit signal, can be used as general input
X origin signal (alias STOP0), can be used as general input,
IN16/XHM
position latch
Y origin signal (alias STOP0), can be used as general input,
IN17/YHM
position latch
Z origin signal (alias STOP0), can be used as general input,
IN18/ZHM
position latch
A origin signal (alias STOP0), can be used as general input,
IN19/AHM
position latch
INCOM1 IN8-IN19 input public terminal, access DC12-24V+
B positive limit signal, can be used as general input (ADT-
IN20/BLT+
9140\60 for general input)
B negative limit signal, can be used as general input (ADT-
IN21/BLT-
9140\60 for general input)
C positive limit signal, can be used as general input (ADT-
IN22/CLT+
9140\60 for general input)
C negative limit signal, can be used as general input (ADT-
IN23/CLT-
9140\60 for general input)
http://www.adtechcn.com
Function
25
