ADT-09 Series Motion Control Card

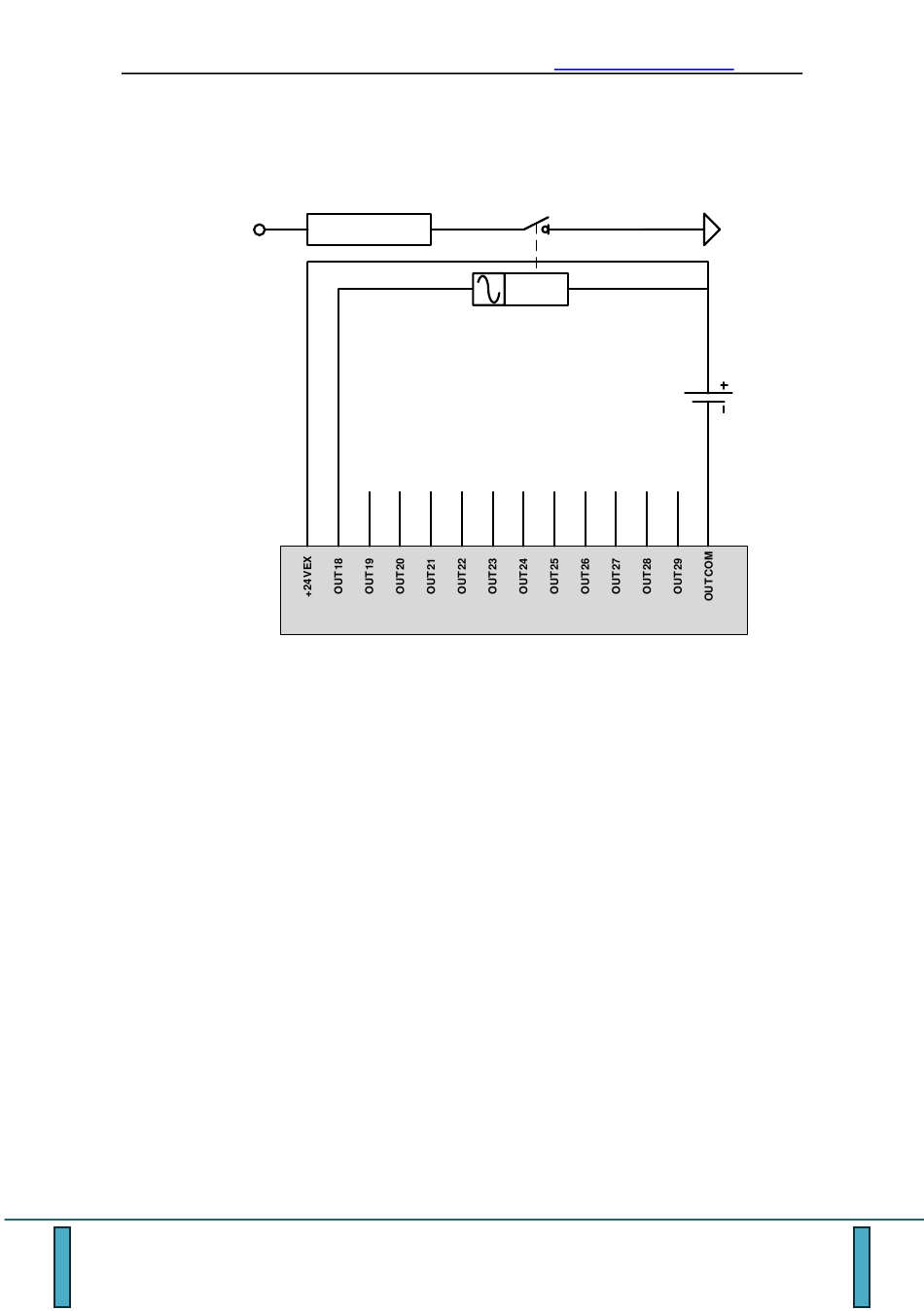

When expand the current with an external relay, a NO relay must be used, as
shown in the figure below
External VCC
power supply
High-current
electrical equipment
Electromagnetic relay coil
Current expansion connection of electromagnetic relay
http://www.adtechcn.com
External GND
power supply
J7
DC24V
