ADT-09 Series Motion Control Card
http://www.adtechcn.com

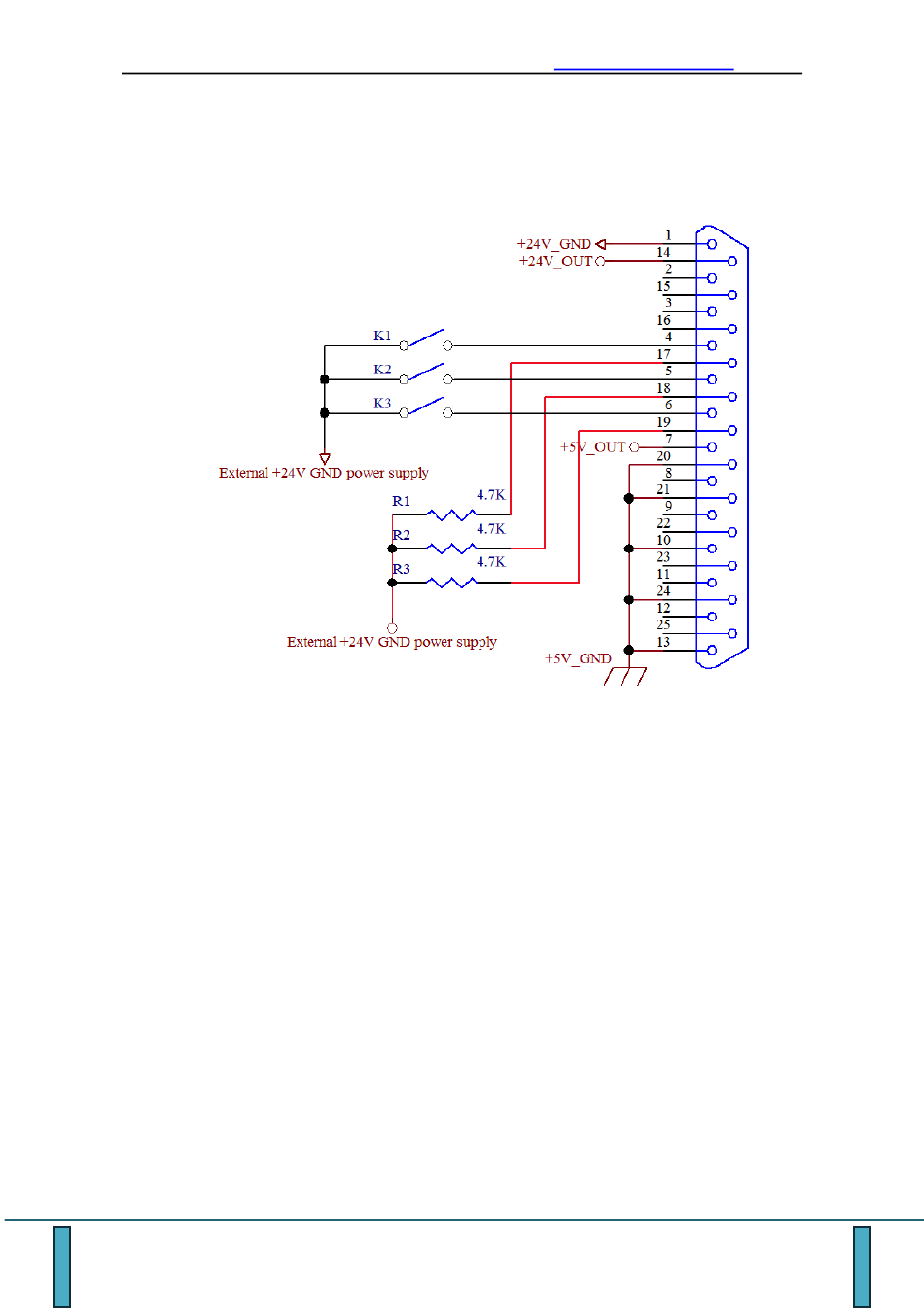

When the AB-phase signal of encoder is used as a universal input point. Taking
X-axis is taken as an example, with its wiring method shown below. The K1/K2/K3
in the figure are connected using the mechanical switch.
33
