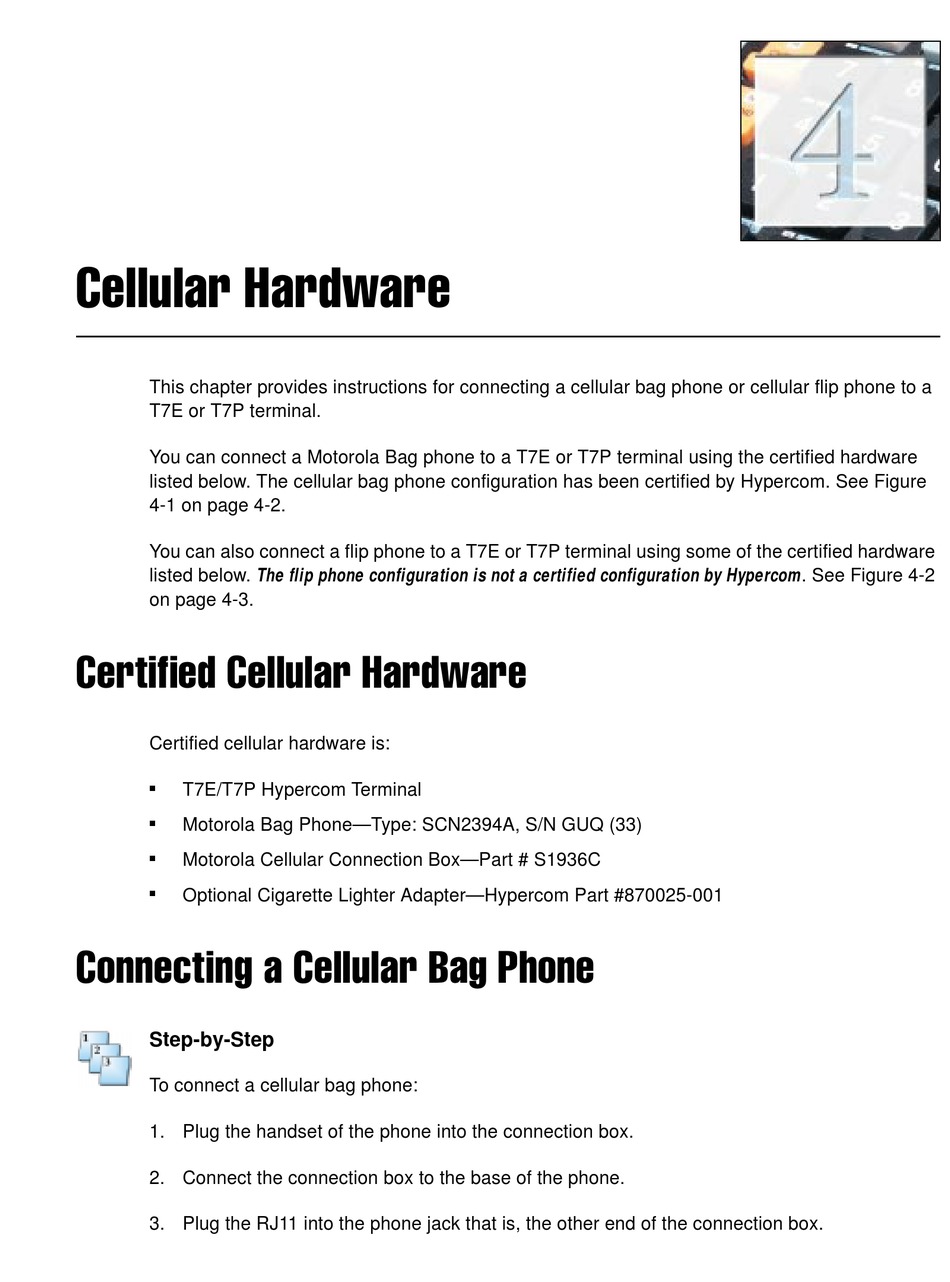

C H A P T E R
'IPPYPEV ,EVH[EVI
This chapter provides instructions for connecting a cellular bag phone or cellular flip phone to a
T7E or T7P terminal.
You can connect a Motorola Bag phone to a T7E or T7P terminal using the certified hardware
listed below. The cellular bag phone configuration has been certified by Hypercom. See Figure
4-1 on page 4-2.
You can also connect a flip phone to a T7E or T7P terminal using some of the certified hardware
listed below. The flip phone configuration is not a certified configuration by Hypercom. See Figure 4-2
on page 4-3.
'IVXMJMIH 'IPPYPEV ,EVH[EVI
Certified cellular hardware is:
n
T7E/T7P Hypercom Terminal
n
Motorola Bag Phone—Type: SCN2394A, S/N GUQ (33)
n
Motorola Cellular Connection Box—Part # S1936C
n
Optional Cigarette Lighter Adapter—Hypercom Part #870025-001
'SRRIGXMRK E 'IPPYPEV &EK 4LSRI
Step-by-Step
To connect a cellular bag phone:
1. Plug the handset of the phone into the connection box.
2. Connect the connection box to the base of the phone.
3. Plug the RJ11 into the phone jack that is, the other end of the connection box.
4
