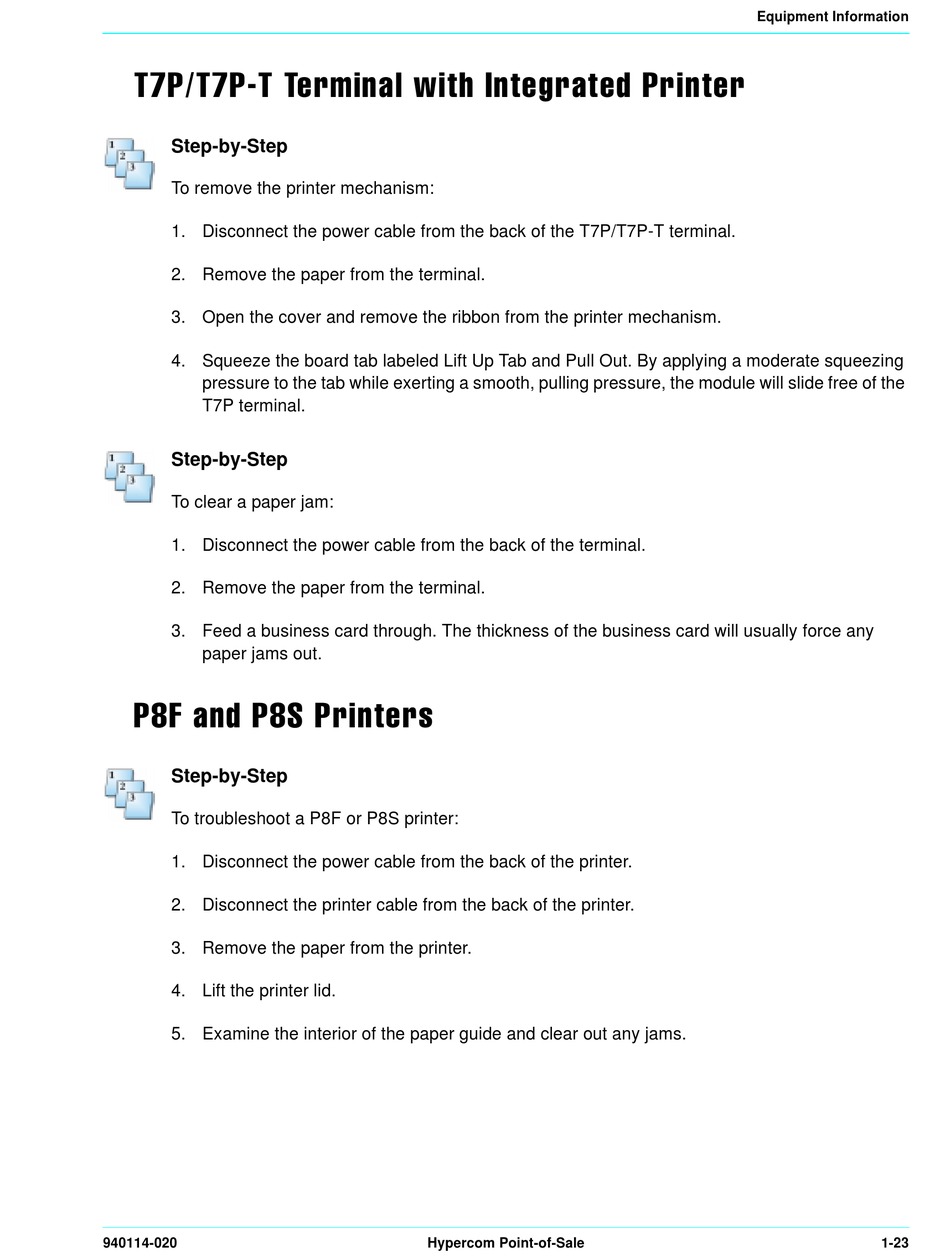

Hypercom T7 Series Troubleshooting Manual page 40

84848 8IVQMREP [MXL -RXIKVEXIH 4VMRXIV
Step-by-Step
To remove the printer mechanism:
1. Disconnect the power cable from the back of the T7P/T7P-T terminal.
2. Remove the paper from the terminal.
3. Open the cover and remove the ribbon from the printer mechanism.
4. Squeeze the board tab labeled Lift Up Tab and Pull Out. By applying a moderate squeezing
pressure to the tab while exerting a smooth, pulling pressure, the module will slide free of the
T7P terminal.
Step-by-Step
To clear a paper jam:
1. Disconnect the power cable from the back of the terminal.
2. Remove the paper from the terminal.
3. Feed a business card through. The thickness of the business card will usually force any
paper jams out.
4 * ERH 4 7 4VMRXIVW
Step-by-Step
To troubleshoot a P8F or P8S printer:
1. Disconnect the power cable from the back of the printer.
2. Disconnect the printer cable from the back of the printer.
3. Remove the paper from the printer.
4. Lift the printer lid.
5. Examine the interior of the paper guide and clear out any jams.
940114-020 Hypercom Point-of-Sale
Equipment Information
1-23
