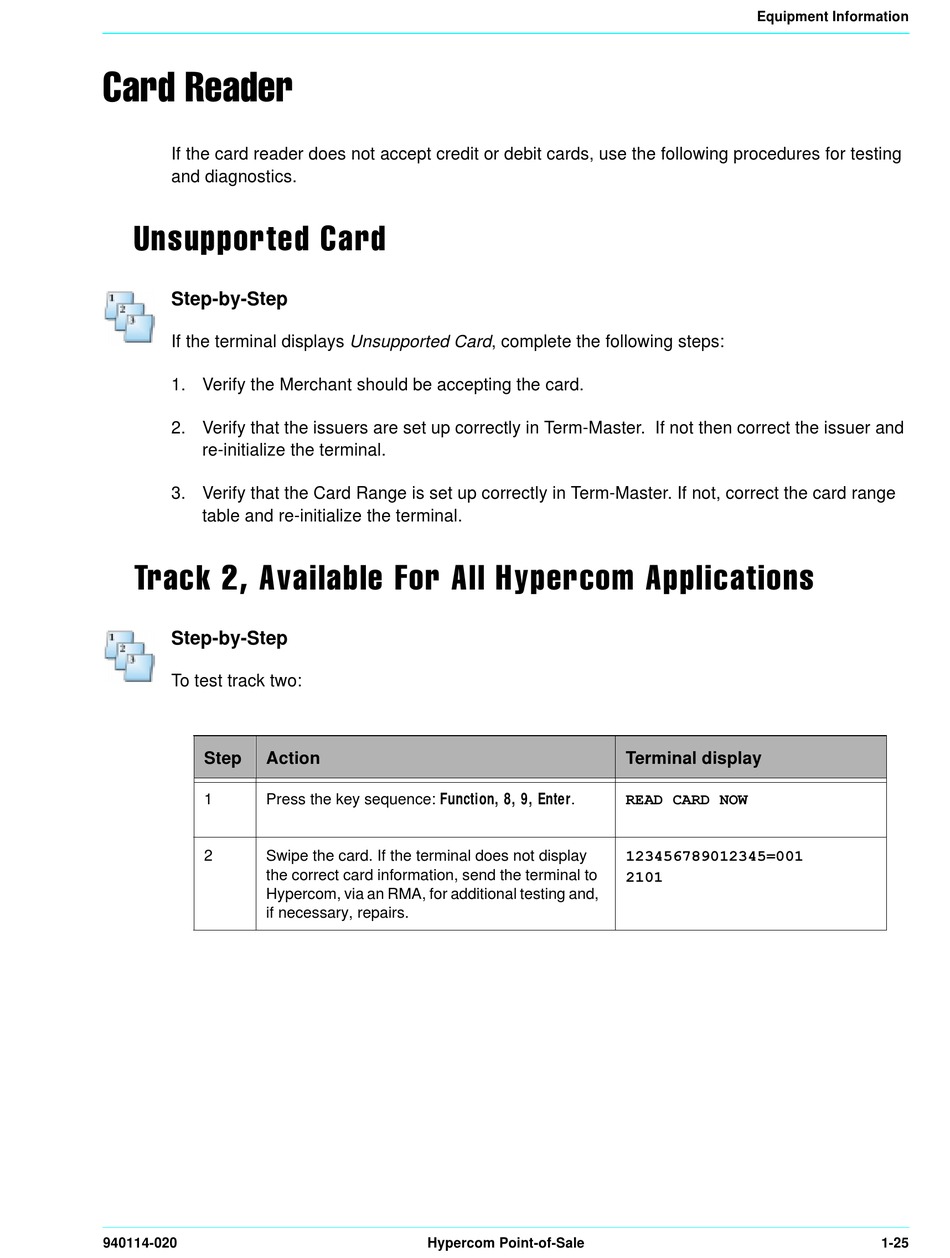

Hypercom T7 Series Troubleshooting Manual page 42

'EVH 6IEHIV
If the card reader does not accept credit or debit cards, use the following procedures for testing
and diagnostics.
9RWYTTSVXIH 'EVH
Step-by-Step
If the terminal displays Unsupported Card , complete the following steps:
1. Verify the Merchant should be accepting the card.
2. Verify that the issuers are set up correctly in Term-Master. If not then correct the issuer and
re-initialize the terminal.
3. Verify that the Card Range is set up correctly in Term-Master. If not, correct the card range
table and re-initialize the terminal.
8VEGO  %ZEMPEFPI *SV %PP ,]TIVGSQ %TTPMGEXMSRW
Step-by-Step
To test track two:
Step Action
1 Press the key sequence: Function, 8, 9, Enter.
2 Swipe the card. If the terminal does not display
the correct card information, send the terminal to
Hypercom, via an RMA, for additional testing and,
if necessary, repairs.
940114-020 Hypercom Point-of-Sale
Equipment Information
Terminal display
5($' &$5' 12:


1-25
