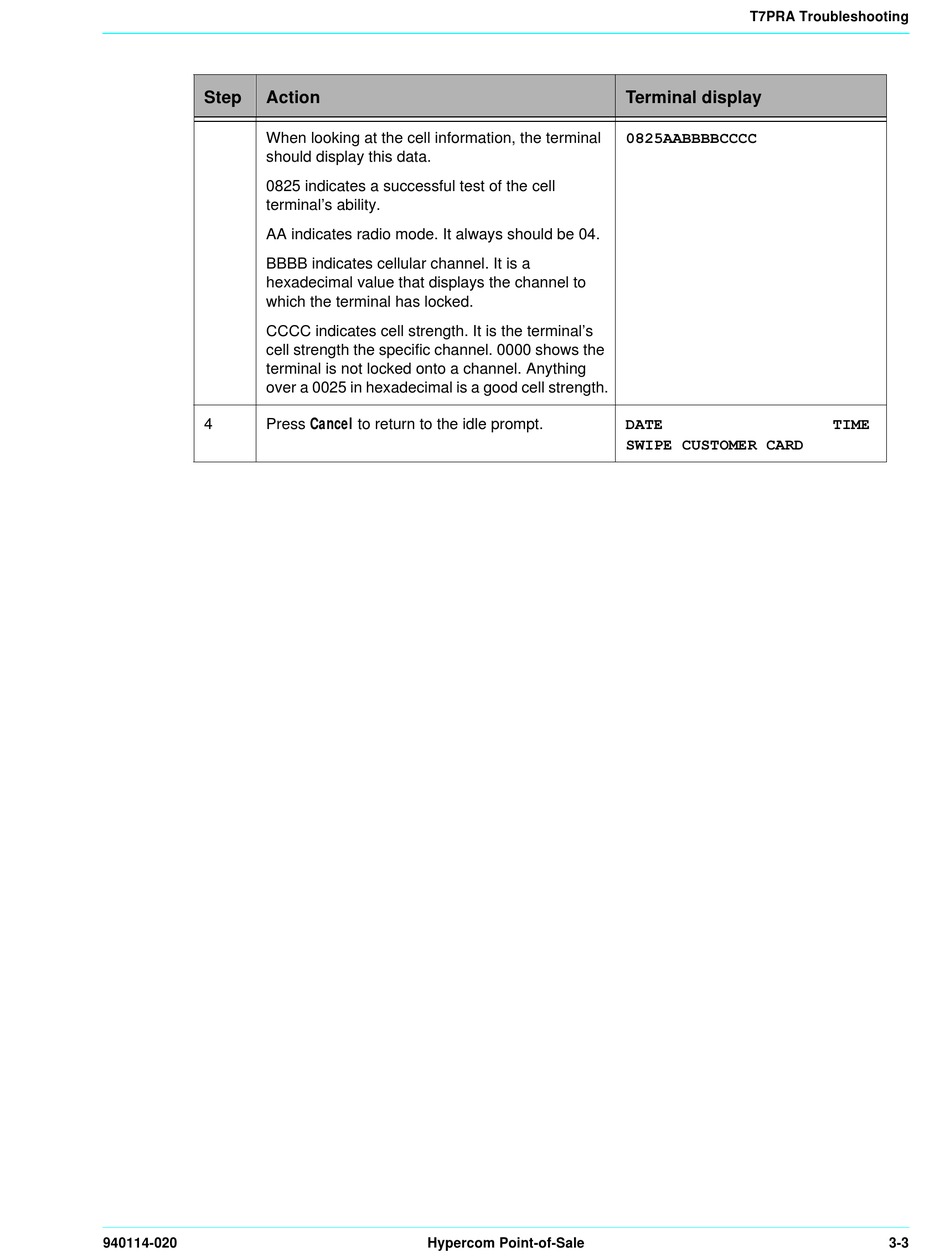

Hypercom T7 Series Troubleshooting Manual page 56

Step Action
When looking at the cell information, the terminal
should display this data.
0825 indicates a successful test of the cell
terminal's ability.
AA indicates radio mode. It always should be 04.
BBBB indicates cellular channel. It is a
hexadecimal value that displays the channel to
which the terminal has locked.
CCCC indicates cell strength. It is the terminal's
cell strength the specific channel. 0000 shows the
terminal is not locked onto a channel. Anything
over a 0025 in hexadecimal is a good cell strength.
4 Press Cancel to return to the idle prompt.
940114-020 Hypercom Point-of-Sale
T7PRA Troubleshooting
Terminal display
$$%%%%&&&&
'$7(
6:,3( &86720(5 &$5'
7,0(
3-3
