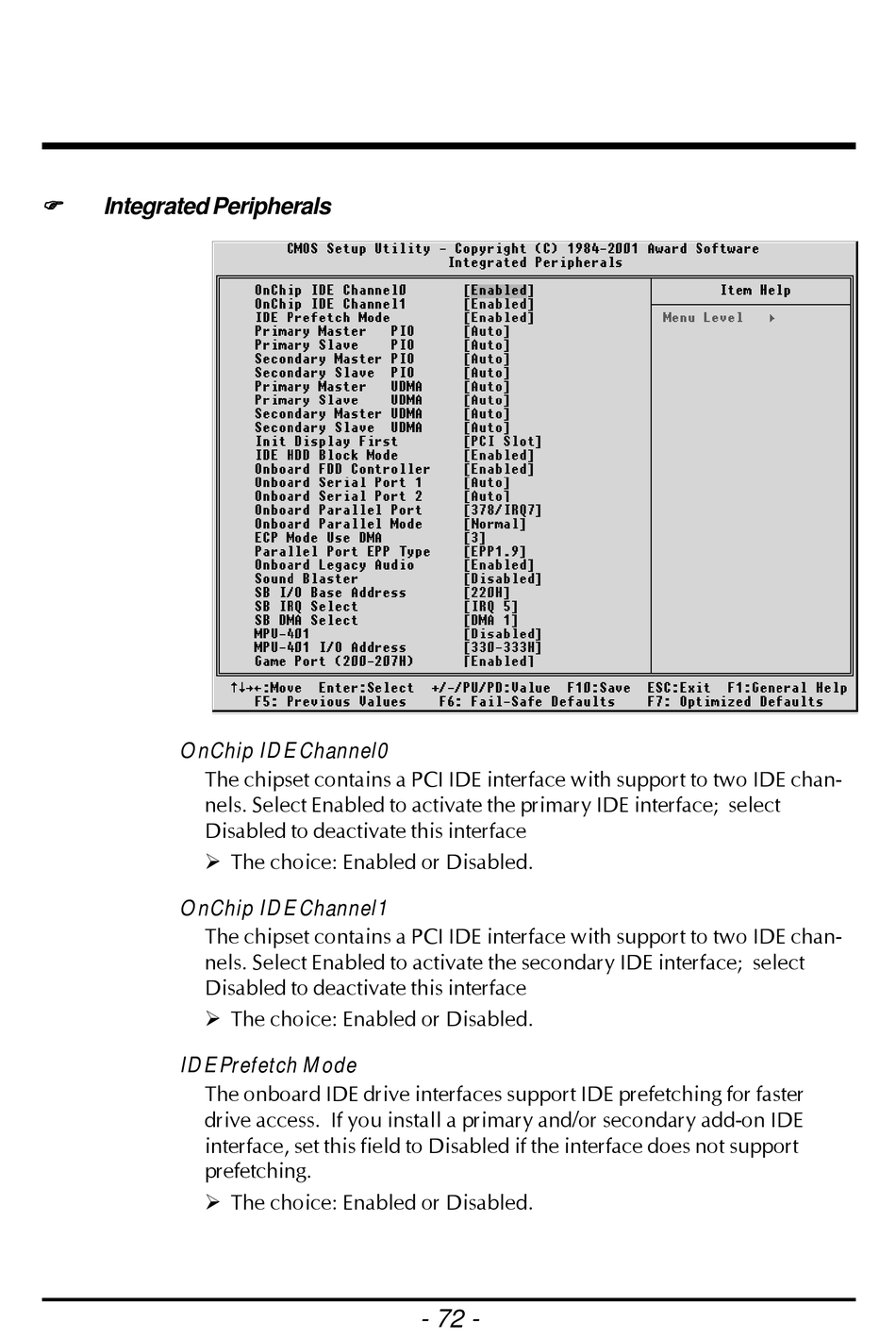

Integrated Peripherals

OnChip IDE Channel0
The chipset contains a PCI IDE interface with support to two IDE chan-
nels. Select Enabled to activate the primary IDE interface; select
Disabled to deactivate this interface
" The choice: Enabled or Disabled.
OnChip IDE Channel1
The chipset contains a PCI IDE interface with support to two IDE chan-
nels. Select Enabled to activate the secondary IDE interface; select
Disabled to deactivate this interface
" The choice: Enabled or Disabled.
IDE Prefetch Mode
The onboard IDE drive interfaces support IDE prefetching for faster
drive access. If you install a primary and/or secondary add-on IDE
interface, set this field to Disabled if the interface does not support
prefetching.
" The choice: Enabled or Disabled.
- 72 -
