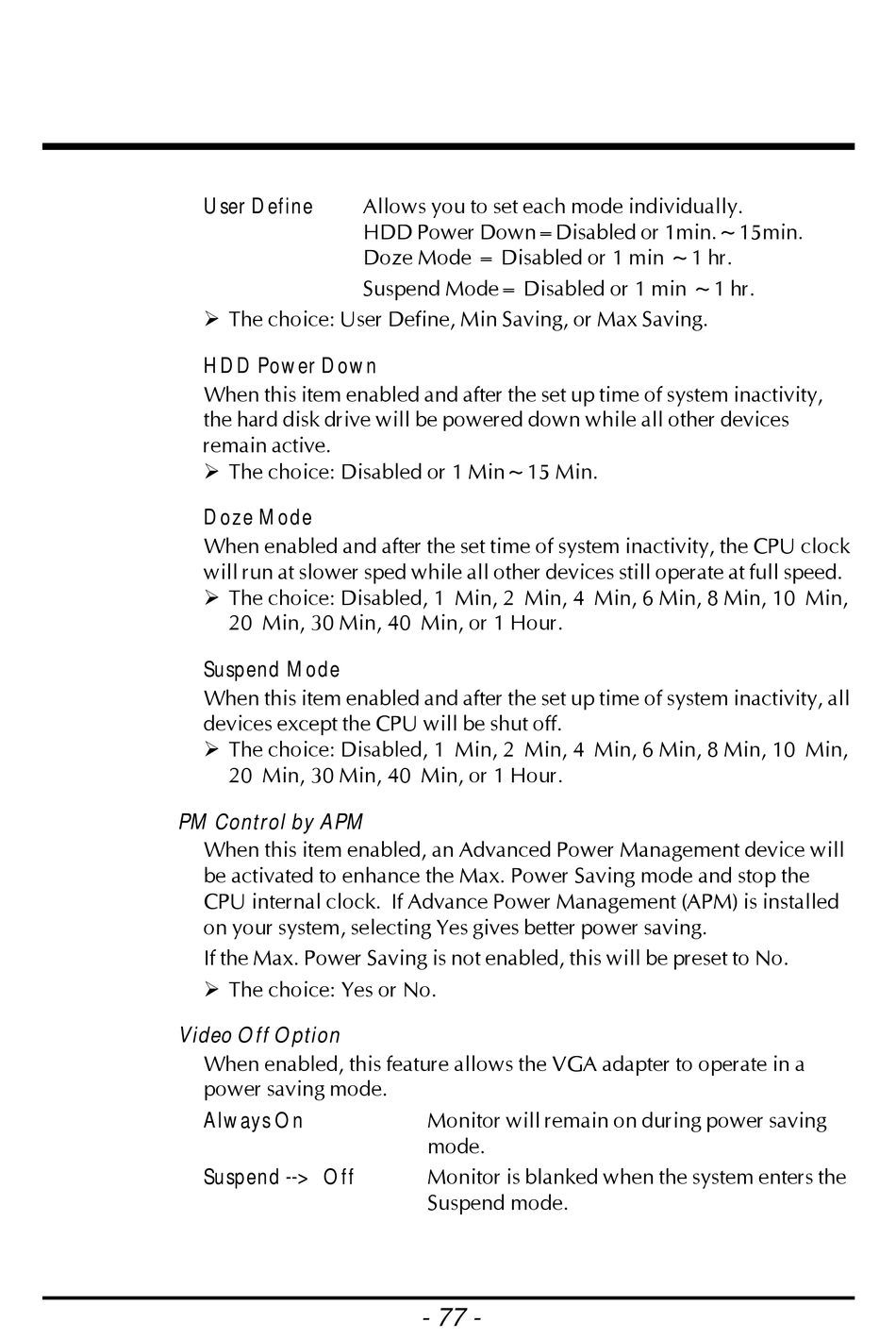

Shuttle Spacewalker MK20 User Manual page 80

User Define
" The choice: User Define, Min Saving, or Max Saving.
HDD Power Down
When this item enabled and after the set up time of system inactivity,
the hard disk drive will be powered down while all other devices
remain active.
" The choice: Disabled or 1 Min~15 Min.
Doze Mode
When enabled and after the set time of system inactivity, the CPU clock
will run at slower sped while all other devices still operate at full speed.
" The choice: Disabled, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min,
20 Min, 30 Min, 40 Min, or 1 Hour.
Suspend Mode
When this item enabled and after the set up time of system inactivity, all
devices except the CPU will be shut off.
" The choice: Disabled, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min,
20 Min, 30 Min, 40 Min, or 1 Hour.
PM Control by APM
When this item enabled, an Advanced Power Management device will
be activated to enhance the Max. Power Saving mode and stop the
CPU internal clock. If Advance Power Management (APM) is installed
on your system, selecting Yes gives better power saving.
If the Max. Power Saving is not enabled, this will be preset to No.
" The choice: Yes or No.
Video Off Option
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
Always On
Suspend --> Off
Allows you to set each mode individually.
HDD Power Down=Disabled or 1min.~15min.
Doze Mode = Disabled or 1 min ~1 hr.
Suspend Mode= Disabled or 1 min ~1 hr.
Monitor will remain on during power saving
mode.
Monitor is blanked when the system enters the
Suspend mode.
- 77 -
