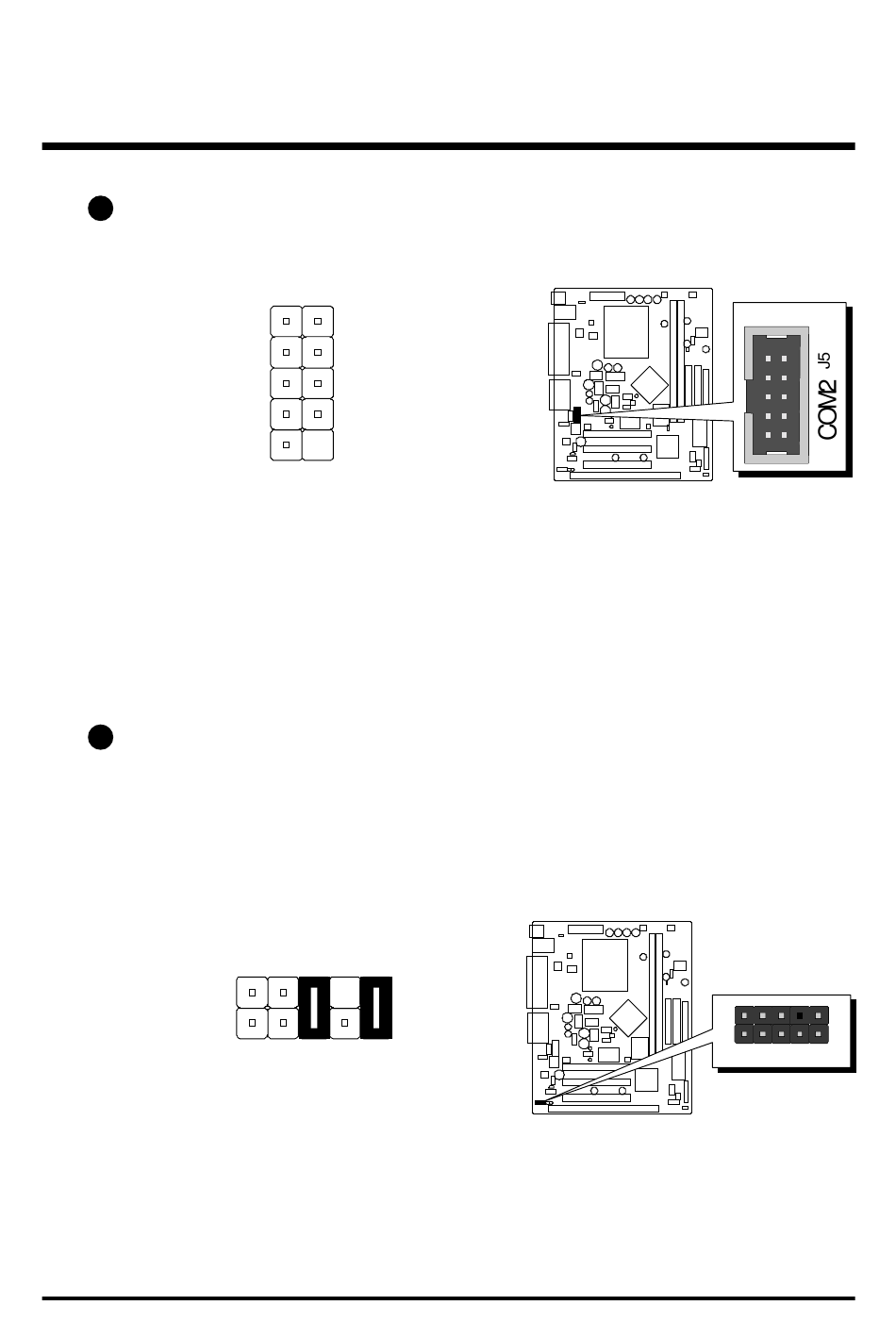

COM2 Connector (J5)

E4
This mainboard comes with one 10-pin ribbon cable for COM2.
1
3
5
7
9
Pins Assignment:
1=DCD2
3=TX2
5=GND
7=RTS2
9=RI2
Front-Panel Microphone and Line_out Header (JP6)
E5
This header allows users to install auxiliary front-oriented microphone and line-
out ports for easier access. Either the Mic and Line_out connector on back-
panel or JP6 header are available at the same time. If you would like to use this
JP6 header on front-panel, please remove all jumpers from JP6 and install your
special Extra Mic / Line_out cable instead.
2 4 6 8 10
1 3 5 7 9
Pins Assignment:
1=AUD_MIC
3=AUD_MIC_BIOS
5=AUD_FRONT_R
7=HP_ON
9=AUD_FRONT_L
2
4
6
8
10
2=RX2
4=DTR2
6=DSR2
8=CTS2
10=KEY
2=AUD_GND
4=AUD_VCC
6=AUD_RET_R
8=KEY
10=AUD_RET_L
- 40 -
1
1
JP6
