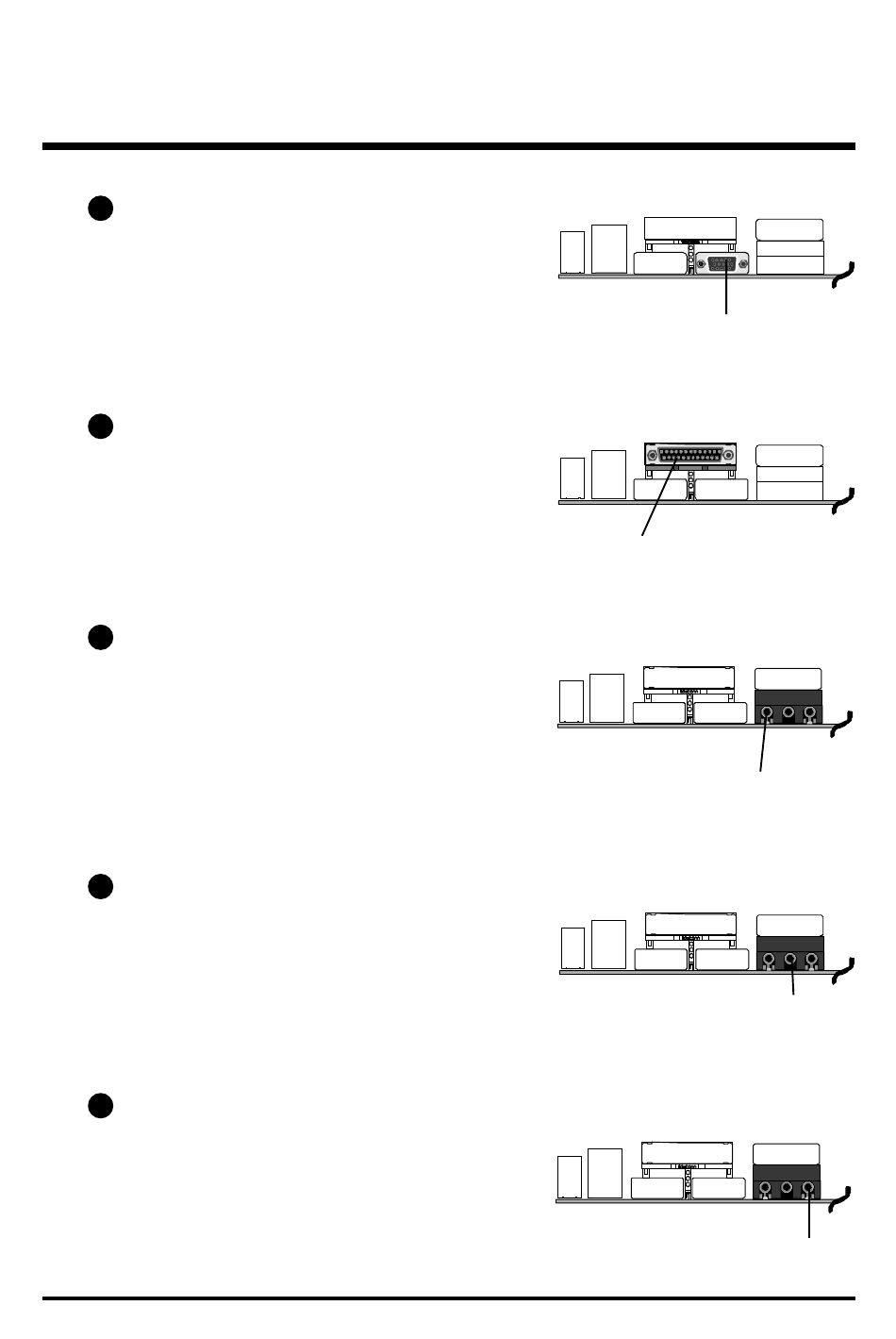

VGA Connector
B5
One 15-pin VGA connector is located at
the rear panel of the mainboard.
Parallel Port Connector
B6
One DB25 female parallel connector is
located at the rear panel of the mainboard.
Plug the connection cable from your par-
allel device (printer, scanner, etc.) into this
connector.
Line-Out
B7
Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board
is output. It can be connected to 1/8-inch
TRS stereo headphones or to amplified
speakers.
Line-In
B8
Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound re-
cording, a source to be mixed with the
output, or both.
Mic-In
B9
MIC-IN is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono
or stereo microphone with a resistance of
not more than 600 Ohms.
- 31 -
VGA Port
foxc on n
Parallel Port
Line-Out
Line-In
Mic-In
