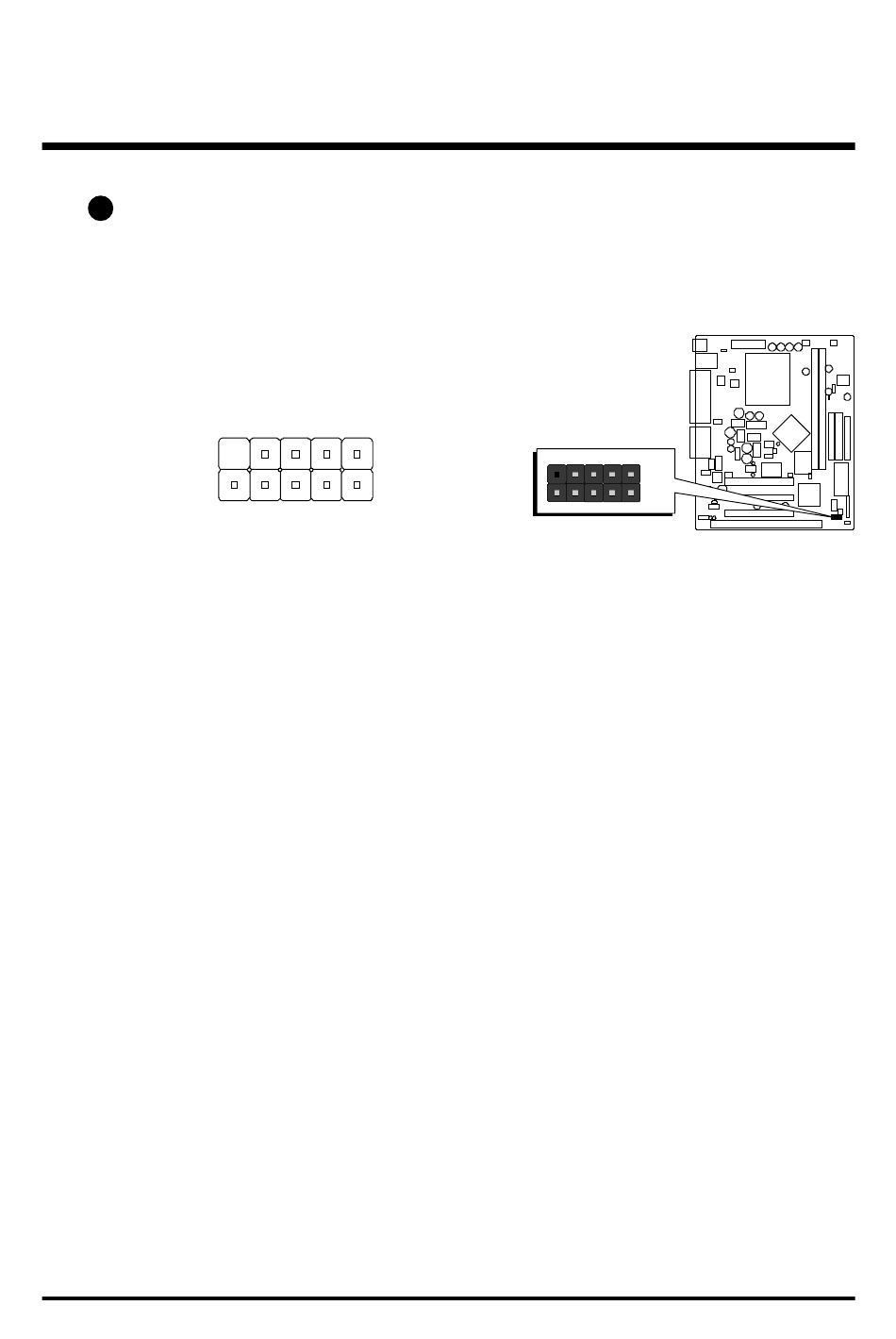

Extended USB Header (JP8)

C7
The headers are used to connect the cable attached to USB connectors which
are mounted on front-panel or back-panel. But the USB cable is optional at the
time of purchase.
USB port 3
9 7 5 3 1
10 8 6 4 2
USB port 4
Pins Assignment:
1=+5V
3=USBP0-
5=USBP0+
7=GROUND
9=KEY
2=+5V
4=USBP1-
6=USBP1+
8=GROUND
10=OC0
- 36 -
1
JP8
