Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. CPU FSB Speed
2. Set USB Power-On
3. Clear CMOS
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with mainboard configu-
ration procedures. The factory-set default settings are tuned for optimum
system performance. For the advanced users who wish to customize their
system, section 3.2 Jumper Settings will provide detailed information on how
to configure your mainboard manually.
Step 3.
Install SDR SDRAM System Memory

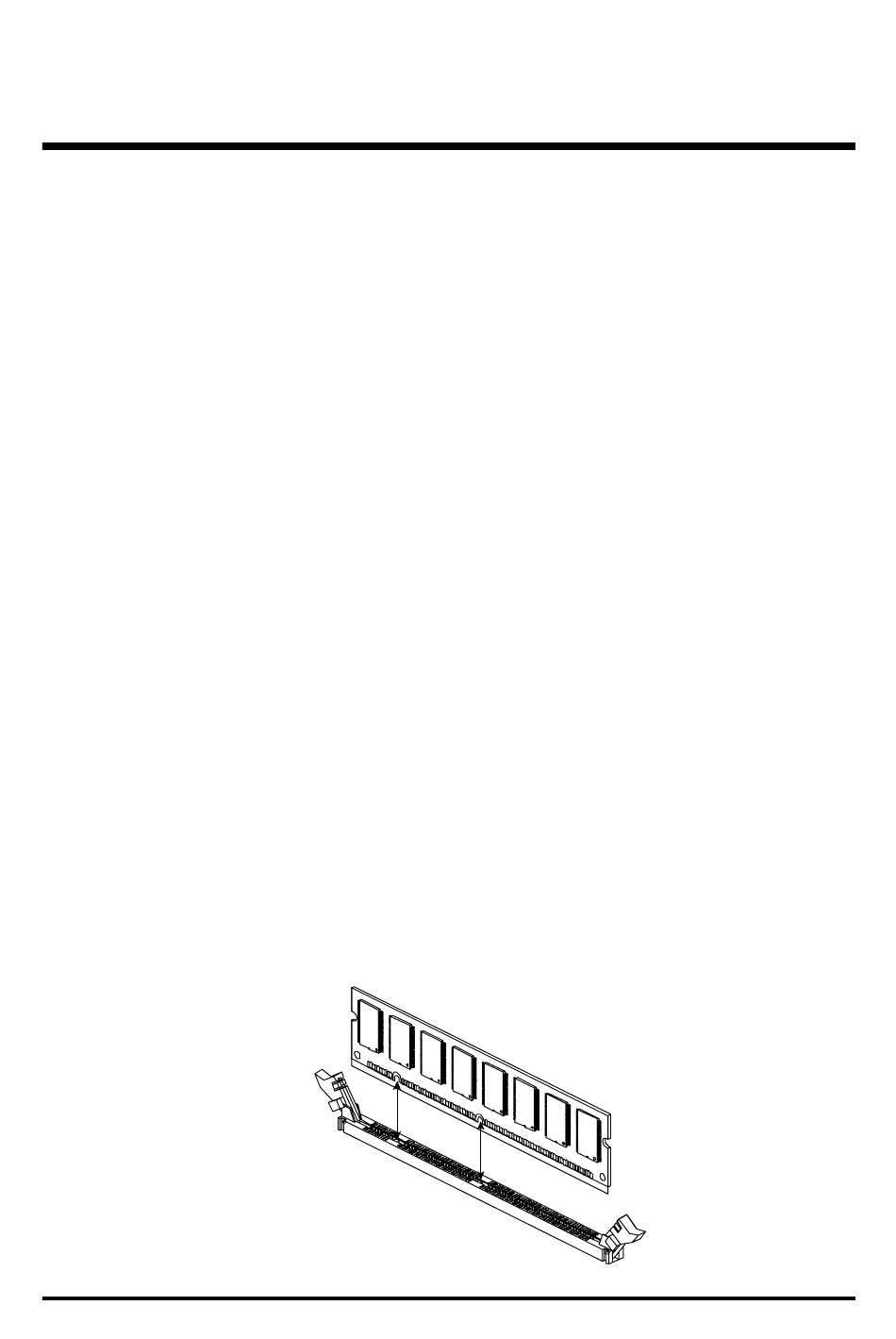

To install memory, insert SDR SDRAM memory module(s) in DIMM slot(s).
Note that SDR SDRAM modules are directional and will not go in the DIMM
slots unless properly oriented. After the module is fully inserted into the
DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in
place.
- 13 -
