3 HARDWARE INSTALLATION

Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your MK20 mainboard. Refer to the

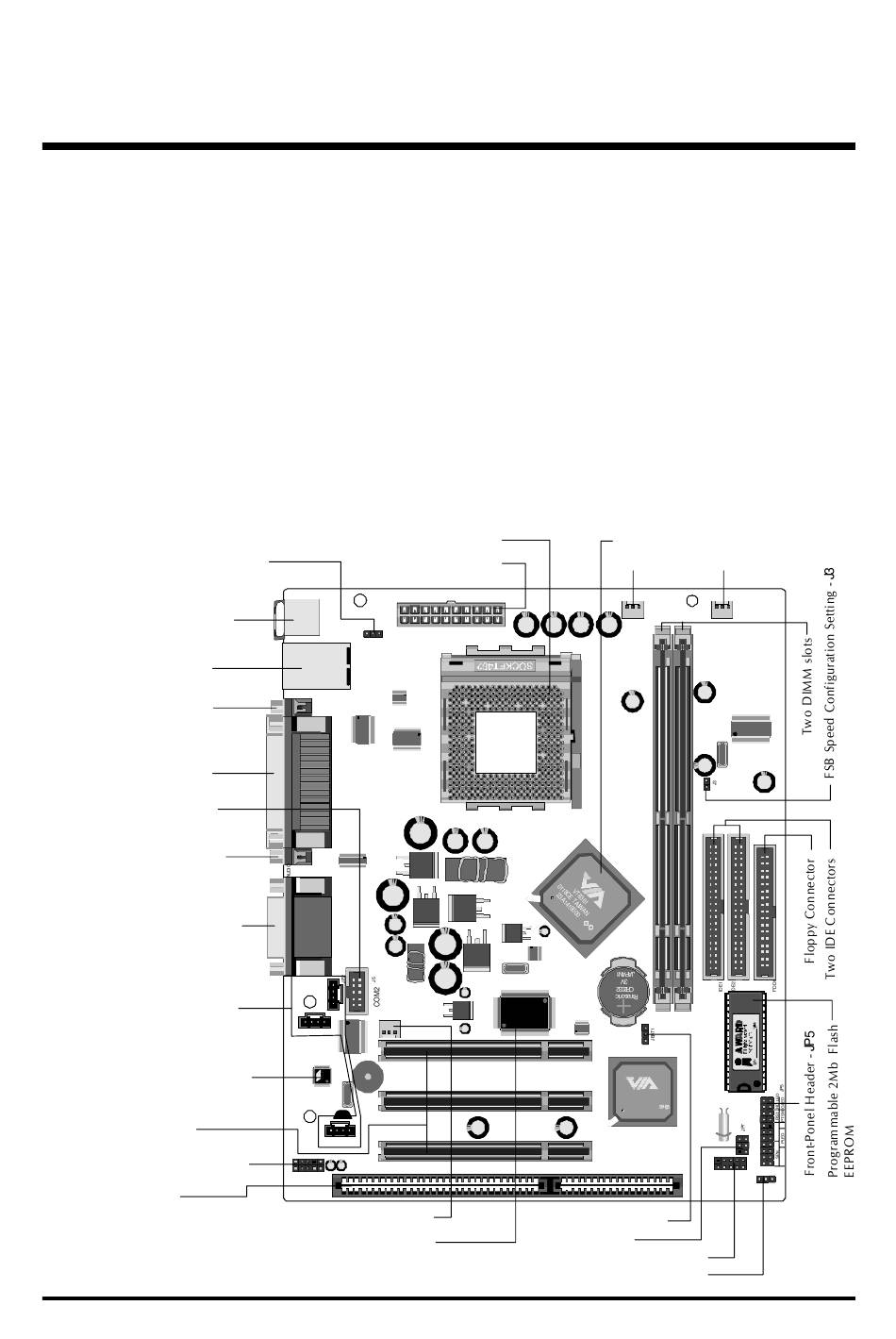

following mainboard layout to help you identify various jumpers, connectors, slots, and
ports. Then follow these steps to guide you through a quick and correct installation of
your system.

3.1 Step-by-Step Installation

Accessories Of MK20
USB Power-On Setting - JP1
PS2 Keyboard/
PS/2 Mouse Connectors
USB1/USB2 & LAN
Connectors
Serial Port Connector
(COM1)
Parallel C onnector
Serial Port Connector
(COM2)
VGA Port Connector
Line-In/Line-Out/Mic-In
Game/MIDI Connectors
On Board Audio Header-
JP2,JP3,JP4
On Board Audio CODEC
Three PCI Slots
Front-Panel Audio Header-
JP6
One ISA Slot
Socket 462
ATX Power Connector
KM 1
CN2
1
US B1 LAN 1
JP1
J2
1
CD IN
1
JP3 1
FAN3
PCI 1
1
PCI 2
1
PCI 3
TAD IN
JP4
1
JP6
ISA1
FAN3
On Board LAN Controller
- 11 -
VIA 8361 Chipset
FAN1
FAN1
1
R T L 8 1 3 9 C
R M C
0 2 1 7 5 T 1
DIMM1 DIMM2
0 0 9 B T A I W A N
1
VT 82 C 6 86 B
00 21 C G TAIW AN
13 C O N 34 00
Clear CM OS - JBAT1
IR Header - JP7
Extended USB Header
USB Power-On Setting - JP9
FAN2
FAN2
1
1
1 1 1
1
1
1
JP8
1
JP9
- JP8
