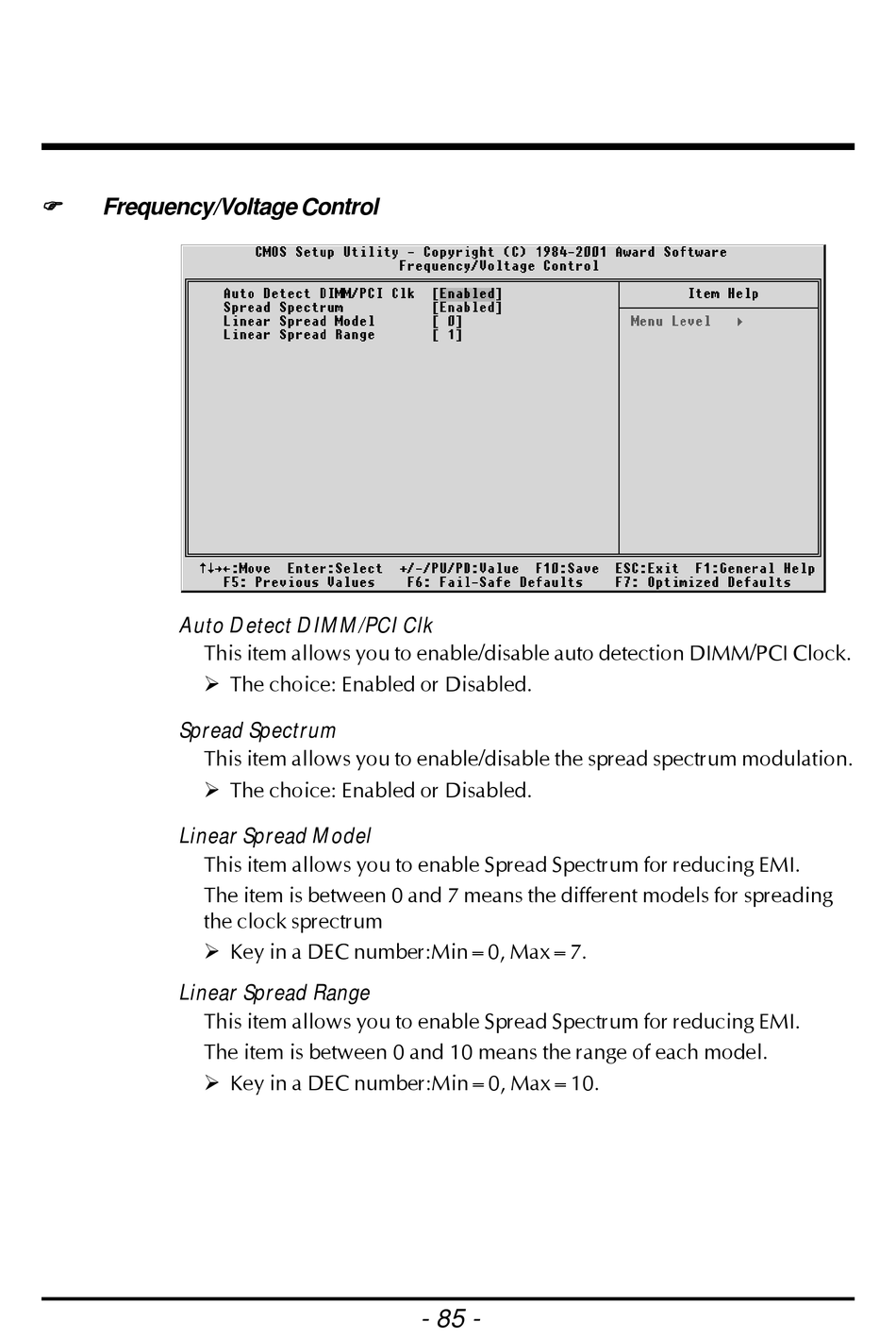

Frequency/Voltage Control

Auto Detect DIMM/PCI Clk
This item allows you to enable/disable auto detection DIMM/PCI Clock.
" The choice: Enabled or Disabled.
Spread Spectrum
This item allows you to enable/disable the spread spectrum modulation.
" The choice: Enabled or Disabled.
Linear Spread Model
This item allows you to enable Spread Spectrum for reducing EMI.
The item is between 0 and 7 means the different models for spreading
the clock sprectrum
" Key in a DEC number:Min=0, Max=7.
Linear Spread Range
This item allows you to enable Spread Spectrum for reducing EMI.
The item is between 0 and 10 means the range of each model.
" Key in a DEC number:Min=0, Max=10.
- 85 -
