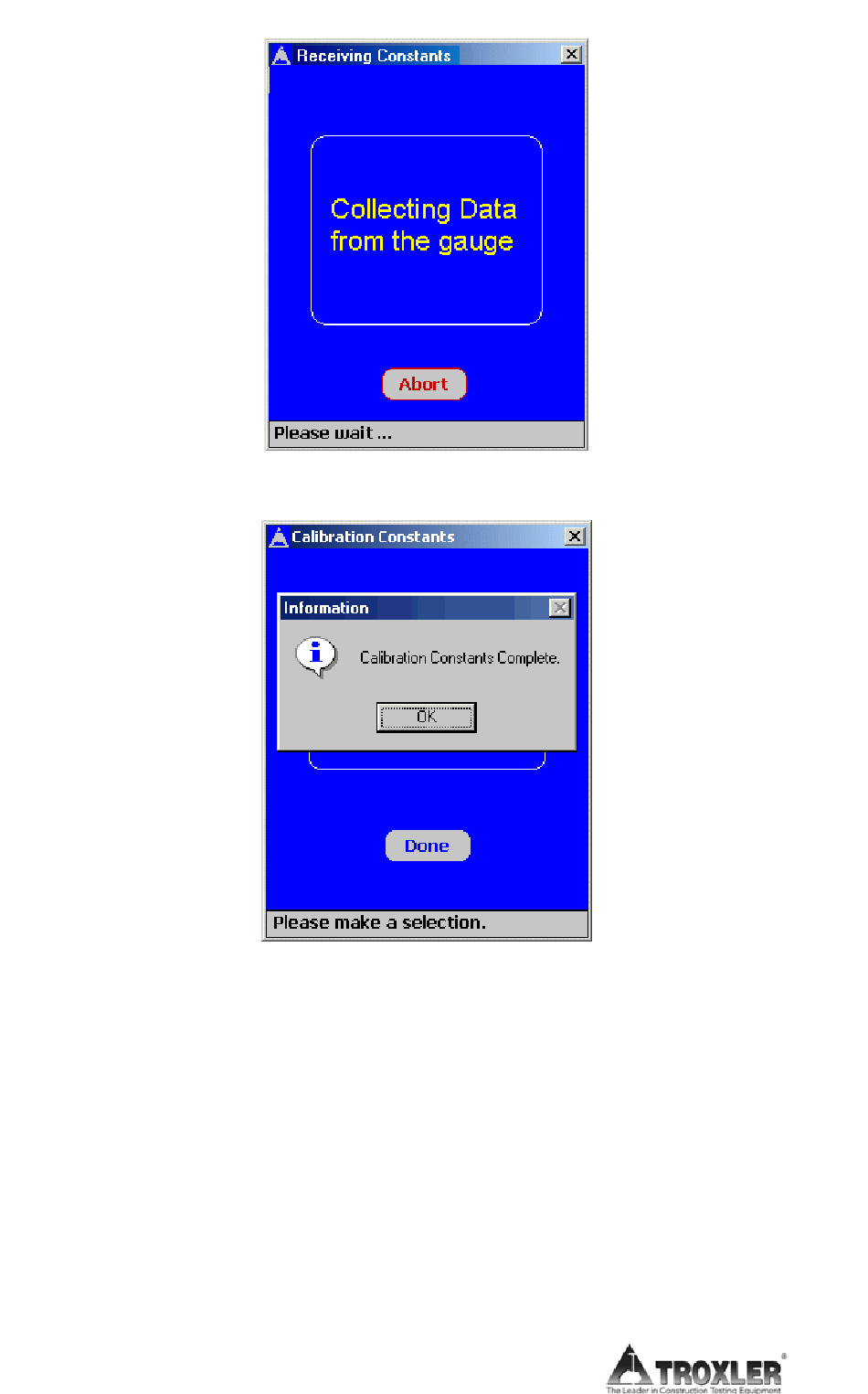

Figure 33: Pocket PC Calibration Constants Collection Screen

Figure 34: Calibration data transfer from the gauge to the Pocket

16. When the user clicks the "OK" button on the preceding
message box, the unobstructed Pocket PC Calibration
Constants Menu displays. Click the "View" button on the
Pocket PC Calibration Constants Menu.
17. The E and F*1000 calibration constants that are in the PDA
display on the screen. Check these values to make sure that
they are correct. Click the "Next" button.
44

PC was successful
