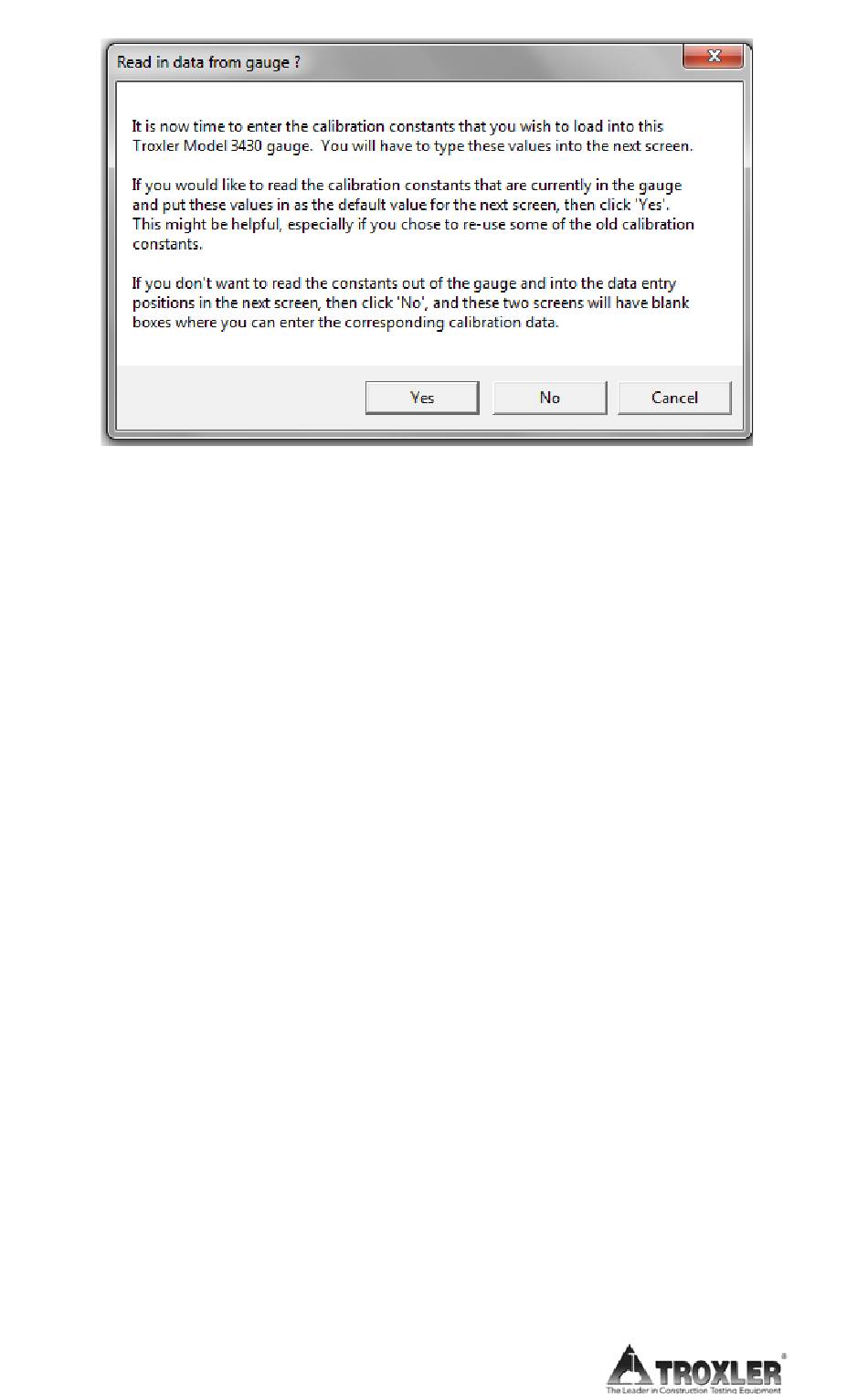

Figure 8: Query Regarding Whether to Read Calibration

If the initial readout option is selected, then the computer
reads the calibration constants that are currently in the
gauge and "pre-load" the values into the data entry screens.
This option is useful if you plan to re-use some of the
current calibration constants in the new calibration, but
would only create more work if you do not plan to re-use.
If the initial readout option is declined, then skip the next
step and proceed to Step (11). If the initial readout option is
accepted, however, then proceed to the next step
10. The program now reads the calibration constants out of the
gauge and prepares them for display. Once the data are
read from the gauge, a message box stating "Calibration
Constants Complete" displays. Click "Ok" on that message
box and proceed to the next step.
11. At this point the Opening Data Entry Screen displays.
If the gauge is a Model 3430 or 3440, it looks similar to
Figure 9.
20
Constants from Gauge
