5. The program now prompts the user to select the RS-232
communication port through which the computer is
connected to the gauge. All available communications ports

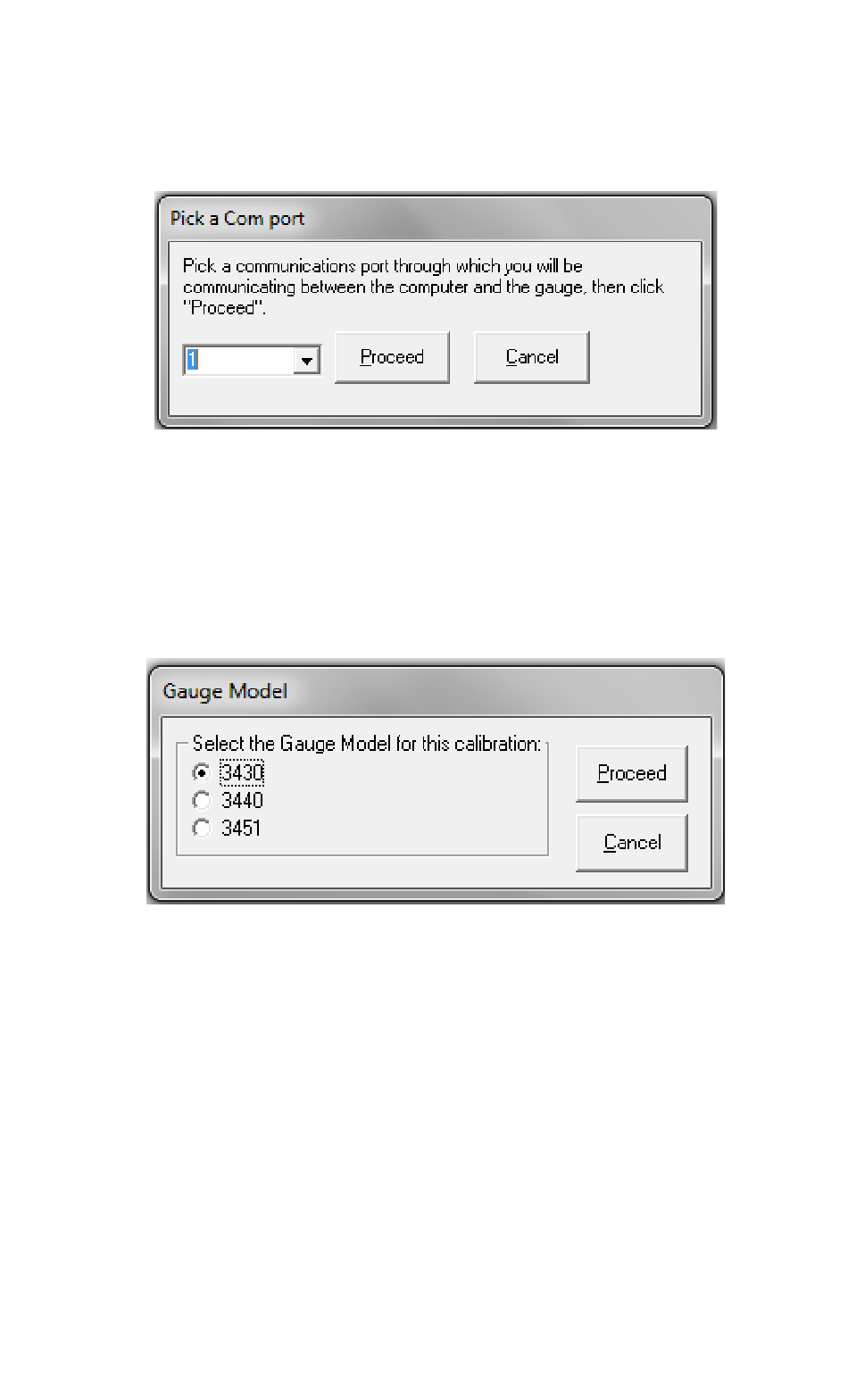

are listed on the Communications Port Selection Screen (see
Figure 6.)
6. Select the appropriate port number, and then click the

Figure 6: Communications Port Selection Screen

"Proceed" button.
7. After the communications port is selected, the Gauge Model
Selection Screen displays (see Figure 7.)
8. Select the gauge model, and then click the "Proceed" button.

Figure 7: Gauge Model Selection Screen

9. At this point the Calibration Constants Initial Readout Query
screen (see Figure 8) displays.
