Installation Procedures for the InstroTek Universal Base
June 24 2013
The UBB is designed as an easy replacement for Troxler models 3411, 3430, 3440
baseboards as well as the InstroTek 3500. Certain tools are required to install and setup
the UBB for it to function correctly. The InstroTek warranty on this product requires that
only authorized, trained service personnel familiar with these types of products conduct
the installation and setup. Once the UBB is installed, the gauge should be re-calibrated or
verified according to ASTM D2922.
Model 3401 and 3411 Baseboard Installation are covered in Section A
Model 3430 and 3440 Baseboard Installation are covered in Section B
InstroTek Model 3500 Baseboard Installation are covered in Section C
Electronic Adjustment and Setup Procedure are covered in Section D
Tools Required:
• Soldering iron and solder
• De-soldering iron or solder remover (3411 only)
• Phillips screwdriver
• 5/16" nut driver
• Small jewelers screwdriver or Potentiometer adjusting screwdriver
• Oscilloscope
• Digital multi-meter (DMM)
• High voltage probe
SECTION A – Installing the UBB in a 3401 or 3411 Gauge:
Use the following parts from the existing 3411/3401
gauge along with your new UBB to complete this
task
1- GM tube holders and screws(2)
2- GM tubes with nylon spring supports and
springs (2 each)
3- He3 tube (1)
4- metal base plate (1)
5- Copper grounding spring (2)
6- Curved He3 tube support and screw (1each)
7- Screws and washers that attach circuit board
to metal plate.
8- Screws and washers that attach baseboard
assembly to gauge
Board (UBB)
1

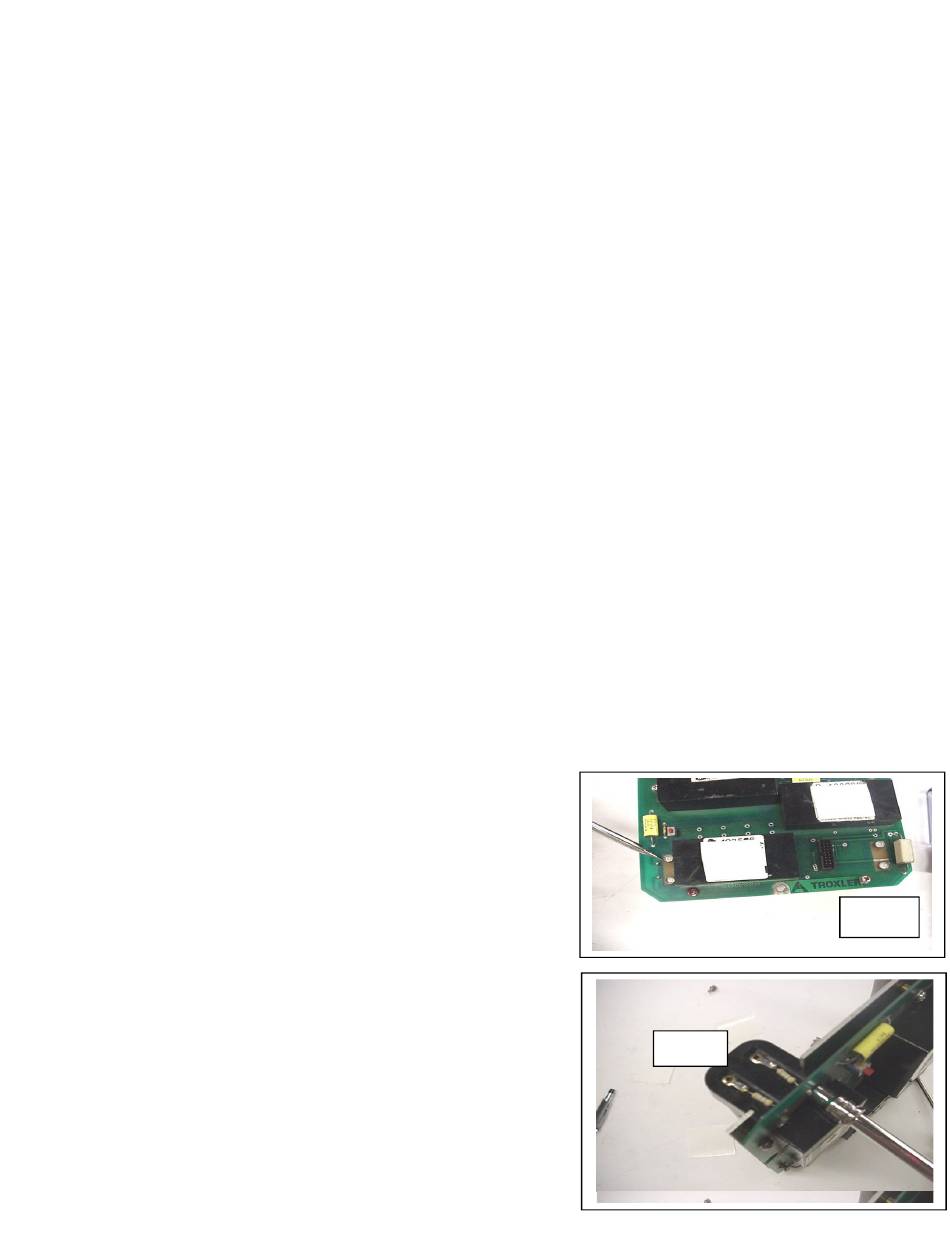

Fig.2
Fig. 1
