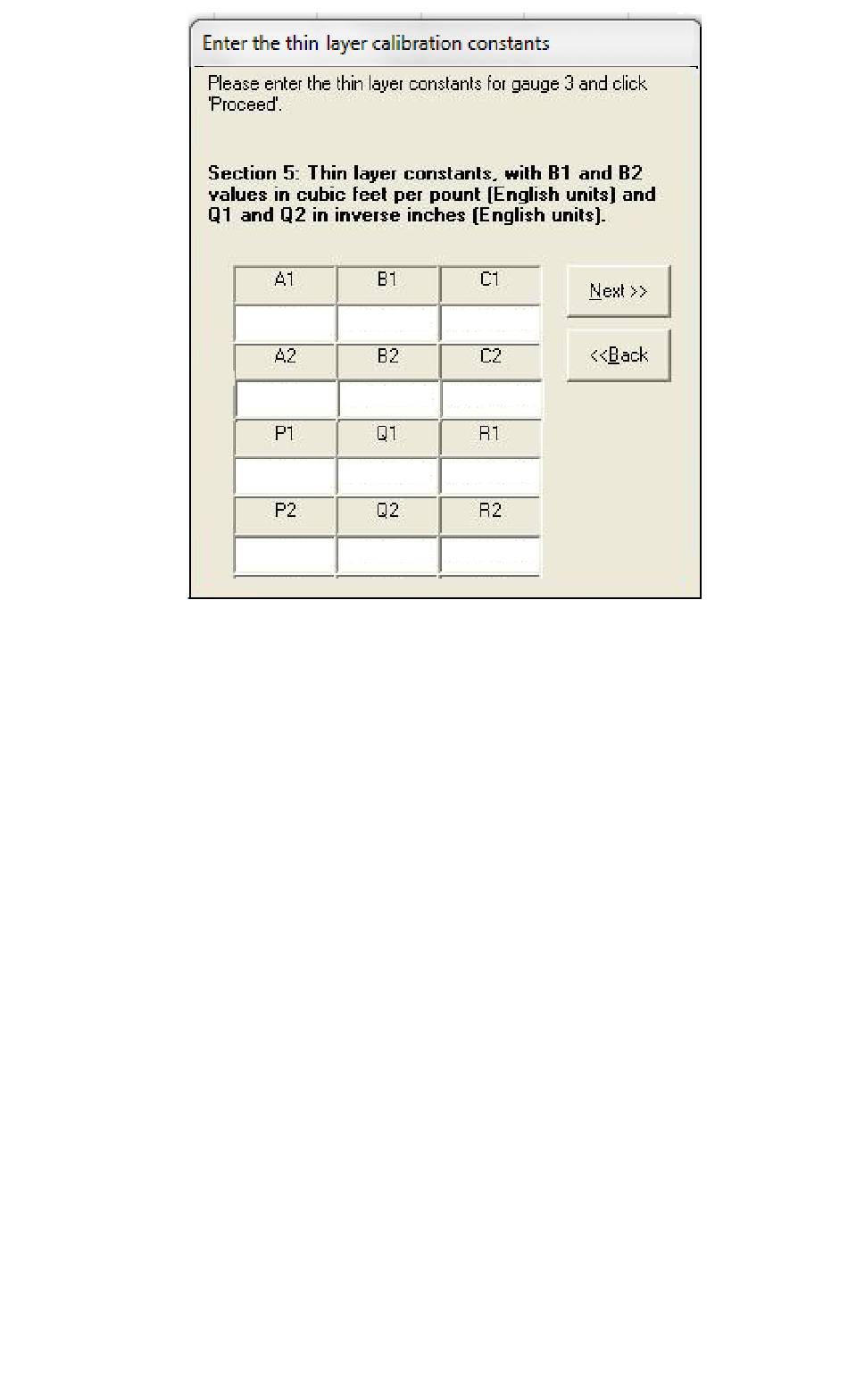

Figure 11: Second Data Entry Screen (Thin Layer Data) For Model - Troxler 3430 Manual Of Operation And Instruction

Figure 11: Second Data Entry Screen (Thin Layer Data) for Model

14. Type in (or edit) the required data on this form, making sure
that the correct English units are used, and then click the
"Next" button.
If the gauge for which the calibration constants are being
entered is a Model 3430 or 3440, then the Thin Layer Data
Entry Screen is not necessary and is therefore not displayed.
Proceed directly to the next step.
15. Once all of the calibration constants and related data have
been entered and/or edited, the program is ready to load
the data into the gauge. The Communications Protocol
Initialization Screen (Figure 12) displays.
