data have all been transferred with no error in data transfer
noted, the following screen displays:
The confirmation message box indicates that the calibration

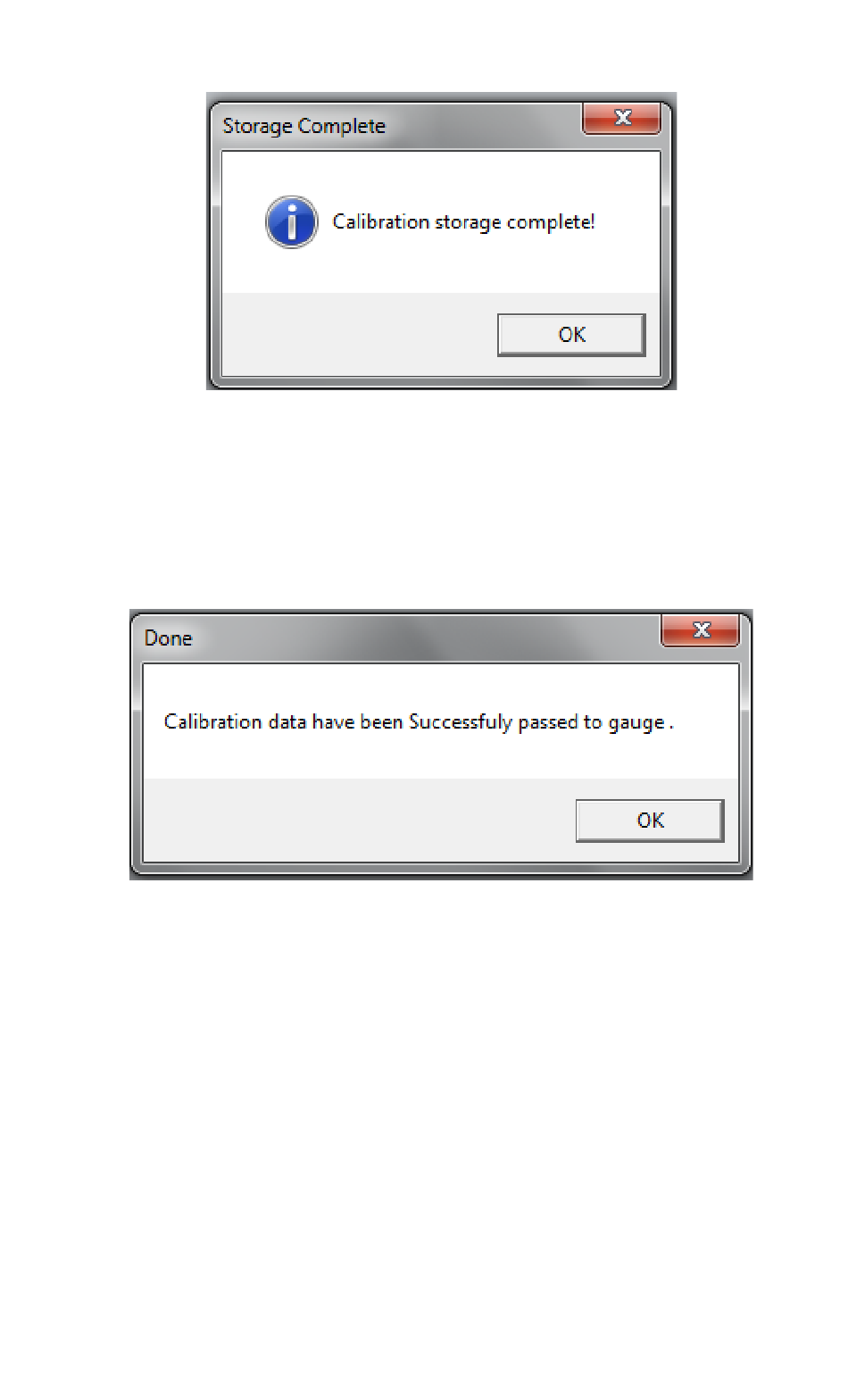

Figure 14: Calibration Storage Complete Message

data were sent without any errors. and when the "OK"
button on this message box is clicked, the message box
shown in Figure 15 displays.
This confirmation message box indicates that the calibration

Figure 15: Calibration Data Passed to Gauge Message

data were sent from the computer to the gauge without any
errors.
19. Click the "OK" button on that message box as well.
20. Finally, the number of downloads remaining on the license
for PlusLoader is decremented by one, and the message box
shown in Figure 16 displays, indicating how many
downloads are left on the license.
Model 4590 25
