Raman Spectroscopy Bundle

3 Operating Elements

3.1 RSB1(/M) Base Unit

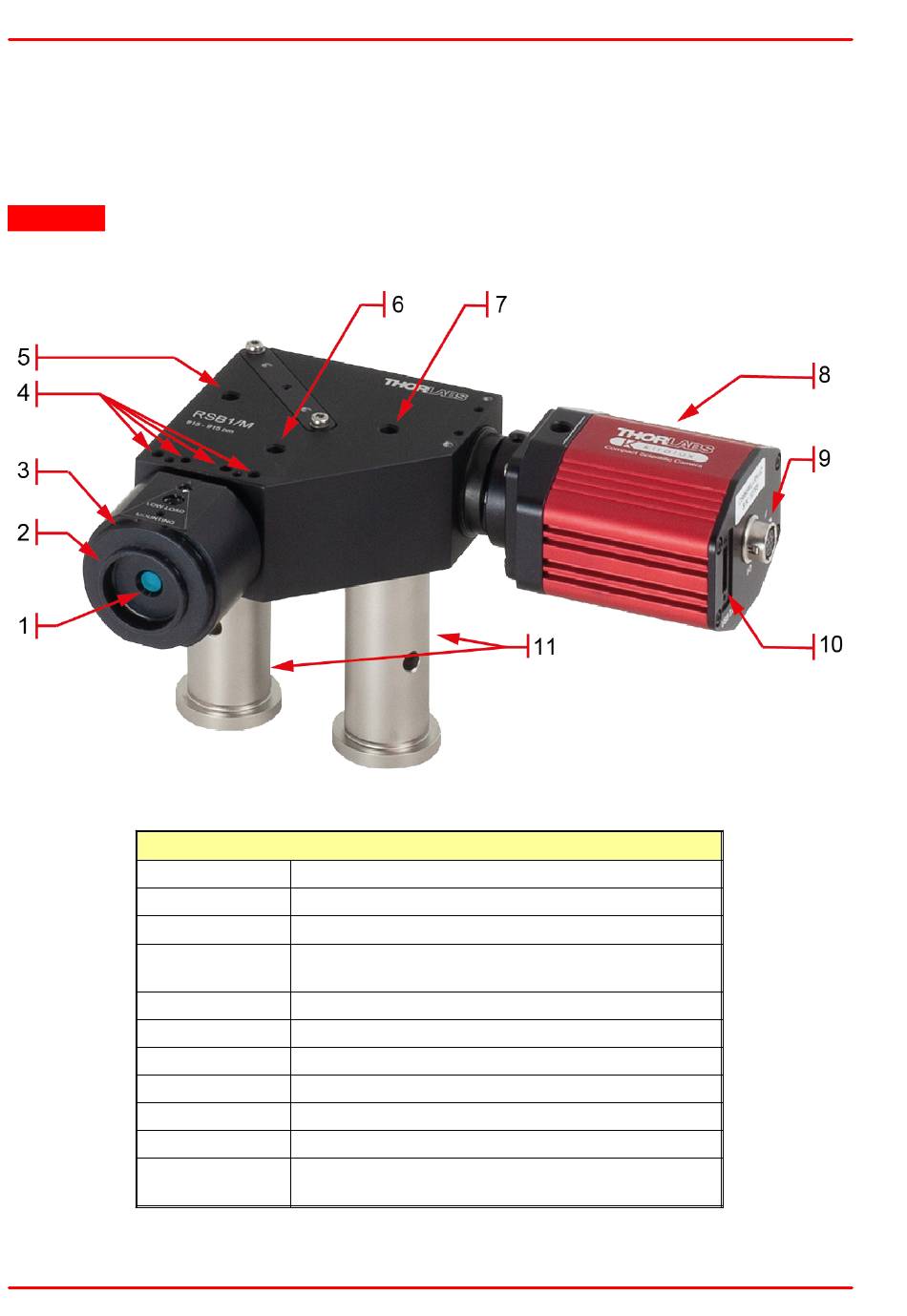

The RSB1(/M) Base Unit components are labelled in the image below, which shows the
RSB1/M model. Aside from the posts and mounting threads, RSB1 and RSB1/M are identical.
Attention
Do not remove covers! There are no user-serviceable parts inside!
1
2
3
4
5
6
7
8
9
10
11
Page 7
RSB1(/M) Features
Input Aperture with Hadamard Mask
Outside: Taps for RSBA1 Cage Adapter Mounting*
Inside: Taps for Dowel Pins from RSBA1
Tap 3 for Post Mounting: M6 x 1 (imperial: 1/4-20)
Tap 1 for Post Mounting: M6 x 1 (imperial:1/4-20)
Tap 2 for Post Mounting: M6 x 1 (imperial:1/4-20)
Metric: 2 x RS2.5P/M; Imperial: 2 x RS2.5P
* Taps differ for metric (M4 x 0.7) and imperial (8-32) versions.
Chapter 3: Operating Elements
SM1 External Thread
SM1.5 External Thread
CMOS Camera
Auxiliary Port
USB 3.0 Port
Mounting Posts:
MTN022733-D02
