Summary of Contents for THORLABS OSL2IR

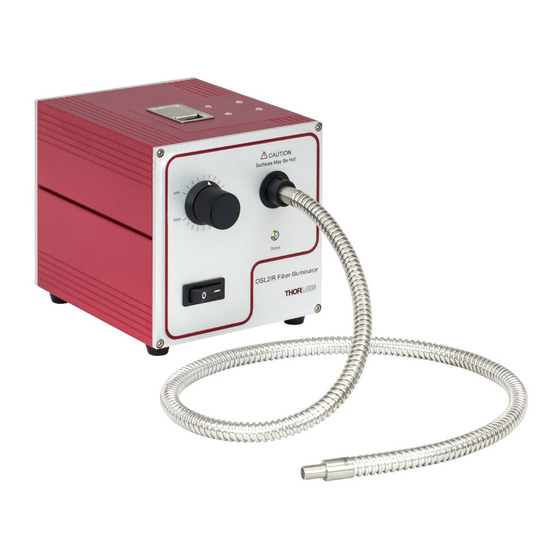

- Page 1 OSL2IR High-Intensity Fiber Light Source User Guide...
-
Page 2: Table Of Contents
Operation ..................2 2.1.3. Cleaning..................2 Chapter 3 Getting Started ..............3 3.1. Unpacking the OSL2IR ............ 3 3.2. Setup Overview ............. 3 3.2.1. Electrical Power Supply ............... 3 3.2.2. Fiber Bundle and Light Output Port ..........3 Chapter 4 Physical Description ............ -
Page 3: Chapter 1 Warning Symbol Definitions
High-Intensity Fiber Light Source Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 4: Chapter 2 Safety
High-Intensity Fiber Light Source Chapter 2: Safety Chapter 2 Safety CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN INPUT: 200 W, Max Line Fuse, 5 x 20 mm 100 – 120 VAC, 50/60 Hz 3 A Quick Acting 200 – 240 VAC, 50/60 Hz 3 A Quick Acting Caution You are cautioned that any change or modifications not expressly approved in this... -
Page 5: Chapter 3 Getting Started
SM1 (1.035"-40) threads. This threaded output port can be used for a variety of free space applications. See Section 4.1 for details on the location of the output port and operating controls of the OSL2IR. Rev A, March 30, 2021... -
Page 6: Chapter 4 Physical Description
High-Intensity Fiber Light Source Chapter 4: Physical Description Chapter 4 Physical Description 4.1. Front Panel Light Source Descriptions The following components are numbered to correspond with Figure 1, below. Variable Intensity Controller (0 to 100%) On/Off rocker Switch Light Output Port LED Indicator (Indicates lamp temperature status). -
Page 7: Chapter 5 Lamp Replacement
High-Intensity Fiber Light Source Chapter 5: Lamp Replacement Chapter 5 Lamp Replacement 5.1. Lamp Replacement Instructions To replace the lamp, shut off the power and remove the power cord from the AC outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord. -
Page 8: Chapter 6 Specifications
High-Intensity Fiber Light Source Chapter 6: Specifications Chapter 6 Specifications 6.1. General Specifications OSL2IR Specifications Controller Specifications Power at Fiber Tip 3.8 W at Maximum Bulb Intensity Color Temperature 3200 K at Maximum Bulb Intensity Operating Wavelength Range 400 – 1750 nm (Typical) - Page 9 High-Intensity Fiber Light Source Chapter 6: Specifications Figure 4 Dimensional Drawing Rev A, March 30, 2021 Page 7...
-
Page 10: Chapter 7 Certifications And Compliances
High-Intensity Fiber Light Source Chapter 7: Certifications and Compliances Chapter 7 Certifications and Compliances This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Chapter 8 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 12: Chapter 9 Thorlabs Worldwide Contacts
High-Intensity Fiber Light Source Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 13 www.thorlabs.com...
