Raman Spectroscopy Bundle

3.3 RSBC1(/M) Front End for Cuvette Measurements

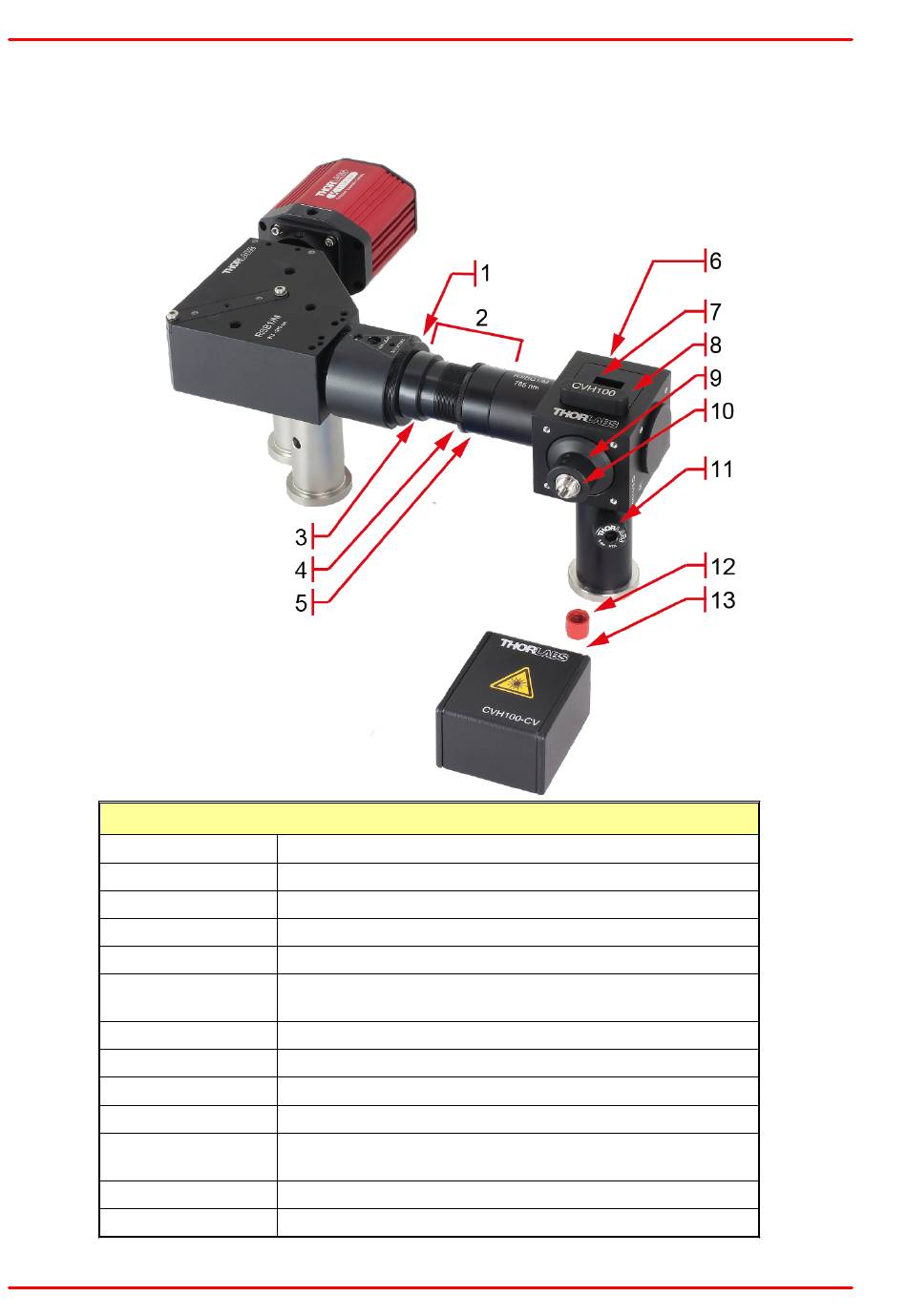

The RSBC1(/M) front end components are labelled in the image below, which shows the
RSBC1/M model.
1
2
3
4
5
6
7
8
9
10
11
12
13
* Post and Holder differ for metric and imperial versions. Please see the packing list.
Page 9
RSBC1(/M) Features
RSB1(/M) Base Unit Input Aperture
Baffle Assembly to the RBS1(/M)
SM1 Internal Thread
SM1 Locking Ring
SM1M05 Connecting Ring
RSBC1(/M) Main Body with
Collecting Mirror for Raman Scattering
Cuvette Slot
Excitation Bandpass Filter
F260FC-780 Collimator, SS3MN4 Setscrews
FC/PC connector for Laser Input
Mounting Post in Post Holder with Spring-Loaded Locking
FC/PC Protection Cap
Light-Tight Cover
Chapter 3: Operating Elements
Screw*
