Raman Spectroscopy Bundle
Chapter 8: Appendix
The expression can also contain mathematical functions; available functions are listed and in-
serted by clicking on the button labelled "Fx."
The calculation will be performed when the "Calculate" button is clicked or by pressing "Enter"
on the keyboard. If the result of the calculation is a trace, it will be stored in the trace indicated
by the drop-down menu in the dialog box. If the result of the calculation is a scalar, the calcu-
lated result will be displayed in the Result section of the dialog and it will not be saved in a
trace.

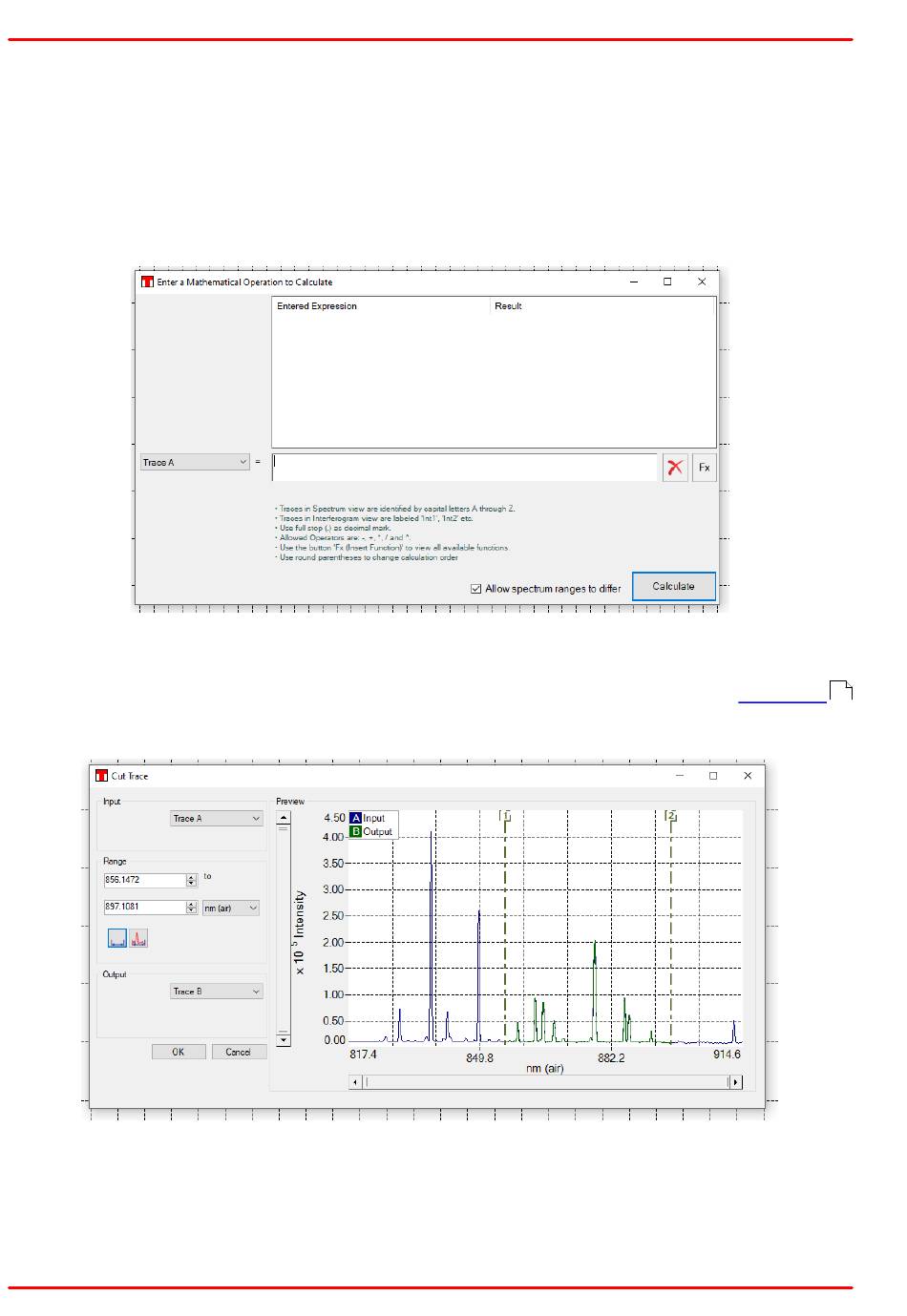

Mathematical Operation Dialog
Cut: Cuts a trace to a specified region, removing all data outside of that region. A
Cut Trace
107
dialog box will open, in which the exact region and the input/output traces can be specified.
Cut Operation Dialog
Page 107
MTN022733-D02
