8 Getting Started
_________________________________________________________________________________

2.3 Operating elements on front panel

Status Indicators
SEL SEL SEL
ERR ERR ERR
Modules / Module-Slots
Figure 1
Display
The alphanumeric vacuum-fluorescence display enables interactive communication
with the PRO800 / PRO8000 / PRO8000-4. Different menus allow a clearly
structured representation of the relevant values.
Mains switch
The mains switch is a key-operated power control switch (ON / STANDBY) to prevent
accidental or non-authorized use.
Modules
The PRO8000 and PRO8000-4 can house up to 8 plug-in modules, the PRO800 two
modules.
All in- or outputs are accessible directly at the front of the modules.
______________________________________________________________________________________________________
SEL
SEL
SEL
ERR
ERR
ERR

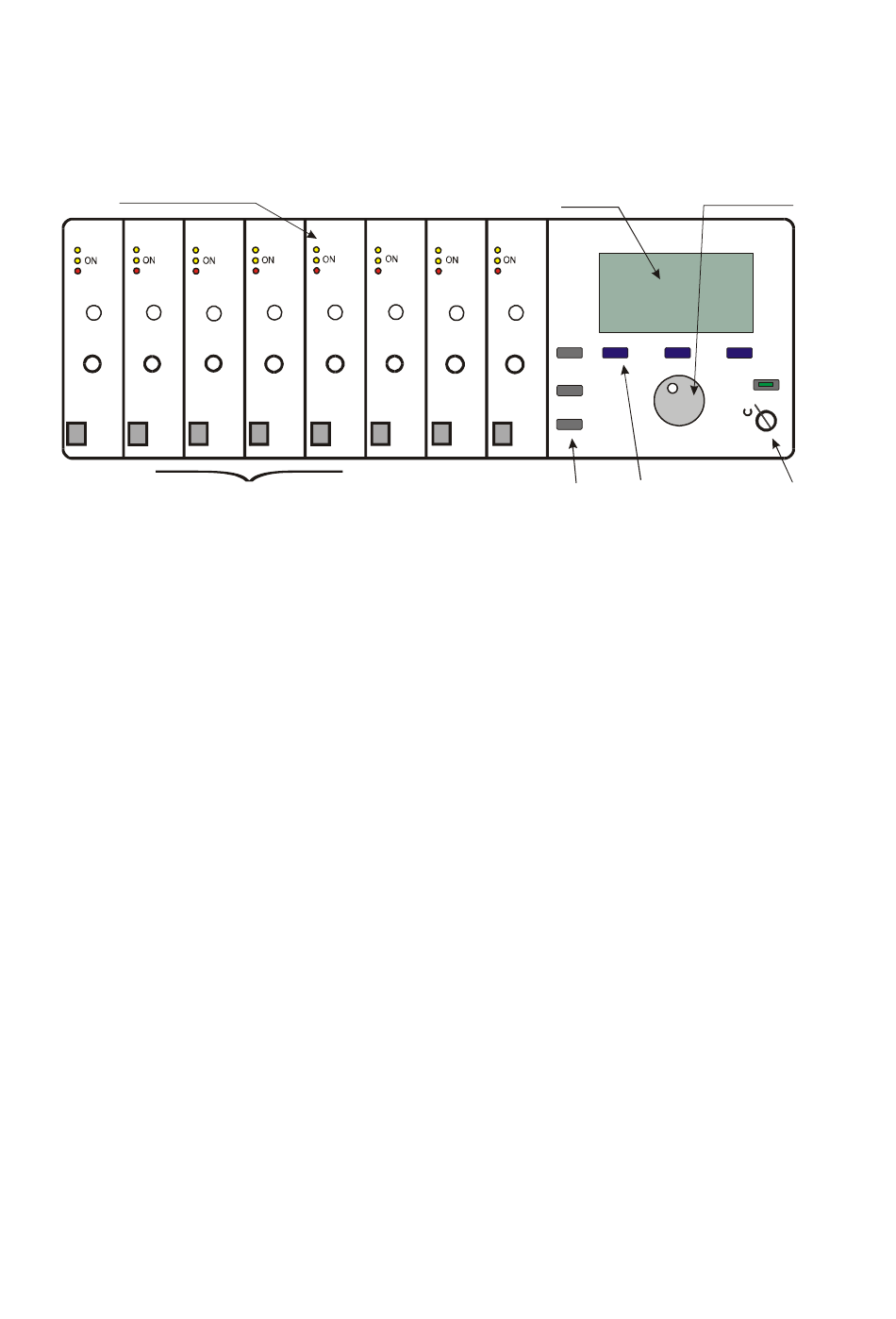

Front panel view of the PRO8000
Display
SEL SEL
ERR ERR
ESC
CHANNEL
ON/OFF
Keyboard
Tuning Knob
LOCAL
I I
Softkeys Mains switch
