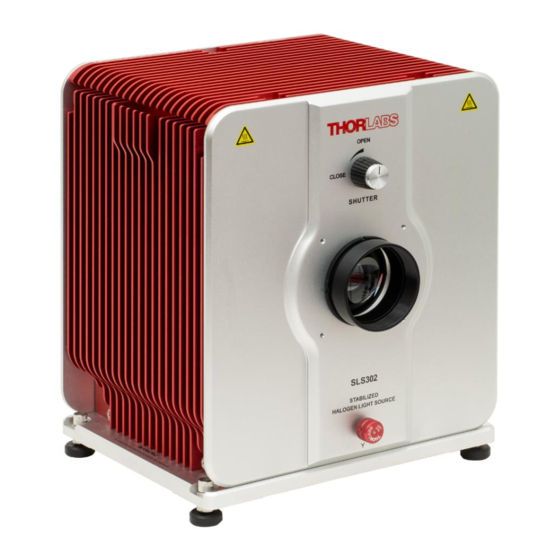

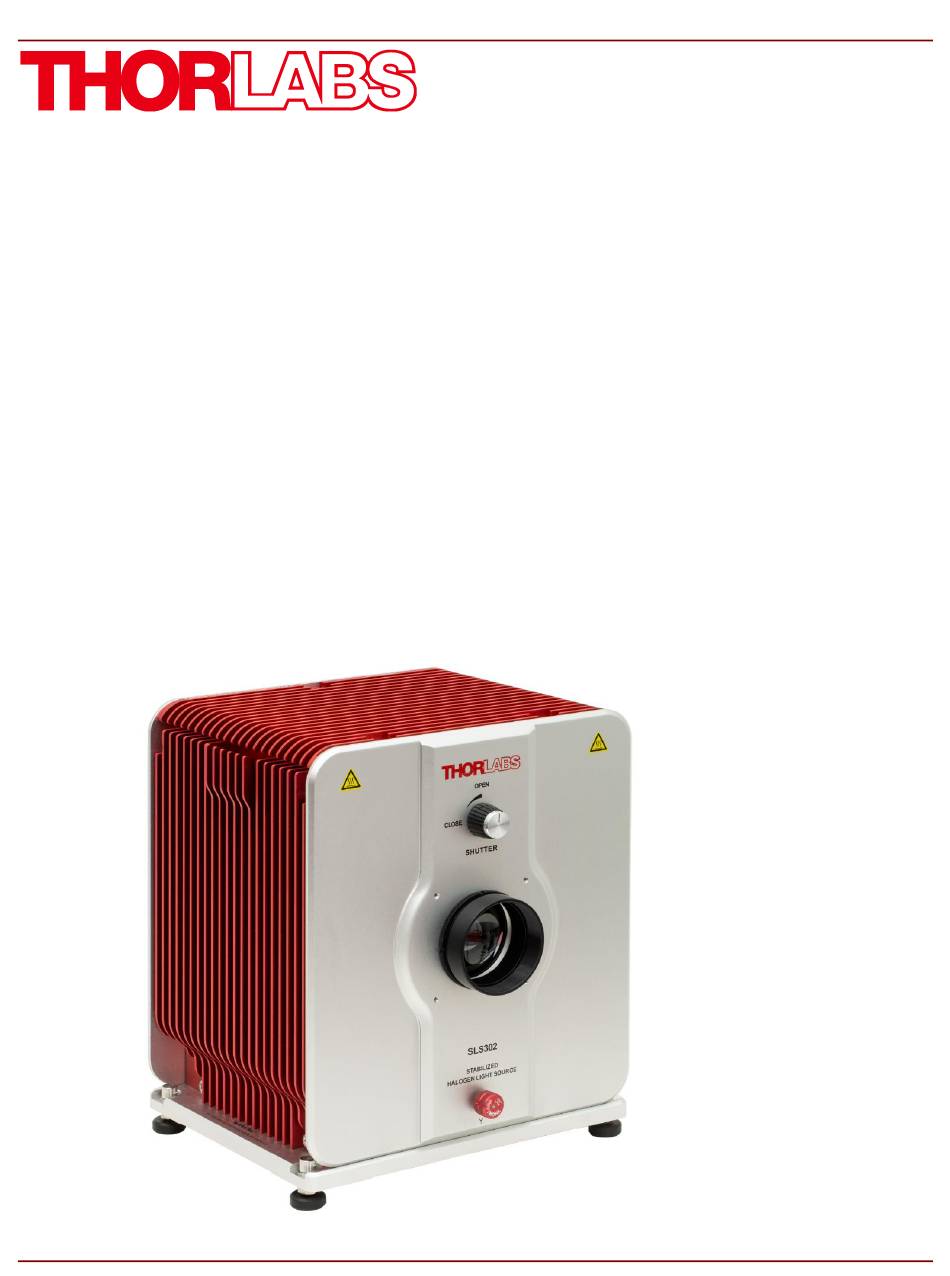

- Page 1 SLS302 Stabilized Tungsten- Halogen Light Source User Guide...
-
Page 2: Table Of Contents
4.6. Application Idea ......................13 4.7. LED Error Indicators ..................... 13 Maintenance ........................14 5.1. Fuse Replacement ......................14 5.2. Lamp Replacement ....................... 14 Specifications ........................17 Mechanical Drawings ......................18 Pin Diagrams ........................19 Certifications and Compliances ..................20 Warranty and RMA Information ..................21 Thorlabs Worldwide Contacts ..................22... -
Page 3: Introduction
Stabilized Tungsten-Halogen Light Source Chapter 1: Introduction Introduction 1.1. Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Danger, Warning, or Caution Hot Surface Shock Warning The CE/UKCA markings on the product are the manufacturer's declaration that the product complies with the essential requirements of the relevant European health, safety, and environmental protection legislation. -
Page 4: Product Overview
Stabilized Tungsten-Halogen Light Source Chapter 2: Product Overview Product Overview 2.1. Planck's Law and Blackbody Radiation A black body is an object that absorbs all incident electromagnetic radiation (e.g., light), no light passes through or is reflected. However, despite the name, a black body will also emit electromagnetic radiation. The radiation of a black body in thermal equilibrium is described by Planck’s Law: 2��ℎ��... -
Page 5: Tungsten-Halogen Lamp
Optical Configuration The SLS302 tungsten-halogen light source has a 150 W halogen lamp. The lamp is mounted inside the lamp housing, at the back focal point of the collimating lens, with the long axis of the filament parallel to the plano surface of the lens, giving a collimated output beam. - Page 6 Stabilized Tungsten-Halogen Light Source Chapter 2: Product Overview The lamp dimensions are given below: Lamp Specifications 13.5 mm Lamp 50 mm Dimensions 30 mm 6.5 mm x 1.3 mm x 3.3 mm Filament Dimensions Filament Turns Rectangular/1.33 mm x 3.3 mm Filament Section View Figure 4...
-
Page 7: Output Stabilization
2.4. Output Stabilization Unlike traditional halogen light sources, the SLS302 source will not suffer either from a gradual decrease or short- term fluctuation in brightness during its lifetime. The SLS302 tungsten-halogen light source is equipped with an internal feedback loop and therefore can ensure constant intensity, low noise, and a long life span. -
Page 8: Getting Started
1 Cable for Connecting Lamp Housing and Controller • 1 Power Cord • 1 4 mm Hex Key 3.2. Unpacking The packaging of the SLS302 light source is illustrated below. Lamp Control Cable Power Cord Cable CCable Lamp Housing Controller Figure 8 Packaging of SLS302 Light Source There are 8 major pieces of foam inserts in the packaging as shown in Figure 8. -
Page 9: Operation Elements
Stabilized Tungsten-Halogen Light Source Chapter 3: Getting Started 3.3. Operation Elements 3.3.1. Lamp Housing Front, Back, & Side Panels Figure 9 SLS302 Lamp Housing • L1. Shutter Control Knob • L2. Collimating Lens • L3. 4-40 Threaded Hole for 60 mm Cage Systems (4 Places) •... -
Page 10: 3.3.2. Controller Front Panel
Stabilized Tungsten-Halogen Light Source Chapter 3: Getting Started 3.3.2. Controller Front Panel Figure 10 Front Panel of SLS302 Controller • C1. Power Switch • C2. Temperature Warning LED • C3. Lamp Status LED • C4. Lamp Lifetime Warning LED 3.3.3. Controller Back Panel... -
Page 11: Setting Up On A Work Surface
Stabilized Tungsten-Halogen Light Source Chapter 3: Getting Started 3.4. Setting Up on a Work Surface Take the lamp out of its packaging and place it onto a table top. All four feet are height adjustable to compensate for the unevenness of a work surface. To adjust the height, use the included 4 mm hex key to loosen and remove the caps on the screws. -
Page 12: Connecting Cables
Stabilized Tungsten-Halogen Light Source Chapter 3: Getting Started Figure 14 Lamp Housing Mounted on a Breadboard 3.5. Connecting Cables First, connect the lamp housing to the controller using the lamp control cable. Please note that there is an arrow marker on both the plug and the socket. Make sure these two markers are aligned as shown below, then lightly press the plug into the socket and turn the sleeve to secure the connection. -
Page 13: Operation
4.3. Stabilized Operation and Monitor Output The SLS302 has a stabilized operation feature that allow it to retain constant optical output throughout the life span of the lamp. However, the output power is NOT user adjustable. The “Analog out” port C9 on the pack panel of the controller provides a voltage output that is proportional to the lamp optical output power. -
Page 14: Lamp Position Adjustment Mechanism
4.5. Lamp Position Adjustment Mechanism Besides the kinematic mirror mount, the SLS302 source has an XYZ manual translation stage built inside the lamp housing for lamp position adjustment, which can compensate for filament position deviations in different lamps. The Z Axis adjustment can also work as an additional collimation adjustment for the output beam. -
Page 15: Application Idea
Chapter 4: Operation 4.6. Application Idea There are four 4-40 threaded holes on the front panel of the lamp housing that allow for integration of Thorlabs’ 60 mm cage systems. Figure 19 shows an application idea with an attached 60 mm cage system. -
Page 16: Maintenance
Stabilized Tungsten-Halogen Light Source Chapter 5: Maintenance Maintenance 5.1. Fuse Replacement The fuse is located in the fuse drawer, C8, above the power inlet, as shown in Figure 11. Please use 3.15 A, 250 VAC, Type “T”, slow blow fuse only. 5.2. - Page 17 Stabilized Tungsten-Halogen Light Source Chapter 5: Maintenance Use the included 4 mm hex key or a 4 mm ball driver to remove the four cap screws on the corners of the side plate, then remove the side plate. Figure 21 Remove Side Plate Loosen the two thumb screws locking the lamp by turning them counterclockwise.
- Page 18 Stabilized Tungsten-Halogen Light Source Chapter 5: Maintenance Pull out the lamp by holding the flat part at the lamp’s base. The lamp can be temporarily stored in the lamp holder inside the lamp housing as shown below. Figure 23 Pull out the Lamp (Left) and Temporary Lamp Holder (Right) To install the new lamp, insert the lamp into the lamp base, tighten the two thumb screws by turning them clockwise, then reinstall the side plate and the four cap screws.
-
Page 19: Specifications
Stabilized Tungsten-Halogen Light Source Chapter 6: Specifications Specifications Specification Value Wavelength Range 360 - 2500 nm Color Temperature 3400 K Color Temperature Stability ±15 K Lamp Electrical Power 150 W Lamp Lifespan (Average) 1000 Hours Filament Dimensions 6.5 mm x 1.3 mm x 3.3 mm Output Optical Power >10 W Typical UV Output (360 - 400 nm) -
Page 20: Mechanical Drawings
Stabilized Tungsten-Halogen Light Source Chapter 7: Mechanical Drawings Mechanical Drawings Figure 24 Lamp Housing Diagram Figure 25 Controller Diagram Page 18 CTN016979-D02... -
Page 21: Pin Diagrams
Stabilized Tungsten-Halogen Light Source Chapter 8: Pin Diagrams Pin Diagrams Connection Lamp Ground Lamp +24 V Ground Monitor PD Signal Signal Ground Ground Ground +12 V Signal Ground Ground 10 Pin Female Connector BNC Female Connector, Monitor Photodiode Out, 0 to 5 V Rev C, March 20, 2024 Page 19... -
Page 22: Certifications And Compliances
Stabilized Tungsten-Halogen Light Source Chapter 9: Certifications and Compliances Certifications and Compliances This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 20 CTN016979-D02... -
Page 23: Warranty And Rma Information
Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user’s responsibility to delete all private data stored on the device prior to disposal. -
Page 24: Thorlabs Worldwide Contacts
Stabilized Tungsten-Halogen Light Source Chapter 11: Thorlabs Worldwide Contacts Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at for our most up-to-date www.thorlabs.com/contact contact information. Corporate Headquarters Product Manufacturer Thorlabs, Inc. Thorlabs China 43 Sparta Ave Room A101, No.100, Lane 2891... - Page 25 www.thorlabs.com...
