Raman Spectroscopy Bundle

8.5.2.6 Hiding the Menus and Full Screen Mode

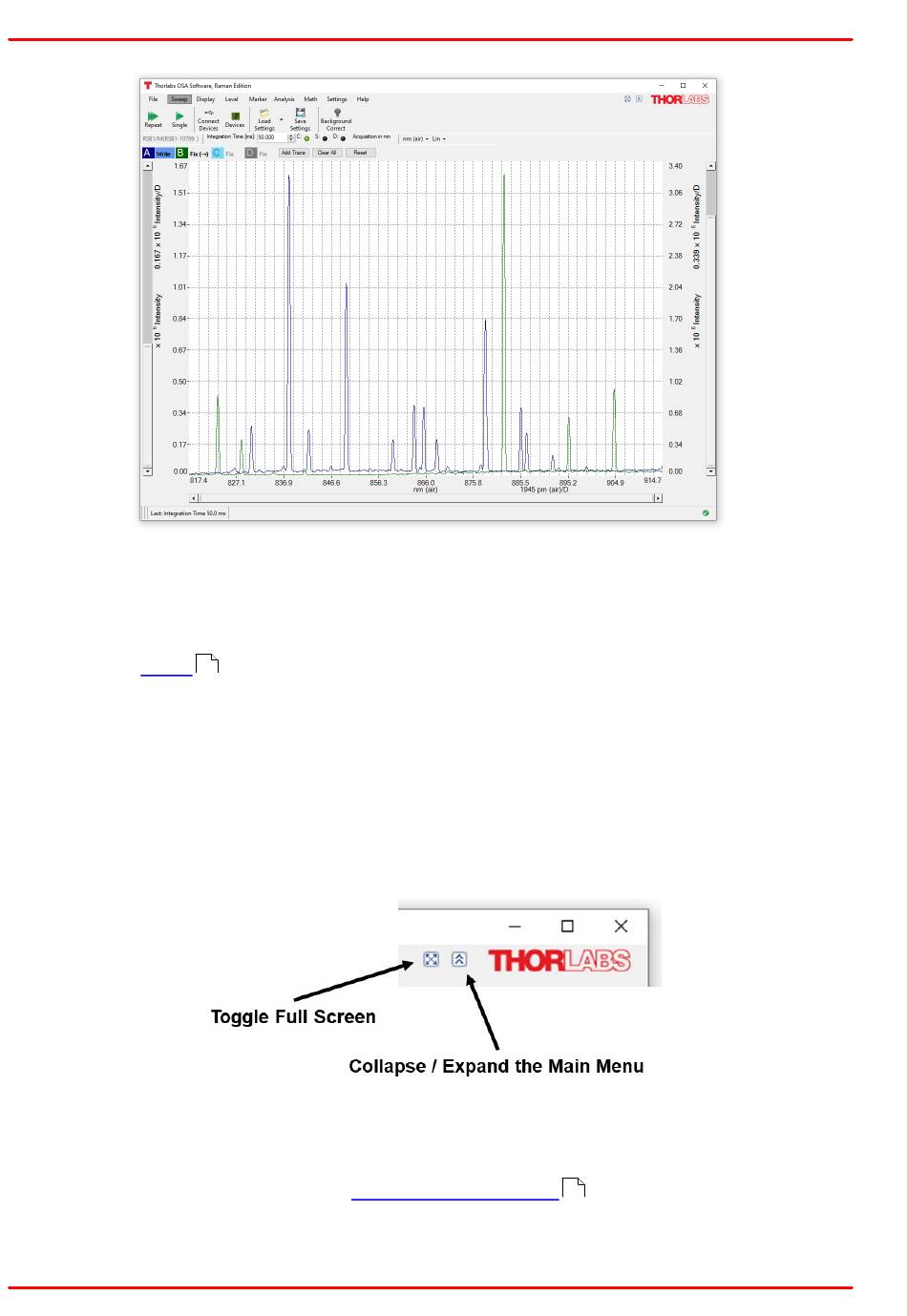

There are two buttons located in the top right corner of the main menu, close to the Thorlabs
logo as shown below
· Toggle Full Screen mode: Switches between full screen mode and regular window
mode.
· Expand/Minimize the Menu: the first time this button is clicked, the main menu will col-
lapse so that the second row is hidden completely and only the labels of the top level
menu are shown. The menu can be expanded again by pressing the same button or by
clicking on any label of the top level menu.

8.5.2.7 Displaying a Split View

The "Display" menu features a combo box, with which additional data can be displayed. Select-
ing the option "Split View" will show a
The two areas show the same data but whereas the displayed ranges in both x and y can be
adjusted in the lower display, the entire data range is displayed in the upper display. The hori-
Page 93
Displaying Data on Both the Primary and Secondary Vertical Axes
.
93
Window options buttons
secondary display area
Chapter 8: Appendix
above the main display area.
94
MTN022733-D02
