Taking a Closer Look

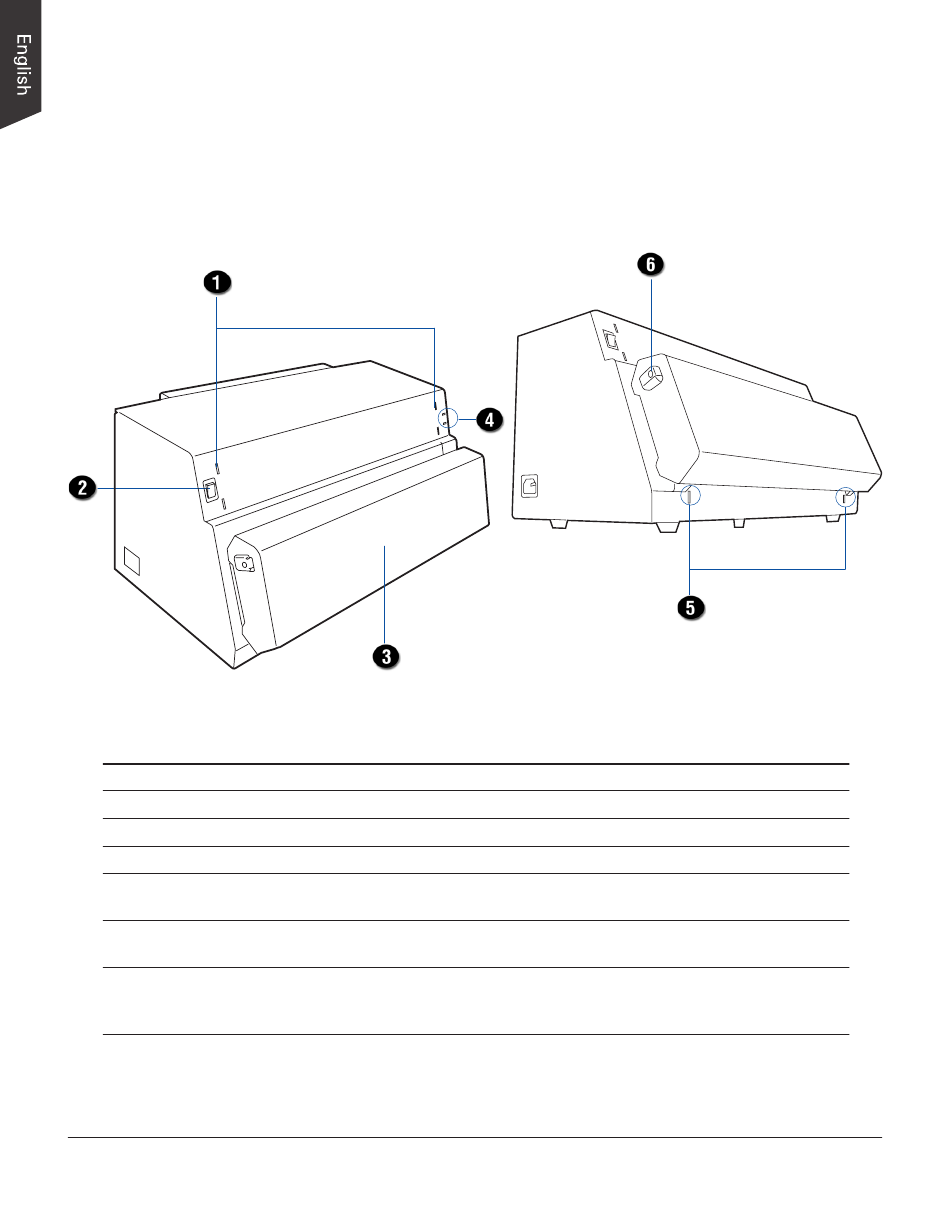

Front / Top / Bottom View

No. Names of Parts
1 Feed Tray Holes
2 Power Switch
3 Front Cover
4 Green/Orange LEDs
5 Output Tray Holes
6 Release Buttons
22 Medi-6000 Plus User's Manual
Functions of Parts
Uses to hook the Feed Tray onto the digitizer.
Turns the digitizer on or off.
Uses to cover inner components of the digitizer.
Indicates the status of the digitizer. For more details, refer to the
"Troubleshooting" section of this manual.
Uses to hook either the Output Guide or the Output Basket onto
the digitizer.
Releases the front cover to open the lamp holder. There are two
Release buttons located on each side of the front cover. Press the
buttons down simultaneously to release the front cover.
