Taking a Closer Look

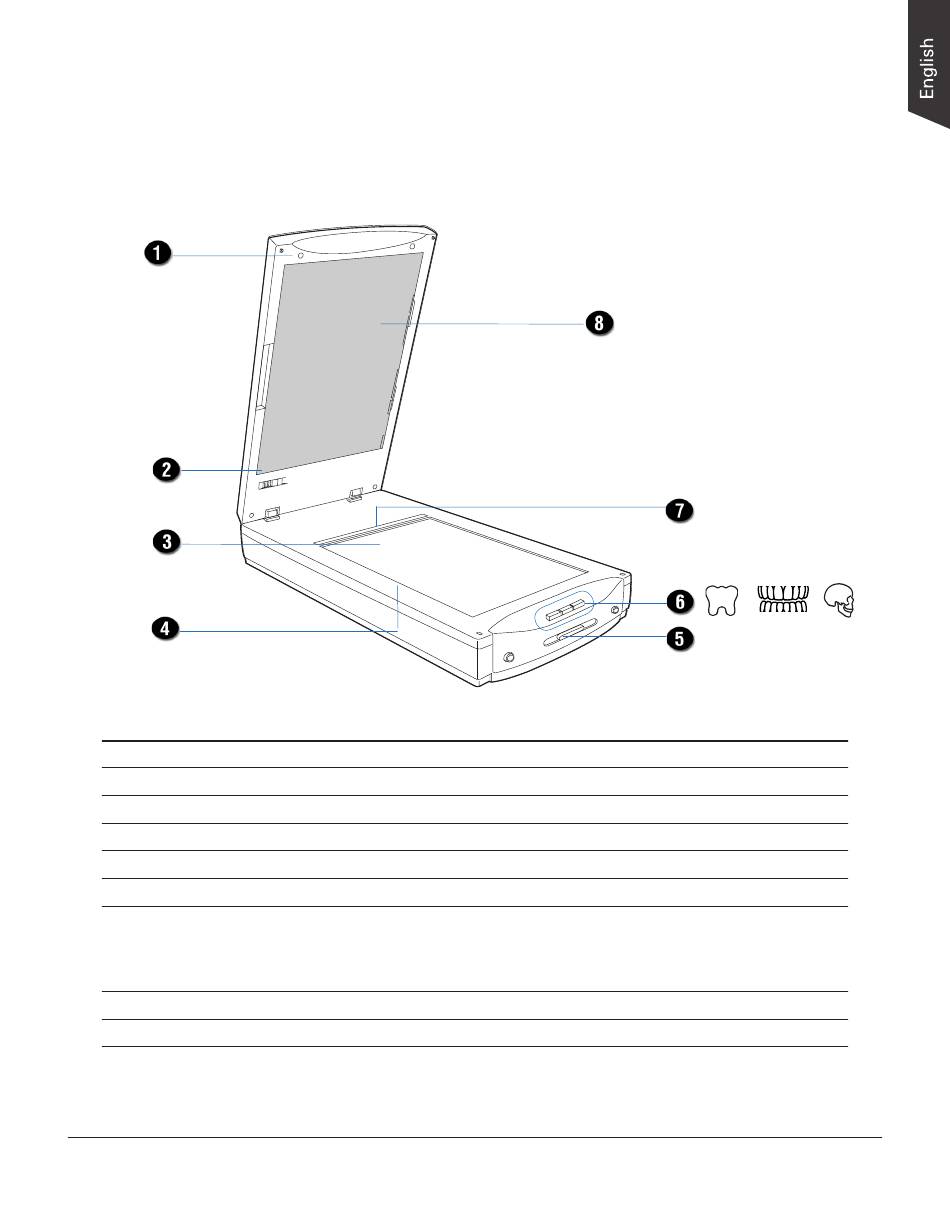

Front/Open View

No.
Names of Parts
1
Digitizer Lid (TMA)
2
Locking/Unlocking switch
3
Glass Surface
4
Vertical Ruler
5
Power button
6
Smart-Scan buttons
7
Horizontal Ruler
8
Black Mat
Functions of Parts
Used to scan dental films.
Used to lock and unlock the TMA.
Scan bed for scanning dental films or reflectives.
Used to measure the length of the images.
Presses to turn on or off the digitizer.
Presses to perform the Smart-Scan function. They function
same as the Smart-Scan button on the software control
panel. These buttons are Intraoral, Panoramic and
Cephalometric.
Used to measure the width of the images.
Used when scanning of reflective materials.
