Assembling Your Film Digitizer

Installing the Feed Tray

Coming with your digitizer, there is a separated Feed Tray which holds the X-ray
films to be fed into the digitizer. Before using the Feed Tray with your digitizer,
you need to assembly it onto the digitizer.
Follow the instructions and graphs below to correctly install the Feed Tray.

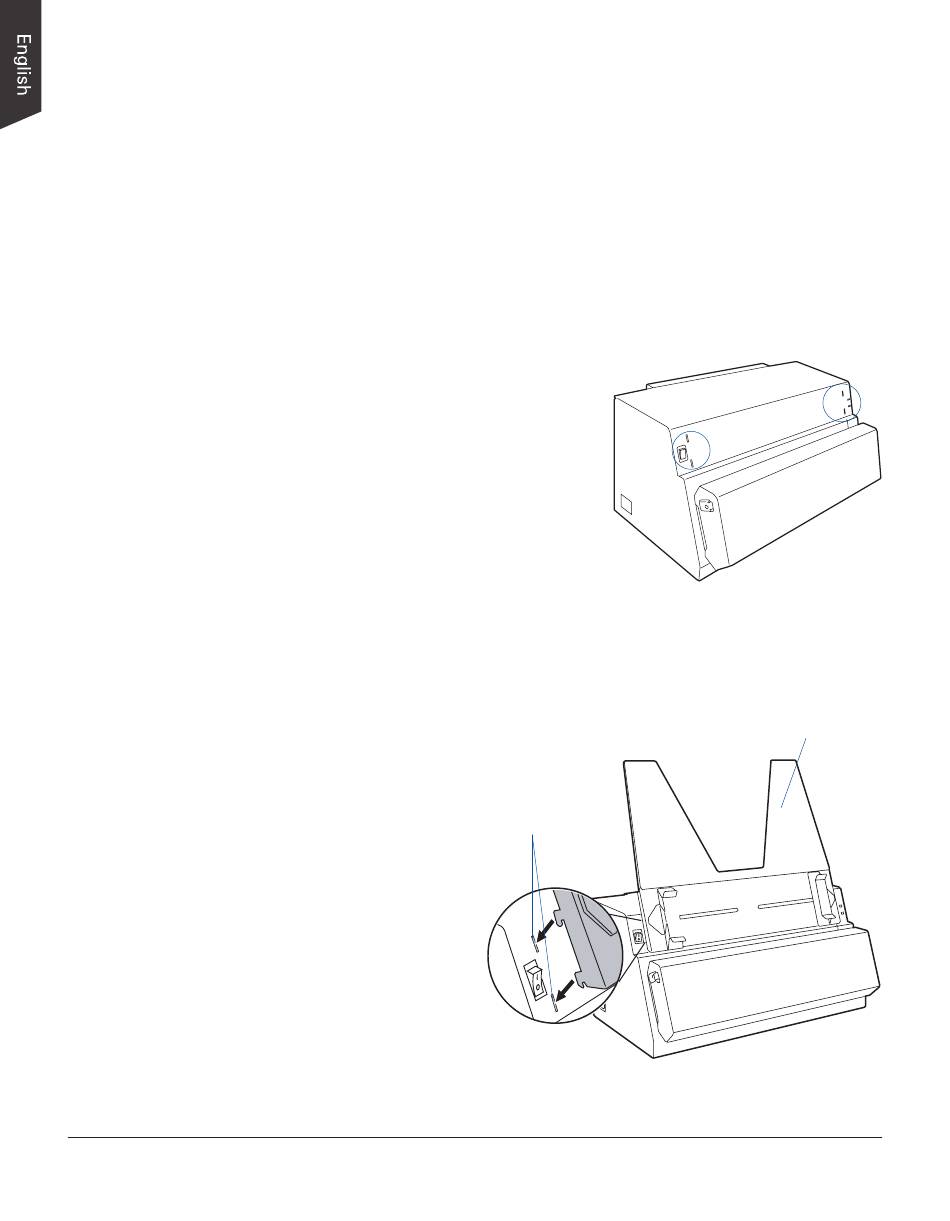

1. Look for two sets of the Feed Tray
2. Insert and push down both sides of
24 Medi-6000 Plus User's Manual
Holes at both ends of the front-top of
the digitizer.
the Feed Tray into its compartment
holes, making sure the Feed Tray
snaps into place.
Feed Tray Holes
Feed Tray
