Taking a Closer Look

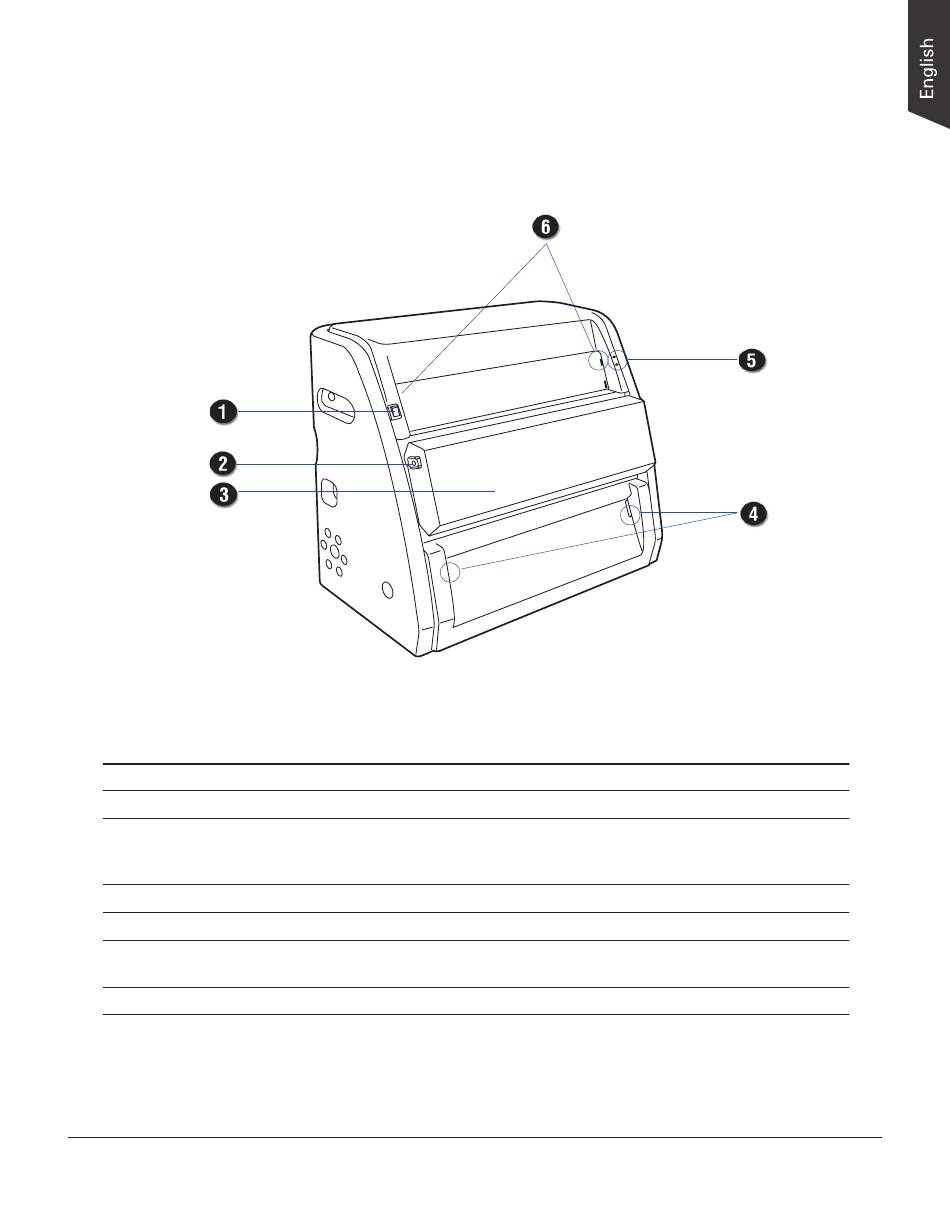

Front View

No.
Names of Parts
1
Power Switch
2
Release Buttons
3
Front Cover
4
Output Tray Holes
5
Green/Orange LEDs
6
Feed Tray Holes
Functions of Parts
Turns the digitizer on or off.
Releases the front cover to open the lamp holder. There are two
Release buttons located on each side of the front cover. Press the
buttons down simultaneously to release the front cover.
Uses to cover inner components of the digitizer.
Uses to hook the Output Tray onto the digitizer.
Indicates the status of the digitizer. For more details, refer to the
"Troubleshooting" section of this manual.
Uses to hook the Feed Tray onto the digitizer.
Medi-7000 User's Manual
17
