Life Fitness Axiom OP-SLCE Assembly Instructions Manual page 20

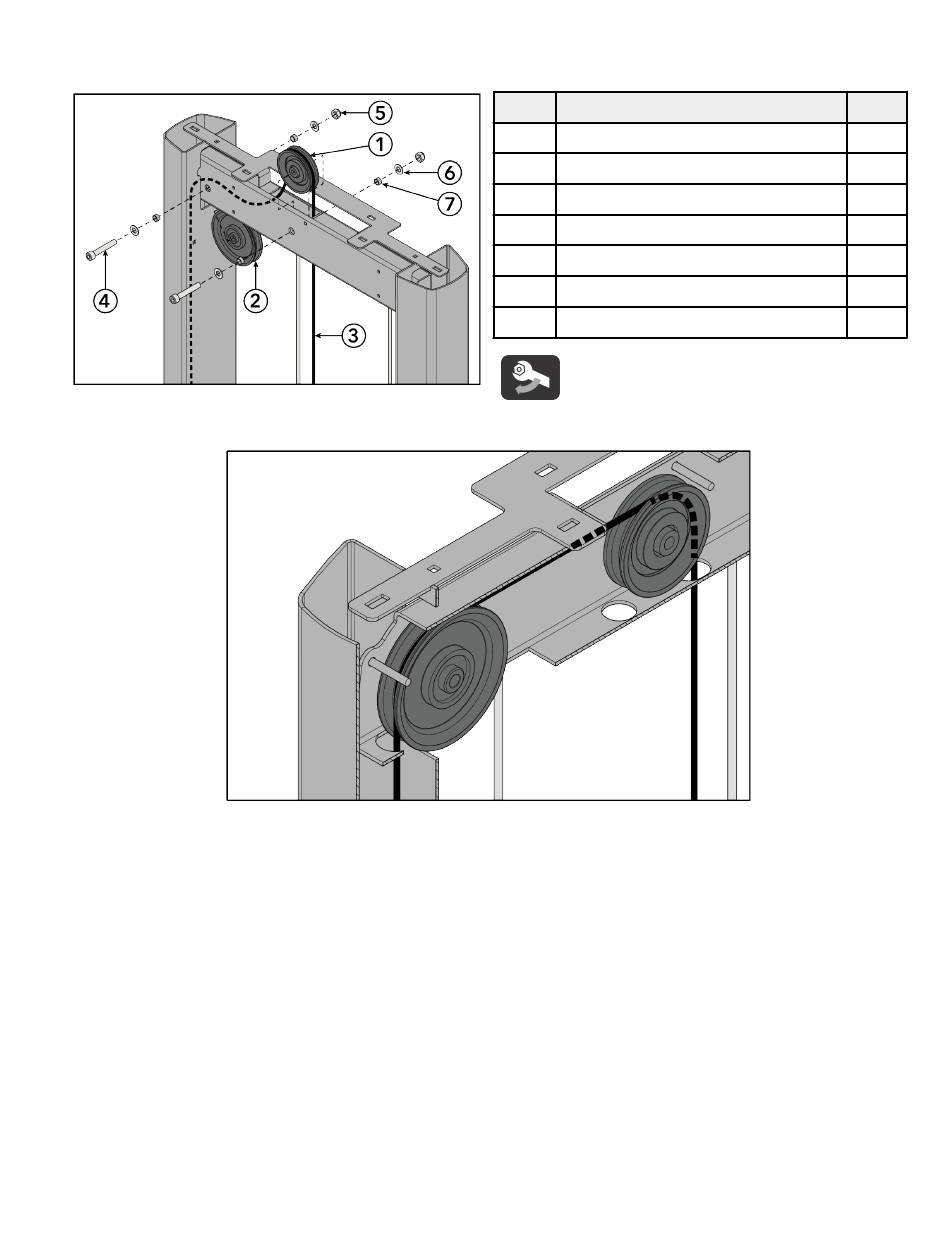

6. Install screws, washers, spacers, and nuts securing the pulleys to the top of the tower frame using an 8mm Allen
wrench and 17mm wrench.
NOTE: Make sure the spacers are centered and inside the tube wall.
NOTE: Make sure cable is routed over the pulleys and underneath the pins in the tower frame.
7. Flex rear shroud into position inside the tower frame.
Item
1
2
3
4
5 Nut, M10 x 1.5, Hex Nylock
6
7
Tighten hardware to 14-16 ft-lb (19-21.7 Nm).
Page 18 of 41
Description
Pulley, 3.5" OD
Pulley, 4.5" OD
Cable
Screw, M10 x 1.5, 55mm
Washer, Flat 3/8" ID
Bushing
Qty.
1
1
1
2
2
4
4
