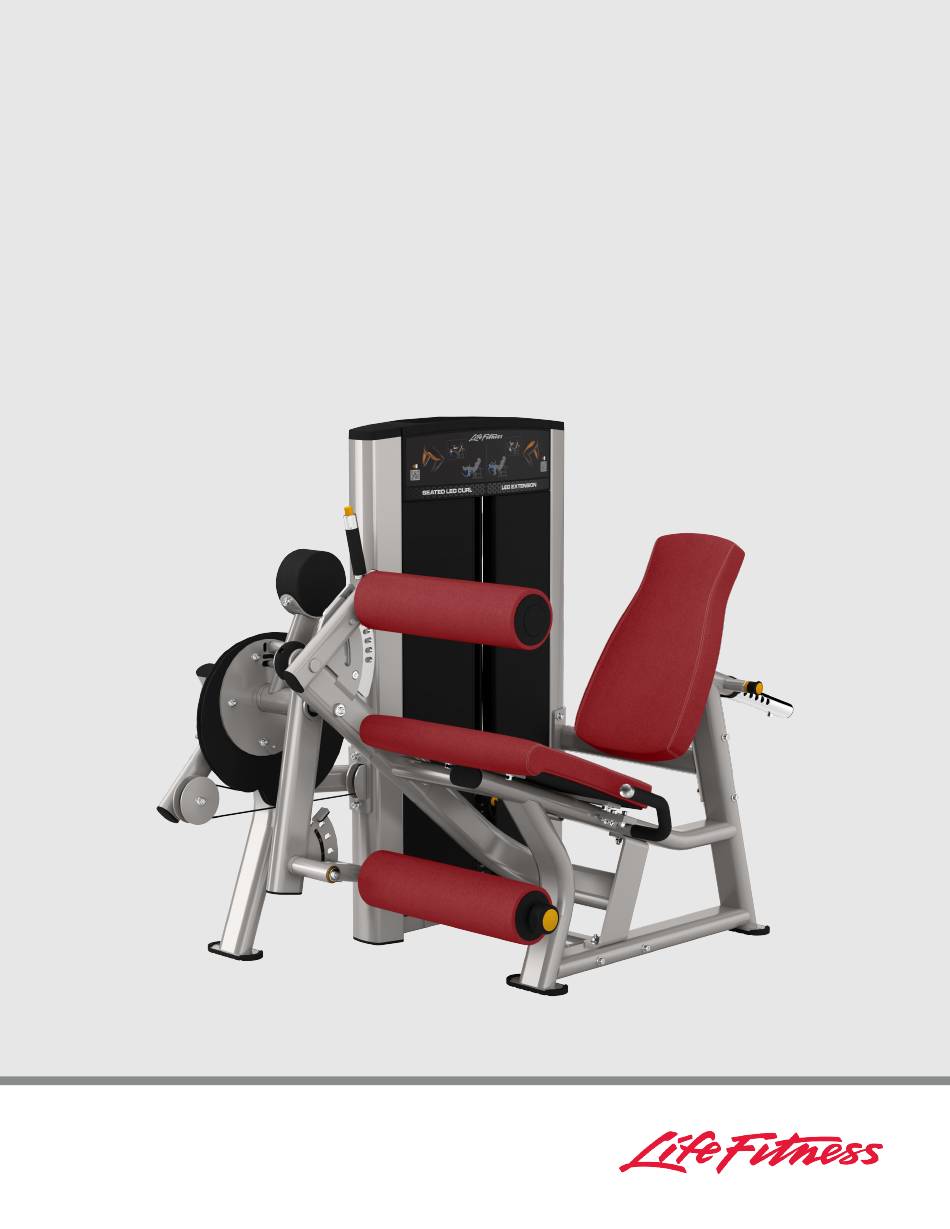

Axiom Series Seated Leg Curl /
Extension
OP-SLCE
Assembly Instructions
1015206-0001 REV AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axiom OP-SLCE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness Axiom OP-SLCE

Summary of Contents for Life Fitness Axiom OP-SLCE

  • Page 1 Axiom Series Seated Leg Curl / Extension OP-SLCE Assembly Instructions 1015206-0001 REV AA...
  • Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
  • Page 4 User and Service Documents Link https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the link above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...

  • Page 5: Table Of Contents

    2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2021, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation.

  • Page 6: Safety Information

    • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness Family of Brands equipment, use only replacement parts supplied by Life Fitness Family of Brands.
  • Page 7 Life Fitness Family of Brands will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made. • Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear.

  • Page 8: Product Labels

    Product Labels General Warning Serial Number Pinch Hazard Page 6 of 41...

  • Page 9: Label Locations

    Label Locations Item Description Qty. General Warning Serial Number Pinch Hazard Page 7 of 41...

  • Page 10: Assembly

    2. Assembly Component and Hardware List OP-SLCE Tower Components Item Description Qty. Tower Frame Guide Rod Increment Weight Guide Rod Rear Shroud Label, Weight Stack Tube Cap Top Cap OP-SLCE Tower Hardware Kit Item Description Qty. Tower Hardware Kit, OP-SLCE Hole Plug, 8.7 mm Hole Plug, ½"...
  • Page 11 OP-SLCE Tower Hardware Kit Optional: Front Shroud Kit Components Item Description Qty. Front Shroud, Left Front Shroud, Right Bottom Cap Optional: Front Shroud Kit Hardware Kit Item Description Qty. Front Shroud Hardware Kit Screw, M4.2 x 0.7, Phillips Screw, M10 x 1.5, 20mm Washer, Flat 3/8"...
  • Page 12 OP-SLCE Components Item Description Qty. Main Frame Assembly Pivot Boom Assembly Bottom Cross Brace Rear Cross Brace Left Handle Assembly Right Handle Assembly Cam Detent Plate Cam Weldment Work Arm Assembly Pulley Arm Assembly Pivot Shaft Counter Weight Thigh Pad Assembly Kicker Assembly Detent Pin Assembly Detent Shaft...
  • Page 13 Item Description Qty. Screw, M4 x 10mm, Phillips Screw, M6, HCS, 50mm Screw, M10 x 1.5, 35mm Flat Head Bolt, M10 x 1.5, 50mm Square Neck Screw, M10 x 1.5, 25mm Screw, M10 x 1.5, 30mm Screw, M10 x 1.5, 30mm Low Head Screw, M10 x 1.5, 35mm Screw, M10 x 1.5, 70mm Screw, M10 x 1.5, 110mm...

  • Page 14: Tools Required

    OP-SLCE Hardware Kit Tools Required • 7/16" Wrench • 10 mm Wrench • 17 mm Wrench • 24 mm Wrench • 7 mm Allen wrench • 8 mm Allen wrench • Torque wrench • 10 mm Socket wrench • 10 mm Ratchet wrench •...

  • Page 15: Assembly Procedure

    Assembly Procedure Two people will be required for this procedure. TIP: Read and understand all instructions thoroughly before assembling this unit. Check all items carefully. If there is damage, see the Customer Service section of this manual for proper procedure to return, replace, or reorder parts. Assemble Frame Components 1.
  • Page 16 3. Install screws, washers, and locknuts securing the pivot boom assembly to the main frame assembly using an 8mm Allen wrench and 17mm wrench. Item Description Qty. Pivot Boom Assembly Main Frame Assembly Screw, M10 x 1.5, 30mm Washer, Flat 3/8" Nut, M10 x 1.5, Hex Nylock Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm).
  • Page 17 7. Install screws and washers securing the rear cross brace to the tower frame using an 8mm Allen wrench. Item Description Qty. Rear Cross Brace Tower Frame Screw, M10 x 1.5, 25mm Washer, Flat 3/8" Hand tighten hardware. 8. Install screws, washers, and locknuts securing the main frame assembly to the rear and bottom cross braces using an 8mm Allen wrench and 17mm wrench.
  • Page 18 Assemble Tower 1. Install the increment weight bumper to the bottom plate of the tower frame. Item Description Qty. Increment Weight Bumper Tower Frame 2. Slide increment weight guide rods through the top of the tower frame and down through the clips in the increment weight.
  • Page 19 4. Install nuts and washers securing the increment weight guide rods to the top plate of the tower frame using a 7/16" wrench. Item Description Qty. Nut, ¼" Nylock Washer, Flat ¼" ID Increment Weight Guide Rod Tighten hardware to 16-20 in-lb (1.8-2.2 Nm). 5.
  • Page 20 6. Install screws, washers, spacers, and nuts securing the pulleys to the top of the tower frame using an 8mm Allen wrench and 17mm wrench. NOTE: Make sure the spacers are centered and inside the tube wall. Item Description Qty. Pulley, 3.5"...
  • Page 21 8. Starting at the top, press the shroud retainers into the rear shroud securing it to the tower frame. Item Description Qty. Shroud Retainer Rear Shroud 9. NOTE: OPTIONAL: If your product does not include front shrouds, skip this step. Install screws and washers securing the bottom cap to the bottom of the tower frame using an 8mm Allen wrench.
  • Page 22 11. NOTE: OPTIONAL: If your product does not include front shrouds, skip this step. Install screws and shroud retainer grommets into the side tubes of the tower frame using a Phillips screwdriver. Item Description Qty. Grommet, Shroud Retainer Screw, M4.2 x 0.7, Phillips Tighten hardware to 10-13 in-lb (1.1-1.5 Nm).
  • Page 23 14. Place guide rods with weight stack cushions into the holes at the bottom of the tower frame. Item Description Qty. Guide Rod Weight Stack Cushion 15. Lean guide rods outwards and slide weight stack down guide rods onto weight stack cushions. Slide head plate assembly down guide rods and onto weight stack.
  • Page 24 16. Tip guide rods back into an upright position in the tower frame. Compress guide rod housings onto the springs and guide rods and fit up into the top of the tower frame. Item Description Qty. Guide Rod Housing Spring Guide Rod 17.
  • Page 25 18. Thread cable end through the jam nut and into the head plate bayonet. See Cable Handling Guide for details. Item Description Qty. Cable Nut, M16 Hex Jam Head Plate Bayonet NOTE: Check proper thread engagement. To do so, attempt to pass a 7mm Allen wrench through the portal in the head plate bayonet.
  • Page 26 Install Cam and Work Arms 1. Slide pivot shaft into the pivot boom assembly. 2. Install screw and washer securing the pivot shaft to the pivot boom assembly using a 7mm Allen wrench. Item Description Qty. Pivot Shaft Pivot Boom Assembly Washer, Flat 30mm Screw, M10 x 1.5, 30mm Low Head Hand tighten hardware.
  • Page 27 4. Slide bearing housing caps, .403 spacers, work arm assembly, .653 spacers, cam assembly, and pulley arm assembly onto the pivot shaft. Item Description Qty. Pivot Shaft Bearing Housing Cap with Hole Spacer, .403" Work Arm Assembly Spacer, .653" Cam Assembly Pulley Arm Assembly NOTE: Make sure pulley arm assembly is aligned to rest on top of the bumper bracket on the cam assembly.
  • Page 28 7. Install screw and washer securing the thigh pad assembly to the pivot boom assembly using a 7mm Allen wrench. Item Description Qty. Thigh Pad Assembly Pivot Boom Assembly Screw, M10 x 1.5, 30mm Low Head Washer, Flat 30mm Bearing Housing Cap Tighten hardware to 14-16 ft-lb (19-21.7 Nm).
  • Page 29 4. Install screws and washers securing the pulley support assembly to the tower frame using an 8mm Allen wrench. Item Description Qty. Pulley Support Assembly Pivot Shaft Tower Frame Screw, M10 x 1.5, 25mm Washer, Flat 3/8" Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm). 5.
  • Page 30 6. Route cable around the pulley on the pulley arm assembly and into the cam. 7. Install cable clip securing the cable to the cam. Item Description Qty. Cable Clip Cable Page 28 of 41...
  • Page 31 8. Install screws and washers securing the cable retainer service plate to the cam detent plate using a Phillips screwdriver. Item Description Qty. Cable Retainer Service Plate Washer, M6 Screw, M4 x 10mm, Phillips Tighten hardware to 8-10 in-lb (0.9-1.1 Nm). Install Front and Top Caps 1.
  • Page 32 2. Install screws securing the front cap to the tower frame using a 10 mm socket wrench and ratchet. NOTE: Screw heads can be accessed from the top or bottom. Item Description Qty. Front Cap Screw, M6, HCS, 50 mm Tighten hardware to 10-13 in-lb (1.1-1.5 Nm).
  • Page 33 Install Pads 1. Place spring pin on the end of the detent shaft. Item Description Qty. Spring Pin Detent Shaft 2. Thread detent shaft into the kicker assembly. 3. Slide shaft collar and roller pad assembly onto the kicker assembly. Item Description Qty.
  • Page 34 7. Slide shaft collar and roller pad assembly onto the thigh pad assembly. Item Description Qty. Roller Pad Assembly Thigh Pad Assembly Shaft Collar Roller Pad Plate Screw, M10 x 1.5, 35mm Bearing Housing Cap Tighten hardware to 40-50 in-lb (4.5-5.6 Nm). 8.
  • Page 35 13. Install screws to the seat back assembly using an 8mm Allen wrench. Item Description Qty. Seat Back Assembly Screw, M10 x 1.5, 25mm Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm). 14. Install screws and washers securing the back pad to the seat back assembly using an 8mm Allen wrench. Item Description Qty.

  • Page 36: Product Information

    3. Product Information Specifications Machine Weight: 601 lbs. 273 kg. Size (L x W x H): in. = 70 x 46 x 53 cm = 178 x 117 x 135 Live Area (L x W x H): in. = 100 x 70 x 77 cm = 254 x 178 x 196 Max User Weight: 300 lbs.

  • Page 37: Cable Handling Guide

    WARNING: Use of non certified “techs” note: Service warranties may be void if a non-Life Fitness-certified technician performs service work. Replacement of any strength cables should be performed by a Life Fitness certified technician.

  • Page 38: Tensioning Cable

    Tensioning Cable Cable should have enough tension so it stays seated into the pulley but not so tight that it pulls the head plate off the weight plate below it. 1. If the head plate has lifted, loosen the jam nuts at the terminations and loosen the threaded plugs a half turn until the head plate comes to rest on the weight plate below.

  • Page 39: Strength Cable Wear Guide

    Strength Cable Wear Guide Replace cable at first sign of any of the following: FRACTURES: Casing can crack or fracture under strains during use. Any crack in the casing merits cable replacement even if no wire rope is exposed. Be especially observant for fractures near the components on the cable assembly - IE.

  • Page 40: Bolt To Floor Guide Introduction

    5. Bolt to Floor Guide Introduction Life Fitness designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over.

  • Page 41: Anchor Specifications

    3000psi (20 N/mm2) beyond anchor length Pullout Force Life Fitness specifies Hilti ™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table.
  • Page 42 3. Wearing protective glasses, drill down into the flooring to the required depth as perpendicular as possible, ensuring that the foot thickness is being accounted for; refer to Anchor Selection and Foot Dimensions. 4. Insert fastener and tighten to 18 Foot-Pounds (24Nm) for 1/4” (6mm) anchor or 40 Foot-Pounds (54Nm) for 3/8” (8mm) anchor.

  • Page 43: Foot Dimensions

    Foot Dimensions Use below image to determine foot specifications. Page 41 of 41...
