Summary of Contents for Life Fitness Arctic Silver 95S

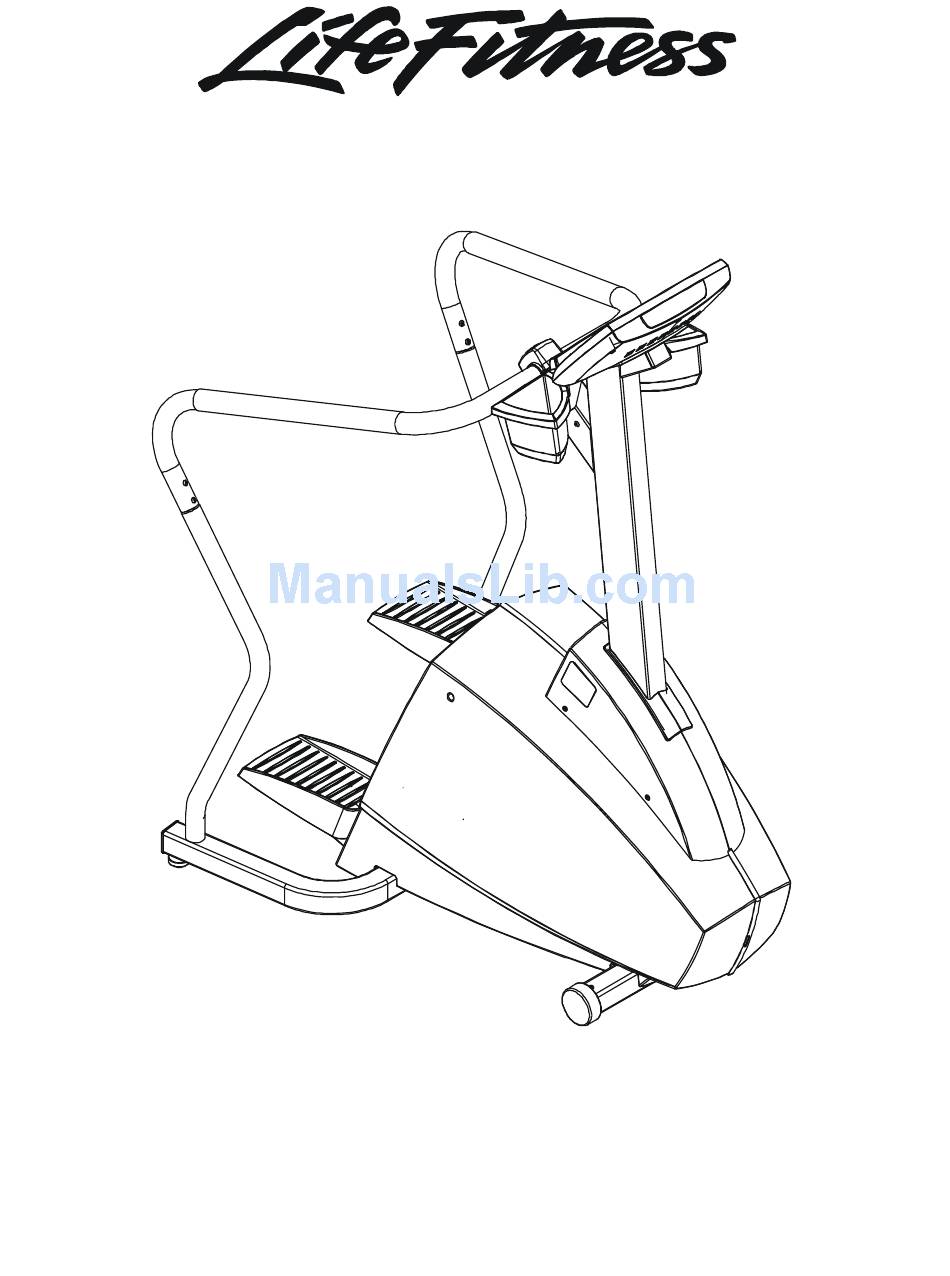

- Page 1 ARCTIC SILVER 95Si Stairclimber Customer Support Services PARTS MANUAL rev 09 Sep 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER 95Si 95S-0XXX-02 CONTENTS S/N ACF100000 and up Page Console Components...4 Frame Components ...5 Shrouds and Pedal Tube...6 Pedal Assembly ...7 Clutch/Shaft/Pulley Assembly ...8 Left Clutch Assembly ...9 Crossover Pulley Assembly ... 10 Alternator Assembly ... 11 Guide Rollers... 12 Power Control Board and Resistors... - Page 3 ARCTIC SILVER 95Si Miscellaneous 0.5 oz. Bottle w/Applicator Description Operation Manual M051-00K47-A025 Hardware Bag AK47-00106-0000 Touch-up Paint: Spray Can 0017-00008-0204 0017-00008-0205 0.33 oz. pen 0017-00008-0206 Service Manual M051-00K47-A013 95S-0XXX-02 S/N ACF100000 and up Part No.
-
Page 4: Console Components
ARCTIC SILVER 95Si Console Components Lower Console Board Cable AK63-00038-0000 Console Case Assembly AK63-00121-0001 Phillips Screws(17) 0017-00101-1650 Language Eng Met Ger Met Spn Met Jap Met Frn Met Itl Met Dut Met Por Met Upper Console PC Board A084-92219-A005 Lower Console PC Board B084-92222-B000 Battery Door... -
Page 5: Frame Components
ARCTIC SILVER 95Si Frame Components Console Mounting Screws 0017-00101-1744 Accessory Tray 0K63-01030-0001 Mounting Screws 0017-00101-1744 Mono-Column AK47-00068-0003 Bull Horn w/HR - RT AK47-00110-0001 Bull Horn w/HR - LT AK47-00110-0002 Wheel w/Bearings Handlebar AK63-00016-0000 Hex Screws(2) Wheel Insert 0017-00101-0933 0K47-01085-0000 95S-0XXX-02 S/N ACF100000 and up Handlebar AK47-00057-0002... -
Page 6: Shrouds And Pedal Tube
ARCTIC SILVER 95Si Shrouds and Pedal Tube Mono-Column Shroud AK47-00082-0001 Phillips Pan Screw(2) 0017-00101-1769 Phillips Pan Screws(2) 0017-00101-1764 Center Shroud 0K47-01165-0000 Decal; ISO Track 0K47-01181-0000 Phillips Pan Screw(9) 0017-00101-1769 Track Cover Bracket Right Shroud 0K47-01146-0001 AK47-00111-0001 Bracket Screw 0017-00101-1763 Track Cover 0K47-01164-0000 Cover Screw(2) 0017-00101-1763... -
Page 7: Pedal Assembly
ARCTIC SILVER 95Si Pedal Assembly Side Track Roller 0K47-01084-0000 Roller Sleeve(2) Side Track Roller 0K47-01138-0000 0K47-01084-0000 Roller Sleeve (2) 0K47-01136-0000 Track Roller(4) w/Busshing Assy AK47-00087-0000 Thin Lock Nut(2) 0017-00103-0324 Low Head Terminator Screw(2) 0K47-01153-0000 Thrust Washer 0K47-01144-0000 Washer 0K47-01151-0000 Mono Roller & Shaft Assembly AK47-00071-0000 Side Roller Hex Bolt(4) 0017-00101-1609... -
Page 8: Clutch/Shaft/Pulley Assembly
ARCTIC SILVER 95Si Clutch/Shaft/Pulley Assembly Clutch/Shaft/Pulley Assy. AK47-00006-0000 E-ring 0017-00100-0107 Special Thrust Washers Hardened Thrust Washers 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 95S-0XXX-02 S/N ACF100000 and up Special Thrust Washer(3) 0K47-01104-0000... -
Page 9: Left Clutch Assembly
ARCTIC SILVER 95Si Left Clutch Assembly Hardened Thrust Washers(3) 0K47-01105-0000 Special Thrust E-Ring Washer Special Hardened Thrust Thrust Washer Washer 95S-0XXX-02 S/N ACF100000 and up Left Clutch/Sprocket Assy. AK47-00043-0002 E-Rings(2) 0017-00100-0107... -
Page 10: Crossover Pulley Assembly
ARCTIC SILVER 95Si Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Lock Nut 0017-00103-0025 Magnet 118E-00001-0124 Screw 0017-00101-1148 Tensioning Bolt 0017-00101-0928 Frame 0017-00103-0026 Intermediate Pulley Bracket 0K47-01052-0000 Reed Switch Bolts(2) and Cable Assy. 0017-00101-1048 AK63-00050-0000 95S-0XXX-02 S/N ACF100000 and up Washer 0017-00104-0043 Bolt 0017-00101-1717... -
Page 11: Alternator Assembly
ARCTIC SILVER 95Si Alternator Assembly Locking Nut 0017-00103-0117 Alternator Strap 0K47-01053-0000 Alternator Belt 0K47-01106-0000 Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Washer 0017-00104-0043 95S-0XXX-02 S/N ACF100000 and up Alternator Pivot Bolt 0017-00101-0962 Tensioning Bracket Bolt 0017-00101-0986... -
Page 12: Guide Rollers
ARCTIC SILVER 95Si Guide Rollers Return Spring Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Pulley Spring Shaft 0K47-01154-0000 Bolt 0017-00101-1048 0017-00103-0025 Idler w/Bearing(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00103-0025 95S-0XXX-02 S/N ACF100000 and up Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1098... -
Page 13: Power Control Board And Resistors
ARCTIC SILVER 95Si Power Control Board and Resistor Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-B000 Phillips Screw(4) 0017-00101-0823 95S-0XXX-02 S/N ACF100000 and up Resistor Assembly AK47-00037-0000 PCB Bracket 0K47-01087-0000... -
Page 14: Polar Receiver Assembly
ARCTIC SILVER 95Si Polar Receiver Assembly Electrode, Bottom AK69-00140-0001 Screws (2) 0017-00101-1277 Screw 0017-00101-1844 0K63-01114-0001 Electrode, Top AK69-00139-0001 Polar Receiver SK40-00045-0001 Screw 0017-00101-1761 95S-0XXX-02 S/N ACF100000 and up Polar Cap 0K47-01075-0002 Isolator 0K36-01059-0002... -
Page 15: Cables
ARCTIC SILVER 95Si Cables Domestic 120/60 Battery Charge w/Cord Universal Battery Charger w/o Line Cord Description Line Cord 220V/60Hz Line Cord 100V/50Hz Line Cord 240+ Line Cord 220V/50Hz Line Cord 200V/50Hz Line Cord 230V/50Hz 95S-0XXX-02 S/N ACF100000 and up Part No. 118E-00001-0165 118E-00001-0166 0017-00003-0704...
