Evaluation Board User Guide

EVALUATION BOARD SOFTWARE

The control software for the
on the CD included in the evaluation kit. To install the software,
see the Software Installation section.
To run the software, first connect the board to the USB port of
the PC and then click the ADF4150 file on the desktop or in the
Start menu (note that the revision number may be included in
the file name). Confirm that USB OK is displayed at the top
right corner of the software front panel display window (see
Figure 17). Otherwise, the software has no connection to the
evaluation board.
EVAL-ADF4150EB1Z is available

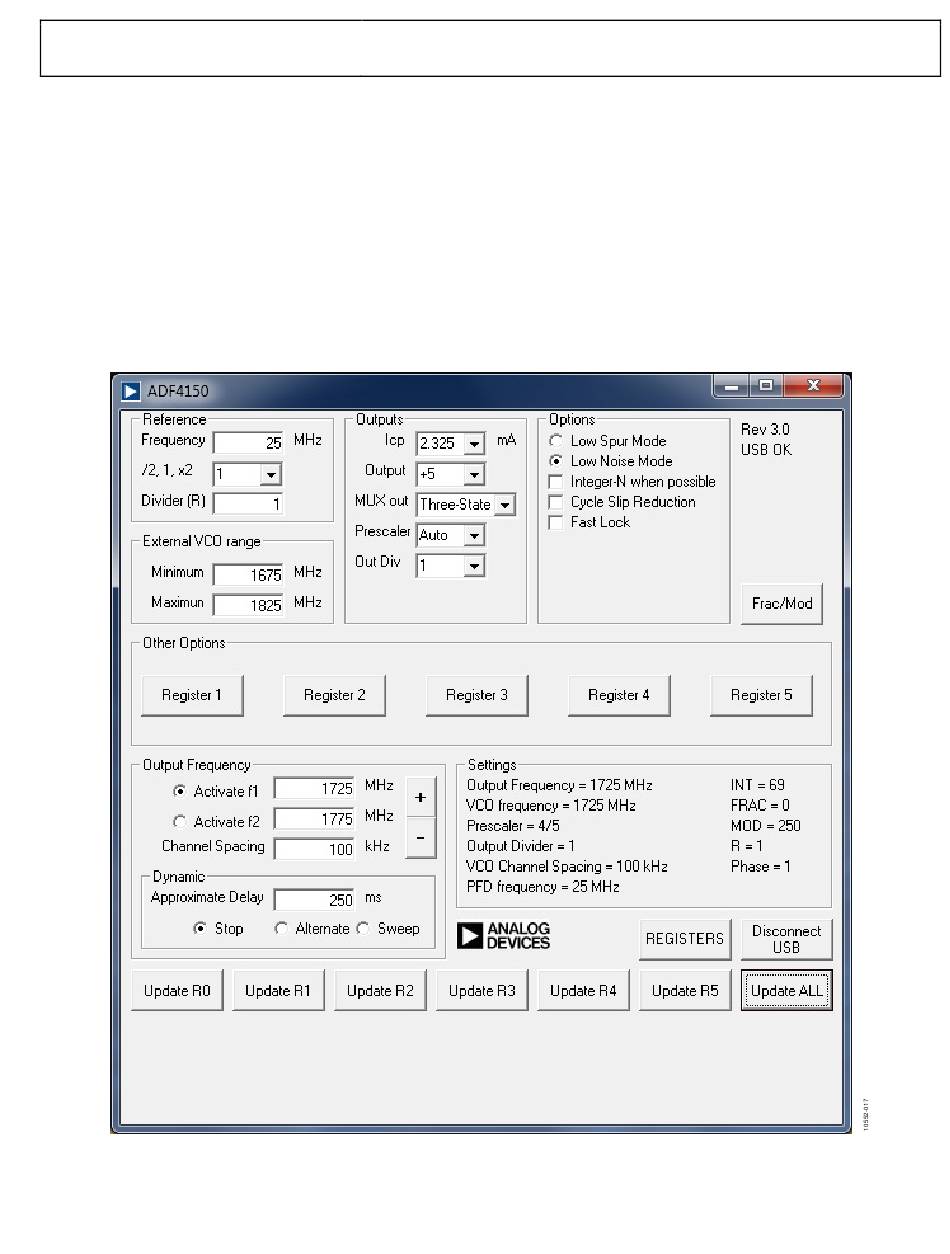

Figure 17. Software Front Panel Display
Note that, when connecting the board, it takes about 5 sec to
10 sec for the status label to change.
If the software is started before the board is connected to USB
port, an error window opens, informing that the USB device was
not found, and the No USB message is displayed in the top right
corner of the software front panel window. In this case, connect
the board to the USB port and click the Connect USB button.
Rev. 0 | Page 9 of 24
UG-380
