Gently push the USB Cables coming out of the back of the
3.
Base Clamp Assembly into the two Cable Grooves on the
back of the Base Clamp Assembly.

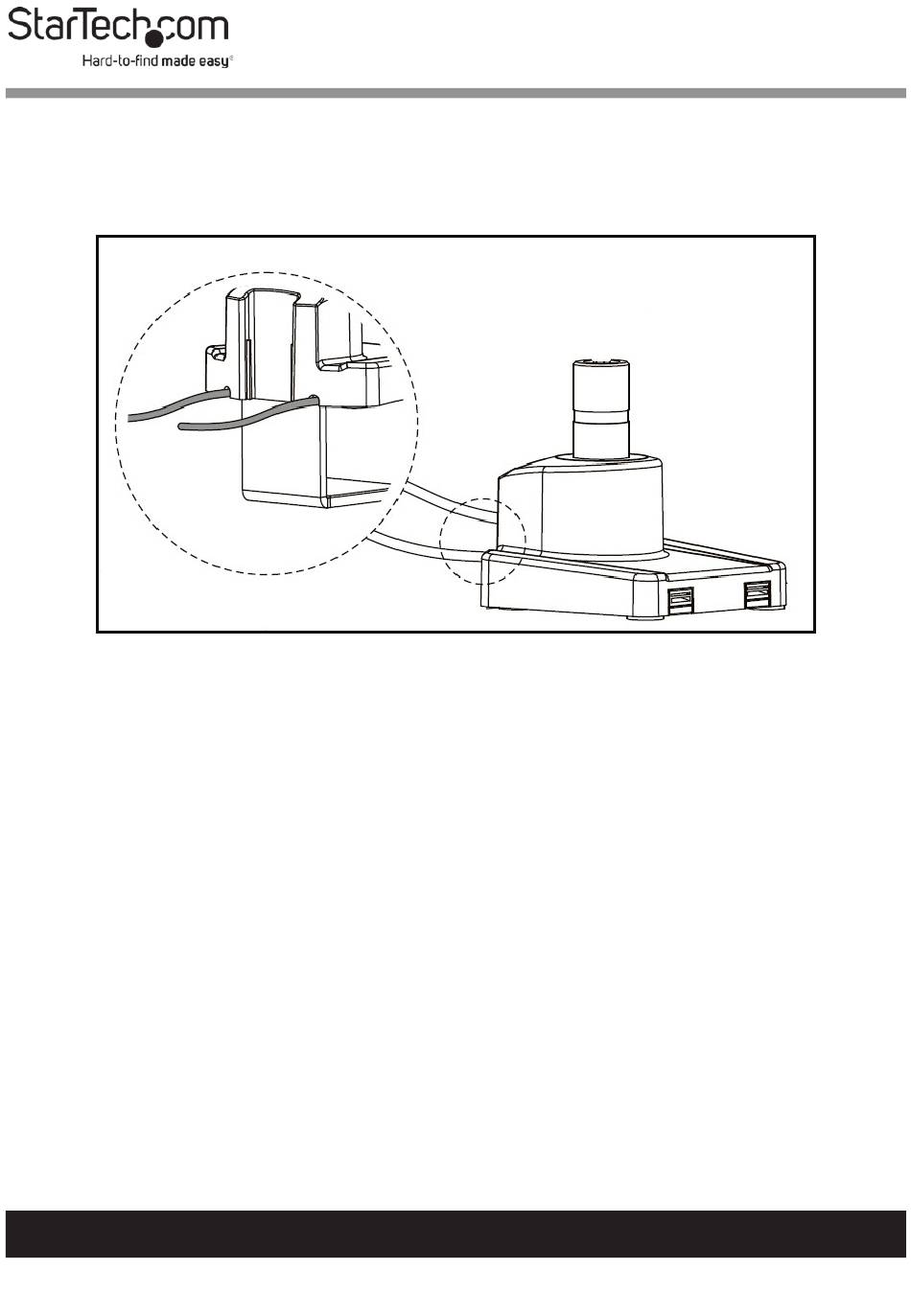

Routing the USB Cables Through the Cable Grooves
Slide the C-Clamp over the edge of the Mounting Surface.
4.
The C-Clamp accommodates ranges from 10 mm (.3") to 50
mm (1.9").
While supporting the C-Clamp under the Mounting
5.
Surface, use the 6 mm Hex Key to tighten the C-Clamp
Screw until the C-Clamp Plate is pressed tightly against the
bottom of the Mounting Surface.
