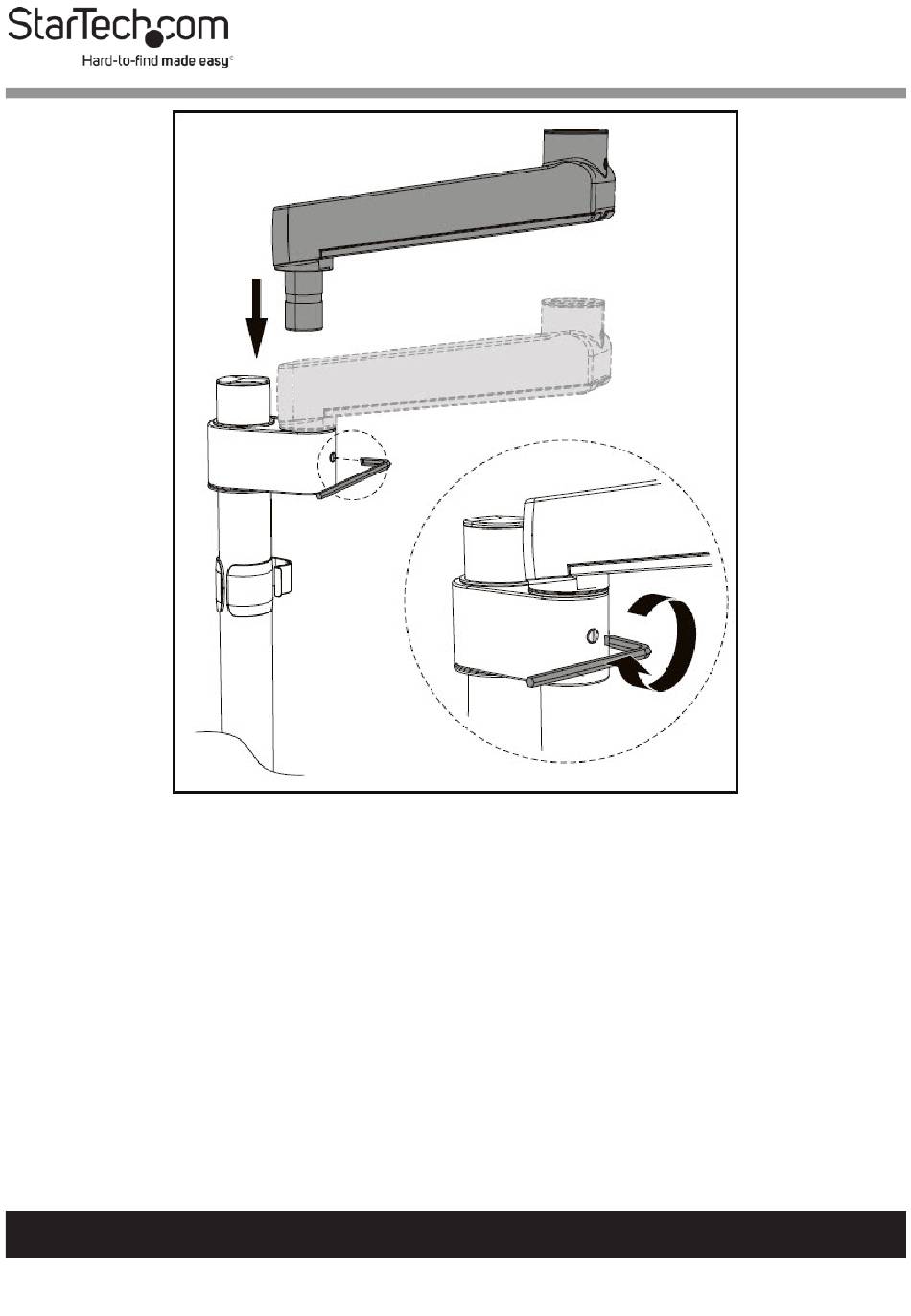

Align the Mounting Peg on the bottom of the Upper Arm
15.
with the Mounting Hole on the top of the Lower Arm.
Slide the Mounting Peg on the Upper Arm into the
16.
Mounting Hole on the Lower Arm.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Installing the Lower Arm
22
