S IP A
ET THE DDRESS AND
2.2b Use the Embedded Web Server
PREREQUISITE: You must know the present IP address of the SMD23E2 or SMD24E2. The factory
default address is 192.168.0.50.
PREREQUISITE: Task 1.6:
SMD24E2.
PREREQUISITE: Tasks: 1.8 and 1.9, 1.10, or 1.11, starting on page 91. You must attach your SMD23E2 or
SMD24E2 to your computer.
PREREQUISITE: Optional Task A:
faces on your computer must be on the same subnet before you can communicate with an SMD23E2 or
SMD24E2.
2.2b.1 Disconnect the SMD23E2 or SMD24E2 from the host controller and cycle power to the unit
This ensures that the unit does not have any open connections to the host controller.
2.2b.2 Start your web browser and connect to the SMD23E2 or SMD24E2
The internal HTML pages should work with any browser. Once your web browser is running, enter the pres-
ent IP address of the SMD23E2 or SMD24E2 into the address bar. The default address is 192.168.0.50. The
unit will respond with the following page.
96
P
ROTOCOL
Power Wiring found on page 90. You must be able to power the SMD23E2 or
Configure Your Network

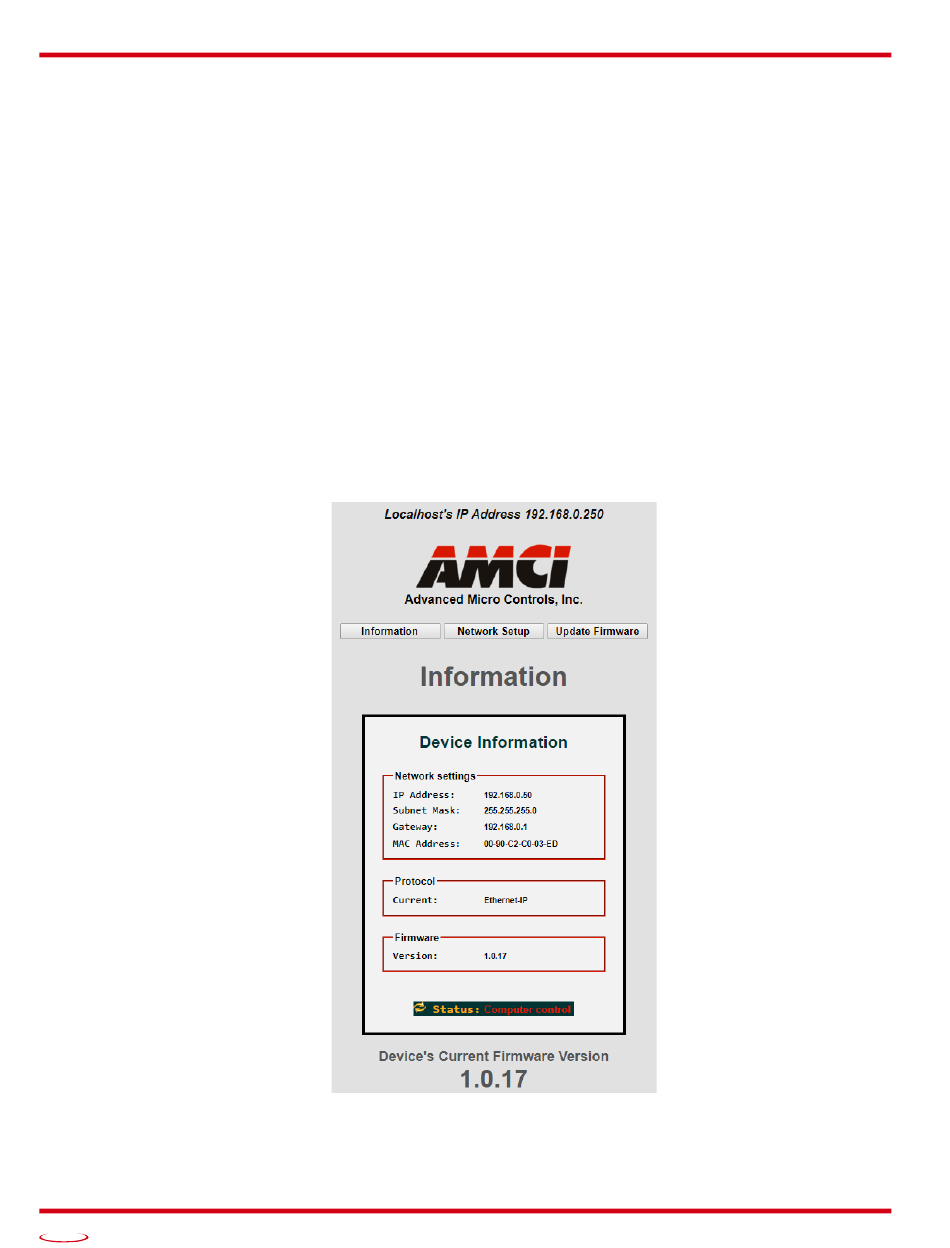

Figure T2.1 SMD23E2 or SMD24E2 Information Webpage
SMD23E2 and SMD24E2 User's Manual
Interfaces. (page 129) The network inter-
