Output Data Format

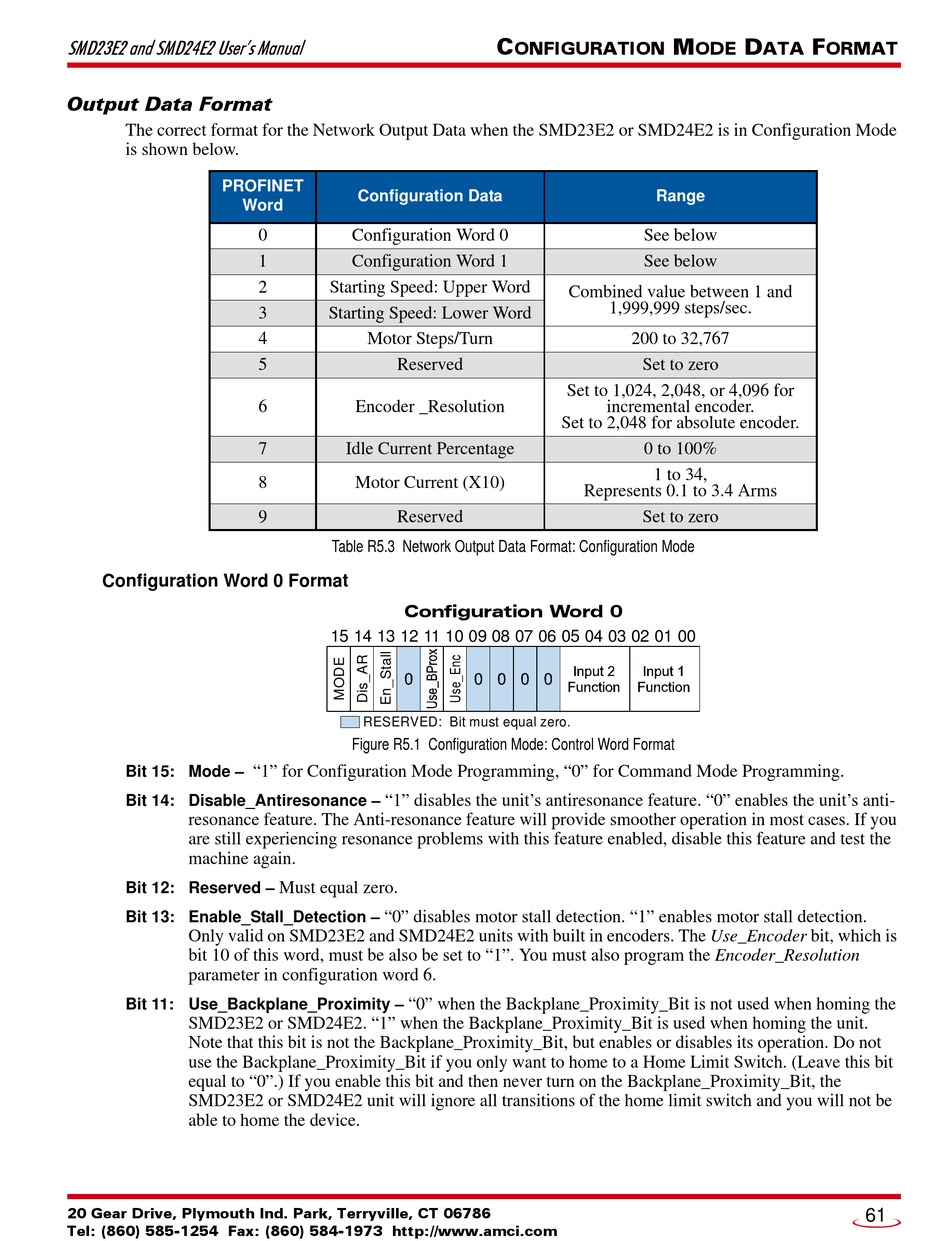

The correct format for the Network Output Data when the SMD23E2 or SMD24E2 is in Configuration Mode
is shown below.
PROFINET
Word

Configuration Word 0 Format

Bit 15: Mode –
Bit 14: Disable_Antiresonance –
resonance feature. The Anti-resonance feature will provide smoother operation in most cases. If you
are still experiencing resonance problems with this feature enabled, disable this feature and test the
machine again.
Bit 12: Reserved –
Bit 13: Enable_Stall_Detection –
Only valid on SMD23E2 and SMD24E2 units with built in encoders. The Use_Encoder bit, which is
bit 10 of this word, must be also be set to "1". You must also program the Encoder_Resolution
parameter in configuration word 6.
Bit 11: Use_Backplane_Proximity –
SMD23E2 or SMD24E2. "1" when the Backplane_Proximity_Bit is used when homing the unit.
Note that this bit is not the Backplane_Proximity_Bit, but enables or disables its operation. Do not
use the Backplane_Proximity_Bit if you only want to home to a Home Limit Switch. (Leave this bit
equal to "0".) If you enable this bit and then never turn on the Backplane_Proximity_Bit, the
SMD23E2 or SMD24E2 unit will ignore all transitions of the home limit switch and you will not be
able to home the device.
