SMD23E2 and SMD24E2 User's Manual

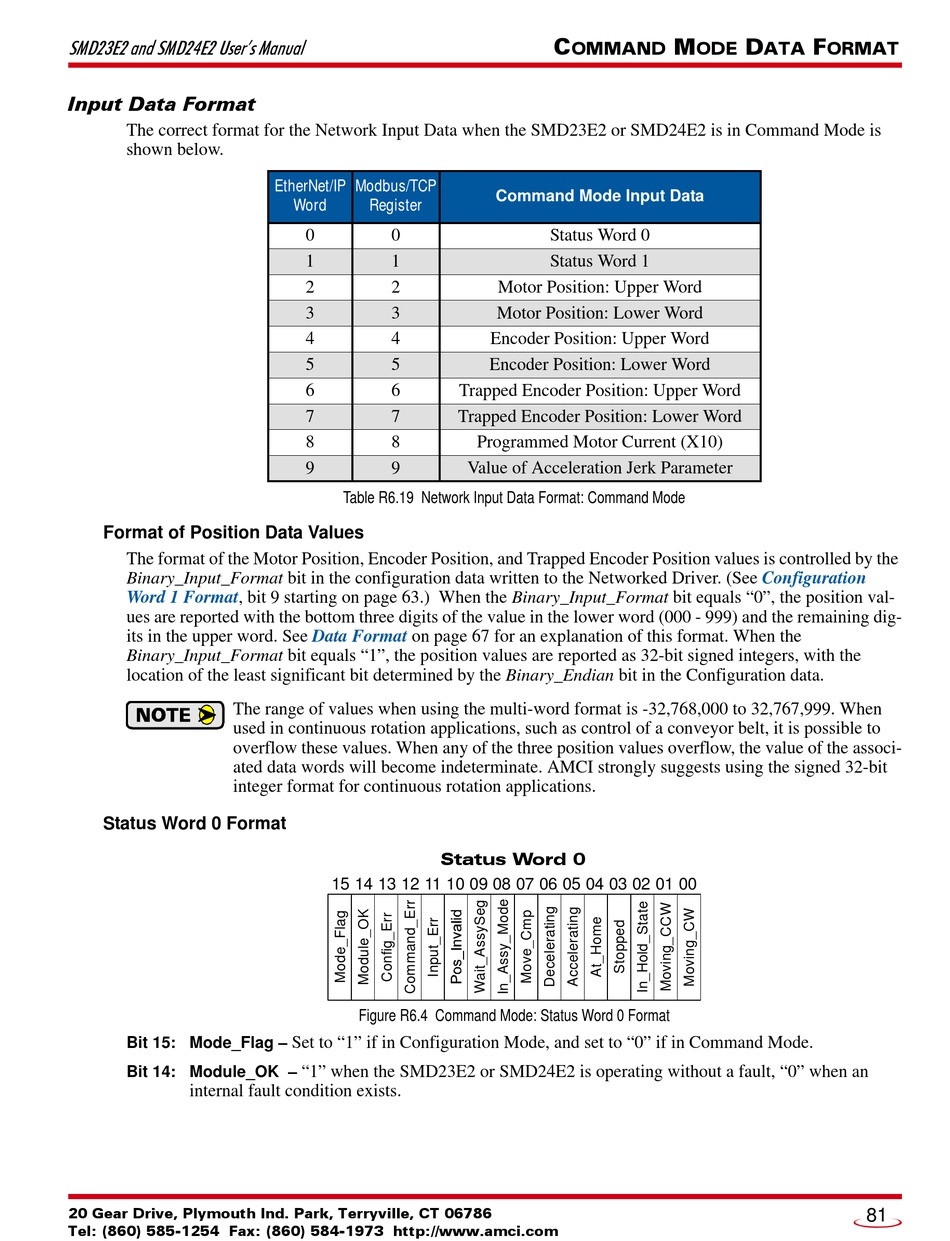

Input Data Format

The correct format for the Network Input Data when the SMD23E2 or SMD24E2 is in Command Mode is
shown below.

Format of Position Data Values

The format of the Motor Position, Encoder Position, and Trapped Encoder Position values is controlled by the
Binary_Input_Format bit in the configuration data written to the Networked Driver. (See
Word 1 Format, bit 9 starting on page 63.) When the Binary_Input_Format bit equals "0", the position val-
ues are reported with the bottom three digits of the value in the lower word (000 - 999) and the remaining dig-
its in the upper word. See
Binary_Input_Format bit equals "1", the position values are reported as 32-bit signed integers, with the 
location of the least significant bit determined by the Binary_Endian bit in the Configuration data.
The range of values when using the multi-word format is -32,768,000 to 32,767,999. When
used in continuous rotation applications, such as control of a conveyor belt, it is possible to
overflow these values. When any of the three position values overflow, the value of the associ-
ated data words will become indeterminate. AMCI strongly suggests using the signed 32-bit
integer format for continuous rotation applications.

Status Word 0 Format

Bit 15: Mode_Flag –
Bit 14: Module_OK –
internal fault condition exists.
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
EtherNet/IP Modbus/TCP
Word Register
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
Table R6.19 Network Input Data Format: Command Mode
Data Format on page 67 for an explanation of this format. When the
Status Word 0
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
Figure R6.4 Command Mode: Status Word 0 Format
Set to "1" if in Configuration Mode, and set to "0" if in Command Mode.
"1" when the SMD23E2 or SMD24E2 is operating without a fault, "0" when an
C
OMMAND
Command Mode Input Data
Status Word 0
Status Word 1
Motor Position: Upper Word
Motor Position: Lower Word
Encoder Position: Upper Word
Encoder Position: Lower Word
Trapped Encoder Position: Upper Word
Trapped Encoder Position: Lower Word
Programmed Motor Current (X10)
Value of Acceleration Jerk Parameter
M D F
ODE ATA ORMAT
Configuration
81
